30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
Specifications
Welder Holder :
Yes
Supply Ability :
500 units/month
Max Eccentricity Distance :
150mm
Model Number :
ZHB-30
Tilt Angle :
0-90
Table Diameter :
12 Inches
MOQ :
1
Delivery Time :
10-20 work days
Filt Mode Manual :
Manual
Payment Terms :
D/A,L/C,D/P,T/T
Vertical Loading Weight :
15kg
Price :
500-1000USD
Voltage :
110V/220V
Certification :
CE
Model NO. :
ZHB-30
Brand Name :
LEMAR
Function :
Pipe Flange Welding Turning Table
Place of Origin :
WUXI
Packaging Details :
38.00cm * 37.00cm * 38.00cm
Description
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding

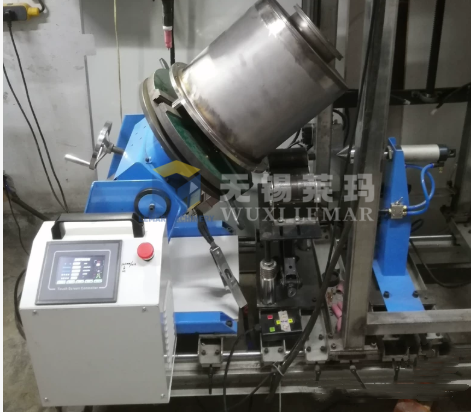

This bench rotary welding positioner is engineered for workpieces under 30kg horizontal load. With variable frequency drive and self-locking tilt design, it holds weld seams horizontal for stable MIG/TIG welding. Reinforced frame cuts vibration and removes risks brought by manual part flipping.

Technical Specifications
Item Specification
Model ZHB-30 Welding Positioner
Max Horizontal Load 30kg
Rotation Speed 0.1-12rpm VFD stepless
Tilt Angle 0°-90° self-locking
Standard Table Size Φ310mm customizable
Rotation Motor 0.37kW
Tilt Mode Manual hand wheel, electric optional
Control Type Cabinet + handheld remote
Protection Grade IP54
Certificates CE, ISO9001
Factory Test 12-hour full-load aging test
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
Core Advantages
  • Worm gear self-locking tilting structure supports 0°-90° full-angle positioning, firmly fixing flanges, elbows and tank heads without repeated clamping
  • 0.1-12rpm VFD stepless rotation with digital display outputs stable torque, smooth low-speed operation for consistent welding seams
  • Thick cast iron turntable and stress-relief reinforced steel base eliminate vibration, stable long-term running under full 30kg load

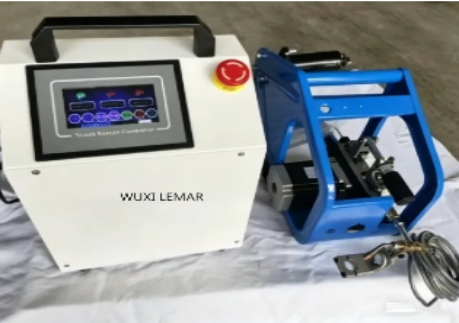

  • Dual control system: independent control cabinet + handheld remote, foot switch available as optional accessory
  • Complete safety configuration: overload, overcurrent & emergency stop protection, IP54 dust & splash-proof electrical cabinet adapted to harsh welding workshops

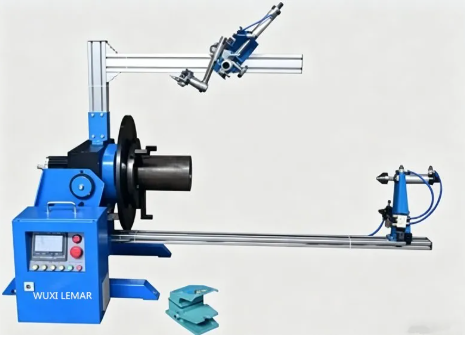

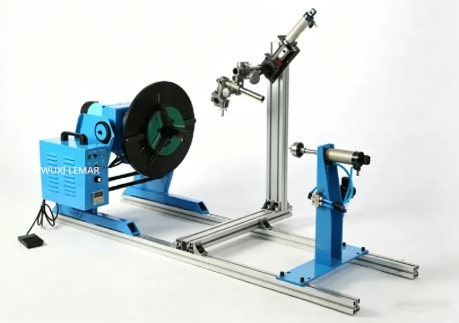

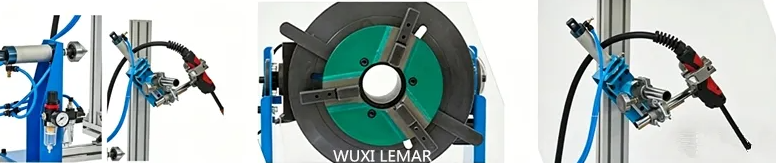

  • Multiple custom upgrades supported: three-jaw chuck, welding torch stand, wireless remote, electric tilting function
  • All machines undergo 12-hour full-load aging test before delivery to guarantee stable quality
Application Scope

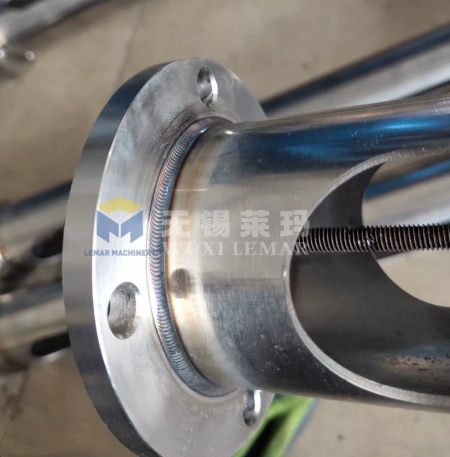

  • Circular girth welding for standard pipe flanges, thick elbows and mini pressure vessel heads

  • Circular seam machining for medium valve bodies, hydraulic connectors and mechanical hardware parts

  • Polishing, grinding and surfacing overlay welding for disc-shaped metal workpieces

  • Processing small hydraulic cylinder barrels and automobile exhaust pipe fittings
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
Production & Quality Inspection Standard

Cast iron turntable and base undergo annealing to eliminate deformation risk. Top brand electric parts ensure 24-hour stable running. Every unit gets full function inspection and mandatory aging test to meet international CE safety norms.

30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
Product Packaging
30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding 30kg Bench Rotary Welding Positioner for Pipe Flange & Tank Head Girth Welding
Frequently Asked Questions
Q: What workpieces suit this 30kg positioner?
A: Medium metal parts within 30kg horizontal weight, including flanges, tank heads, valve bodies and pipe fittings.
Q: Can I install three-jaw chuck and torch stand?
A: Yes, custom fixtures and auxiliary holders can be matched as your demand.
Q: Welding machine linkage available?
A: Synchronous linkage control function can be customized for automatic welding lines.
