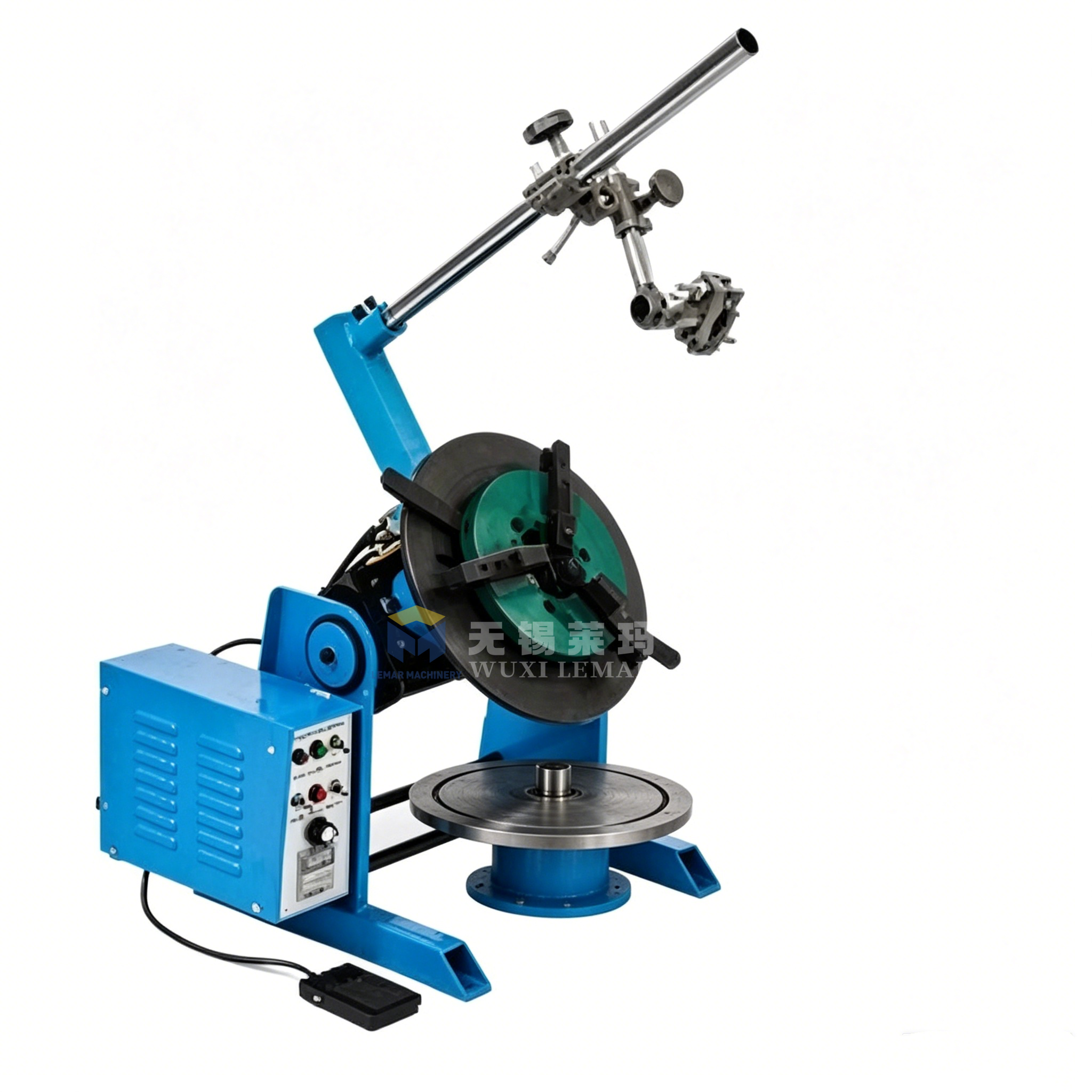

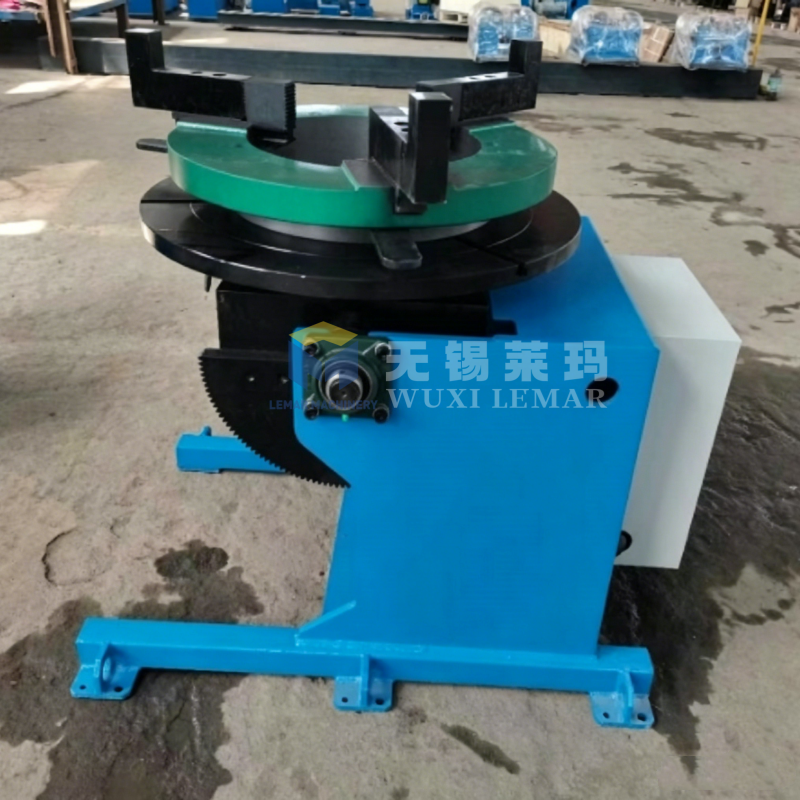

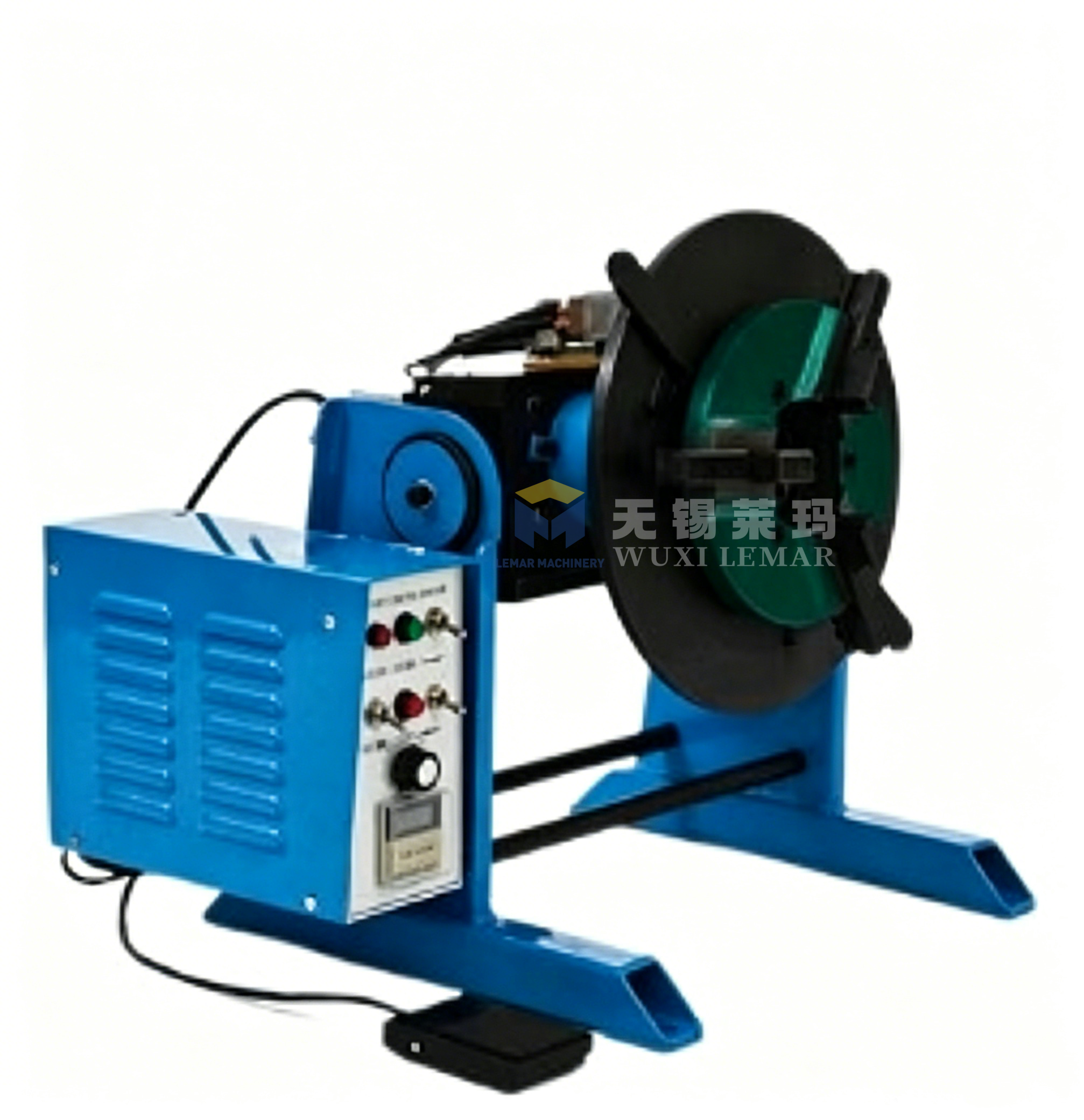

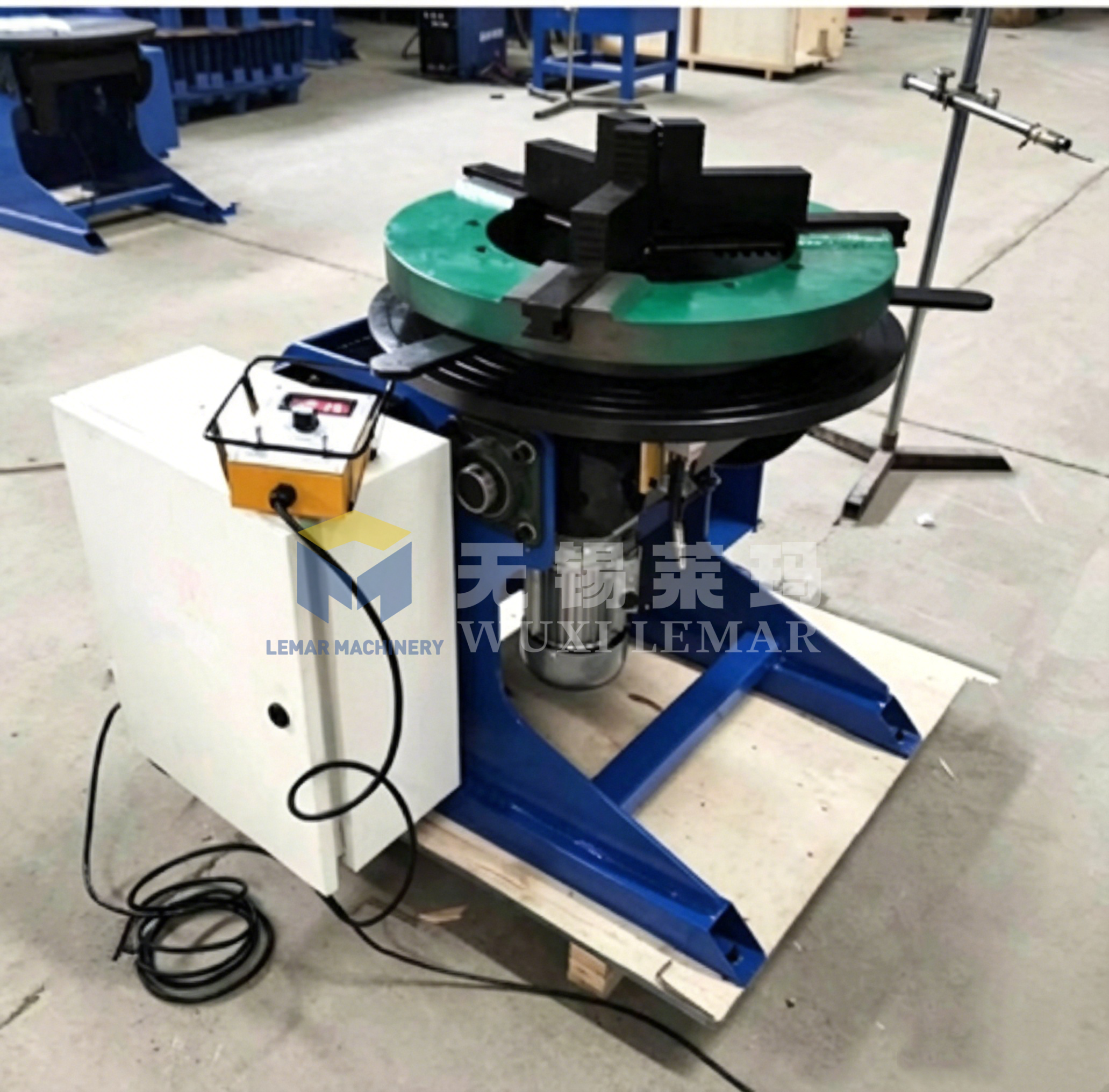

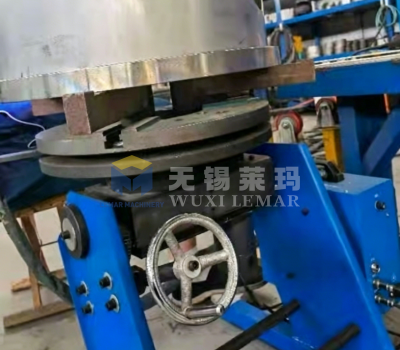

300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Specifications
Supply Ability :
500 units/month
Max Loading Weight :
300kg(Can Customized)
Model Number :
BWJ-3
Rotaion Speed :
0.1-1rpm
Payment Terms :
D/A,L/C,D/P,T/T
Control Mode :
Normal or CNC
Price :
500-1000USD
Function :
Pipe Flange Welding Turning Table
Certification :
CE
Max Eccentricity Distance :
150mm
MOQ :
1
Delivery Time :
10-20 work days
Voltage :
110V/220V
Turning Table Rotation Speed :
0.1-1 Rpm
Brand Name :
LEMAR
Model NO. :
BWJ-03
Place of Origin :
WUXI
Tilting Angle :
0-135°

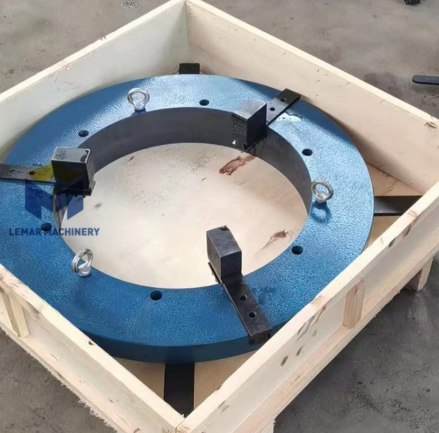

Packaging Details :
73.00cm * 76.00cm * 80.00cm
Description
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Product Overview
  • This 300KG light-duty welding positioner is compact mini welding auxiliary equipment, designed for tiny stainless steel workpieces, pipe fittings, sanitary accessories and small pressure vessel nozzles.
  • It realizes full 360° horizontal rotation and 0-90° hydraulic tilting, turning workpieces into flat welding position easily to boost weld quality and reduce labor fatigue.
  • Small overall size occupies little workshop space, perfect for small fabrication shops, stainless steel processing studios and food machinery component manufacturers.
  • Stepless frequency conversion speed control delivers smooth low-speed rotation without vibration for thin plate welding.
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Technical Specifications
Item Specification
Model HK-0.3T
Rated Loading Capacity 300kg
Worktable Diameter 600mm
Horizontal Rotation Range 0-360° continuous rotation
Tilting Angle 0-90° hydraulic self-locking tilt
Rotation Speed 0.1-1 r/min, frequency stepless adjustment
Standard Power Supply 3-phase 380V
Custom Power Supply Single-phase 220V customizable

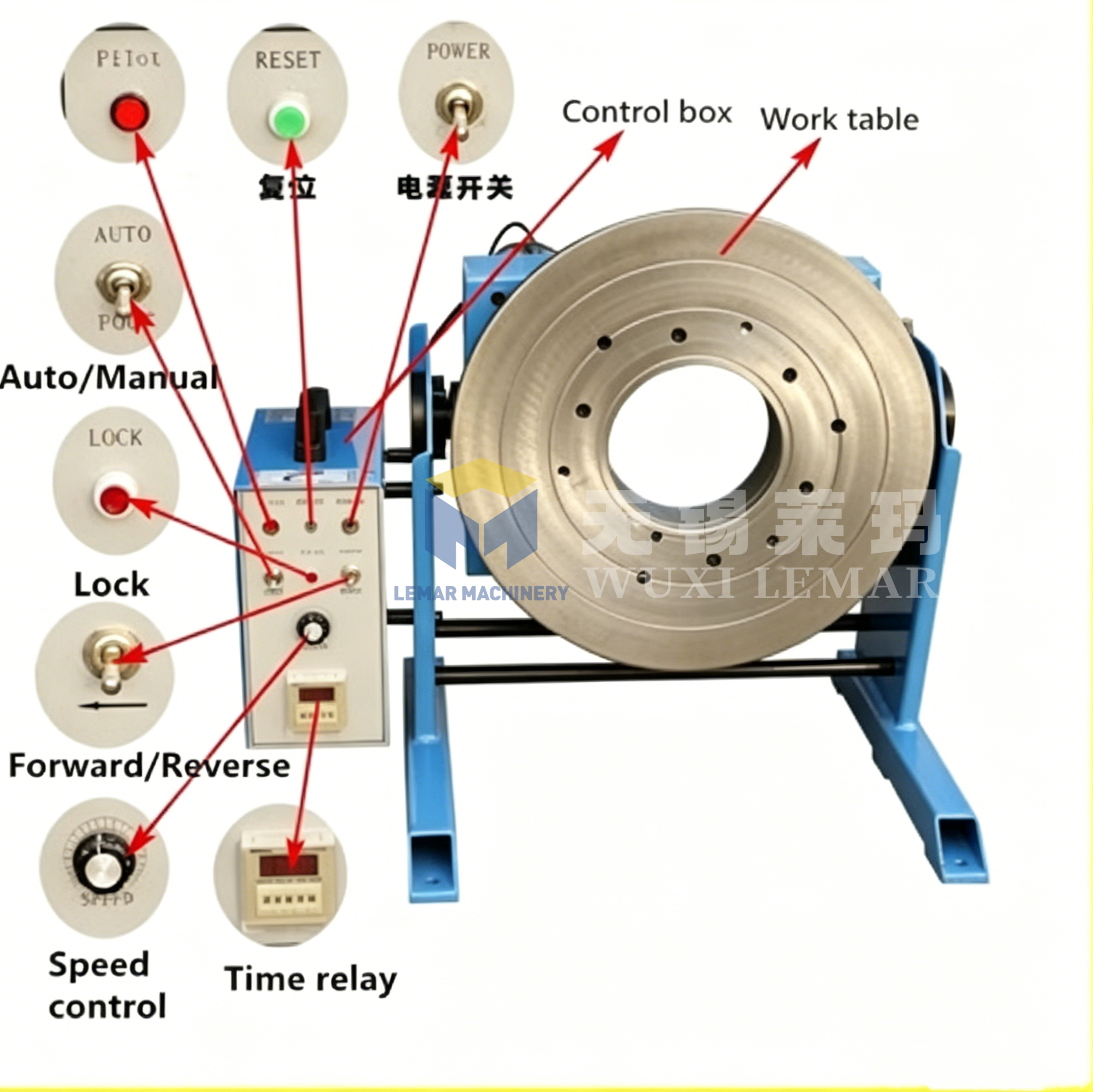

Standard Control Device Hand-held control box
Optional Accessory Foot pedal switch
Continuous Working Capacity 24-hour non-stop operation
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Application Scope
  • Sanitary stainless pipe fittings, elbows, flanges and joints
  • Small tank nozzles, miniature reaction vessel accessories
  • Food & beverage machinery small metal components
  • Hardware parts, valve bodies and light engineering workpieces
  • Mini water tank and small stainless cylinder welding
  • Popular among small workshops in Spain, Portugal, Southeast Asia
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Factory Advantages
  1. Professional welding equipment manufacturer with independent machining and assembly workshop
  2. All 300kg positioners pass strict load test and CE safety certification
  3. Customization available for table size, special voltage and dedicated fixtures
  4. Direct factory selling without middlemen, cost-effective price
  5. Provide remote online technical guidance and long-term after-sales support
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Matching Supporting Equipment
  • Mini longitudinal seam welder: matched to produce small stainless steel cylinders
  • Small welding rotator: cooperate for girth welding of tiny storage tanks

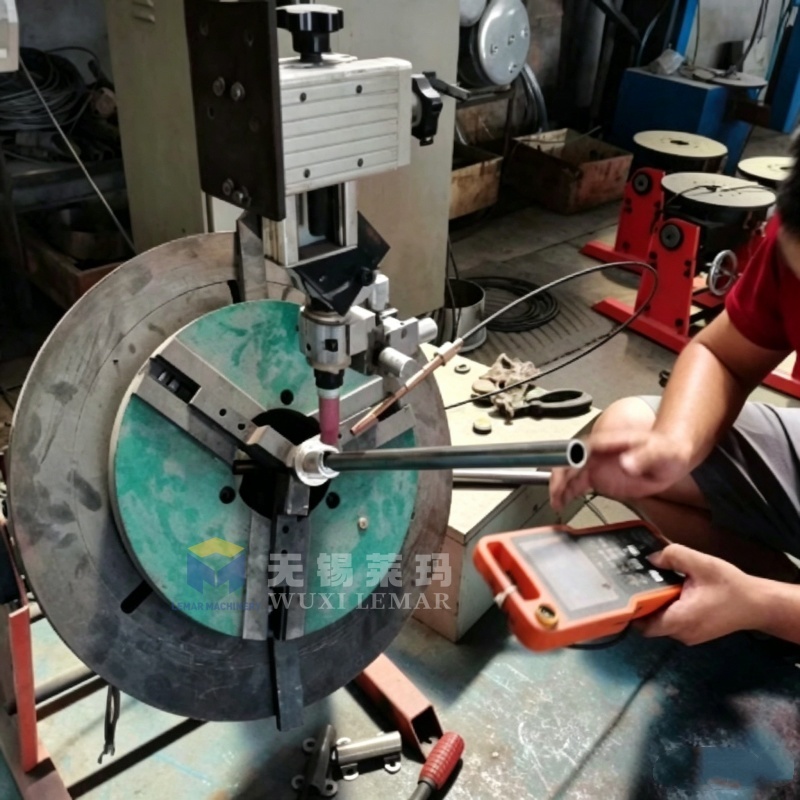

  • Light torch holder: fixed on turntable for automatic circular welding
  • Portable welding fume extractor: clean smoke for small enclosed workshops
300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding300kg Mini Welding Positioner Small Rotary Tilt Table for Pipe Sanitary Fitting Welding
Frequently Asked Questions
Q1: Can it run with seriously unbalanced workpieces?
A: Keep workpiece gravity near table center; heavy unbalance will cause violent shaking.
Q2: Can I install custom clamping fixtures on the turntable?
A: Yes, the table reserves multi-group standard mounting holes for fixture installation.
Q3: Is foot pedal included in standard package?
A: Foot pedal is optional extra; standard configuration only has hand control box.
Q4: Will the tilt angle slip during long welding work?
A: Hydraulic self-locking system keeps fixed angle without slipping.
Q5: Do I need anchor bolts to fix the machine on ground?
A: No anchor bolts required for flat and solid ground surface.
