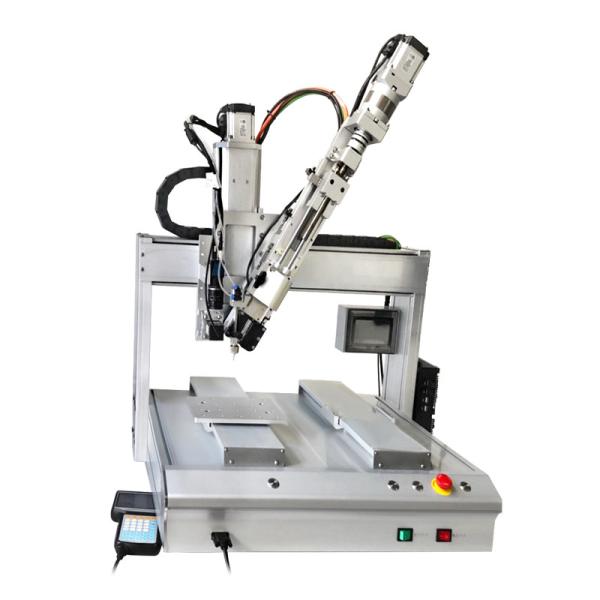

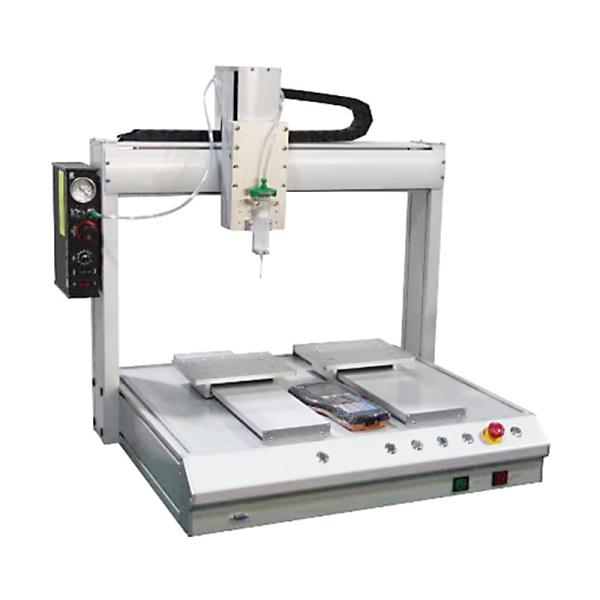

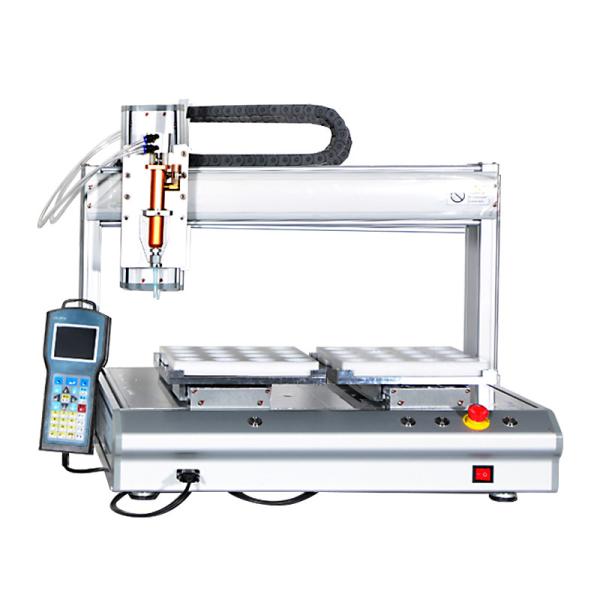

SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone
Specifications
Brand Name :
Waterun
Model Number :
DJ-5331
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD2500 ~ 3500
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
500 units per month
Delivery Time :
3-10 days
Operating Range :
X：500*Y1：300 *Y2: 300*Z：100mm
Movement Speed :
0.1~800mm/sec
Accuracy :
+-0.02mm
Editing Mode :
Teaching Pendant
Dimensions(mm) :
450 x 450 x 520mm (W x D x H)
Weight :
60kg
Description

SMT SMD Assembly Desktop Automatic Glue Dispensing Robot Silicone Dispensing Machine


Application:

It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.


Product Features:

1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.)

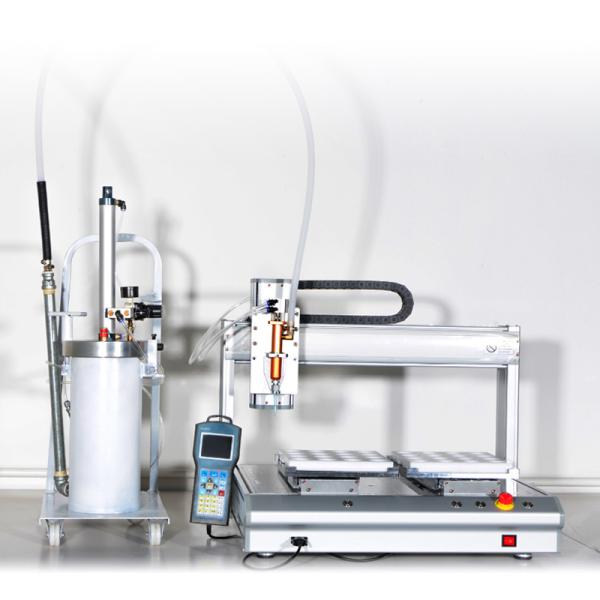

SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone

Parameters:

Model

DJ-5331
Number of Controlled axes
4Axis
Effective Travel
X Axis
500mm
2Y Axis
300mm
Z Axis
100mm
Transmission mode
Double-track timing belt
Motor System
Precision Step Motor
Top speed
800mm/sec
Repeat accuracy
±0.02mm
Maximum load
8kg / 4kg / 4kg /3kg (X-Y1-Y2-Z)
File storage space
999 Programs
Size
W
450mm
D
450mm
H
520mm
Weight

60kg

Competitive Advantage:


SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone

SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone

SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone

SMT SMD Automatic Glue Dispensing Machine Desktop For Silicone

We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
