Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V
Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V
Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V
Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V
Specifications
Brand Name :
Waterun
Model Number :
DJ-200P/DJ-200P-R
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD2500 ~ 3500
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
500 units per month
Delivery Time :
3-10 days
Operating Range :
200mm x 200mm x 80mm (X/Y/Z )
Movement Speed :
0.1~800mm/sec
Accuracy :
+-0.02mm
Editing Mode :
Teaching Pendant
Voltage :
110V/220V
Weight :
60kg
Description

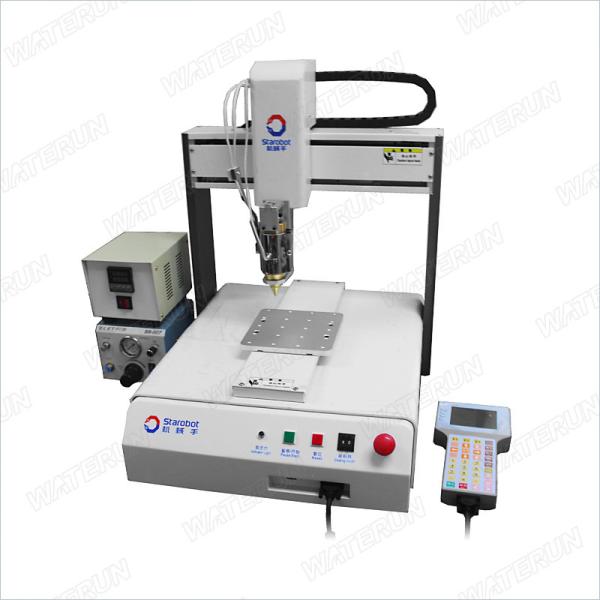

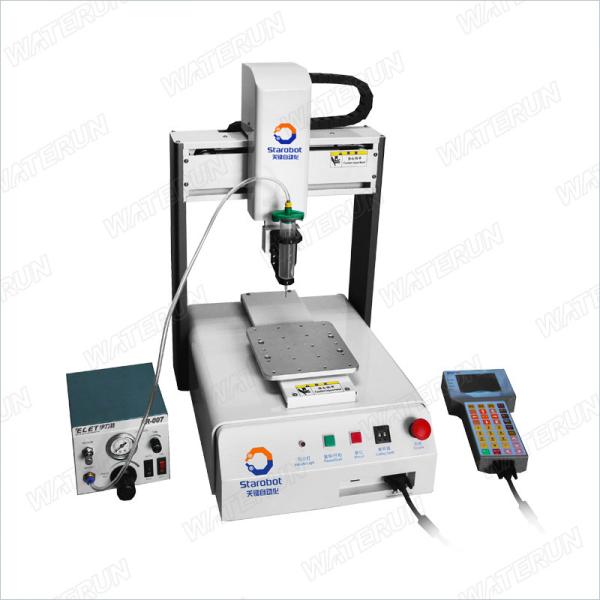

Eletrical Automatic Glue Dispensing Robot, Adhesive Dispensing Machine


Product Features:

1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.)

DJ-200P-R

Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V

DJ-200P

Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V

Description:

1. Replace the human labor and save labor cost

2. Simple and convenient operation, high speed and precise control

3. Realize the precise dispensing by the high-precision motor

4. High performance Linear structure platform with nice appearance

Model DJ-200P/DJ-200P-R
Product Name
Glue Dispensing Robot
Voltage
110V /220V
Drive Mode
3-Axis precision step motor
Operating Range
200mm x 200mm x80mm ( x y z)
Repeatability Accuracy
+ /- 0.02 ( x y z )
Minimum Analysis
0.01mm
Program Capacity
Max. 255 Programs
Weight
about 60kgs

Competitive Advantage:


Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V
Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V

Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V

Electrical Automatic Glue Dispensing Machine Adhesive 110V 220V

We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
