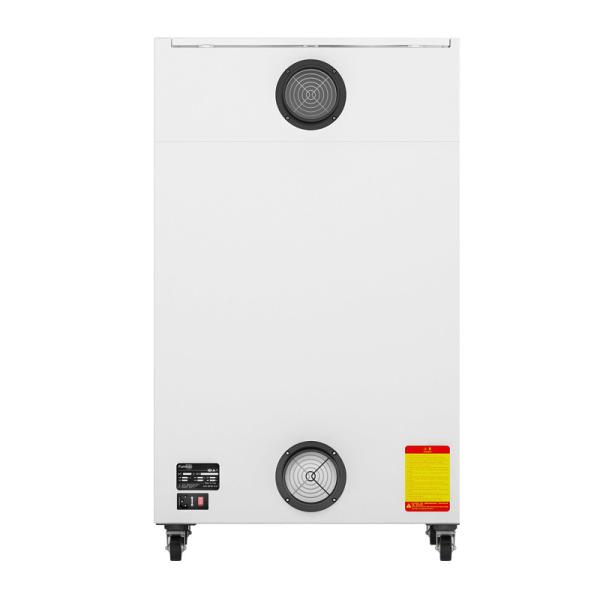

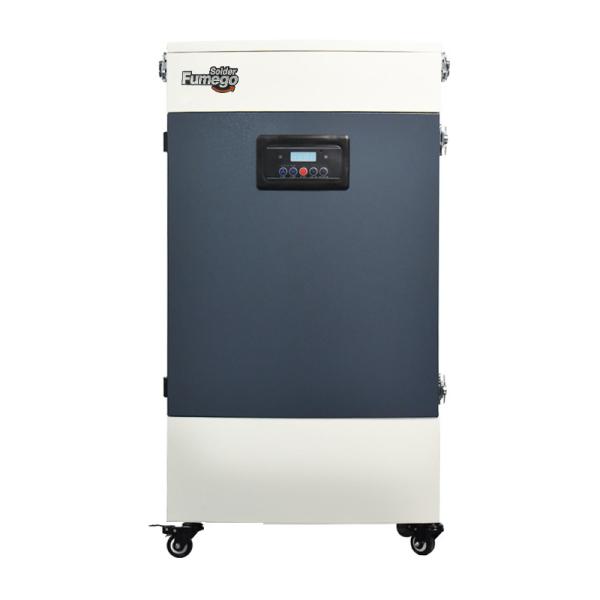

Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor
Specifications
Brand Name :
Waterun
Model Number :
XL-700
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD1000 ~ 1600
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
1000 units per month
Delivery Time :
3-10 days
Packaging Details :
Laser Cutter Fume Extractor 67 x 58 x 124cm 90kgs in Pallet
Name :
Cutting Machine Fume Extractor
Filters :
7 Layers
Systemic Flow :
750m3/h
Filtering Efficiency :
99.97% @0.3 micron
Power :
700W
Noise :
63dB
Dimensions(mm) :
550 x 440 x 1060 mm
Weight :
70kgs
Description

XL-700 Laser Fume Extractor For Laser Marking/Laser Cutting/Laser Engravers


Description:

This is the 7th generation fume extractor with constant airflow, vector control technology and quick filter replacement. Used DC brush-less motor which is high quality,long life span,high negative pressure and large flow.Multi-layers filters design ensure the best filtering effect. Metal frame body structure, durable in use. Microcomputer chip control,digital display and with the remote control, you can operate it within 5 meters.

Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor


Technical Datas:

Model XS700
Power 700W
Noise <63 dB
Systemic Flow 750m3/h
Filter Layer 7
Filter Size

1st Layer Fire Prevention Mesh

2nd Layer Pre-filter Cotton 100mm

3~4th Layer PP Filter 50mm

5th Layers Glass Fiber Filter 100mm

6~7th Layers Active Carbon Filter 50mm
Gross Weight 13.5kg
Cabinet Dimensions 550 x 440 x 1035mm
Package Dimensions Body:64 x 53 x 125cm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Remote Control Included
Duct Dimension Diameter 100mm x Length 2 meters
Packing List Main Unit: 1 piece
Power Cord: 1 piece
Tube Kits: 1 set
Operation Instruction: 1 piece
One Set Filters inside machine

Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless MotorMultipurpose Laser Cutter Fume Extractor 750m3/H Brushless MotorMultipurpose Laser Cutter Fume Extractor 750m3/H Brushless MotorMultipurpose Laser Cutter Fume Extractor 750m3/H Brushless MotorMultipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor

Features:

1.With filter observation window, so you can view the filter condition at any time;
2.Air inlet diversion design, increases the purification efficiency by 80%;
3.Intelligent digital display, with remote control;
4. Brushless DC motor with stable performance, can work for 40K hours consecutively.
5.Sound and light alarm to remind you to replace filters.

Additional Informations:

Available Filter Efficiencies

Pre Filter

For remove big particles of above 50 microns

PP Filter/Glass Fiber Filter

For particles above 0.3 microns, its filtering efficiency meet 99.97%.

Active Carbon Filter

For filtering hazardous gases with the filtering efficiency as high as above 95%;
Filter Replacement Period

Pr-Filter: 1 week to 2 month

PP Filter/Glass Fiber Filter: 3-6 months

Active Carbon Filter: 3-6 months

However, it can be adjusted as per the exact pollutants generated in different Environment;

Applications:

This product is suitable for places involved in air pollution like smoke, peculiar smell, dust, poisonous and harmful gas,during the process of soldering, laser marking & carving,printing etc.

About Us:

Established in 2003, Waterun Technology is located in Shenzhen, China. We are a leading manufacturer & exporter of Fume Extractors,Soldering Robots,Screw Fastening Robots, Glue Dispensing Robots, ESD & Cleanroom products, Tools & Instruments for electronic assembly industry.

We own several brands: WATERUN, NEW OXYGEN, FUME GO, QUBO, etc.Waterun owns two factories and one business & logistics center and nearly 100 employees.Due to the good quality and good pricing, our products are getting popular in many countries in the world.

Our Quality:

Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.

Multipurpose Laser Cutter Fume Extractor 750m3/H Brushless Motor

OEM & ODM Services:

We can offer OEM & ODM services. Welcome to talk with us in details.
