330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters
Specifications
Brand Name :
Waterun
Model Number :
XS330
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD500 ~ 700
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
1000 units per month
Delivery Time :
3-10 days
Packaging Details :
mobile fume extractor 53 x 45 x 78cm 38kgs Heat resistance Tube 42 X 41 X 19 cm 2.2kgs
Name :
dust and fume extraction
Filters :
5 layers
Systemic Flow :
450m3/hour
Filtering Efficiency :
0.3μm 99.97%
Power :
330W
Noise :
60dB
Dimensions(mm) :
425 x 315 x 700 mm
Warranty :
1 Year
Description

Industrial Fume Exhaust Extractor Smoke Remover Laser Fume Extraction Systems​


Description:

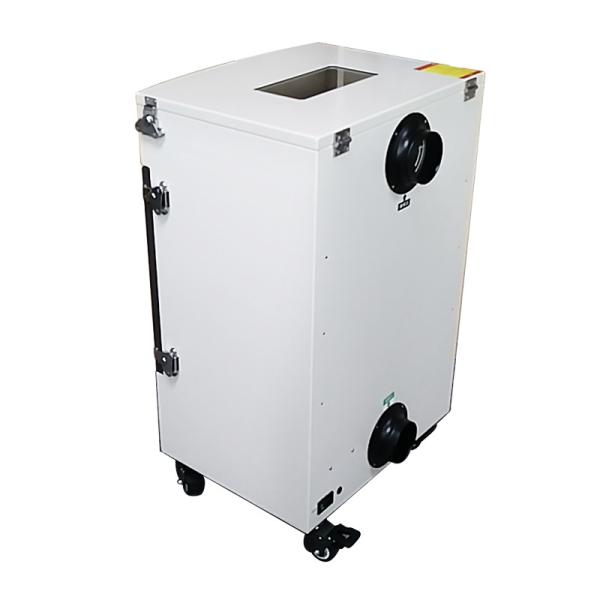

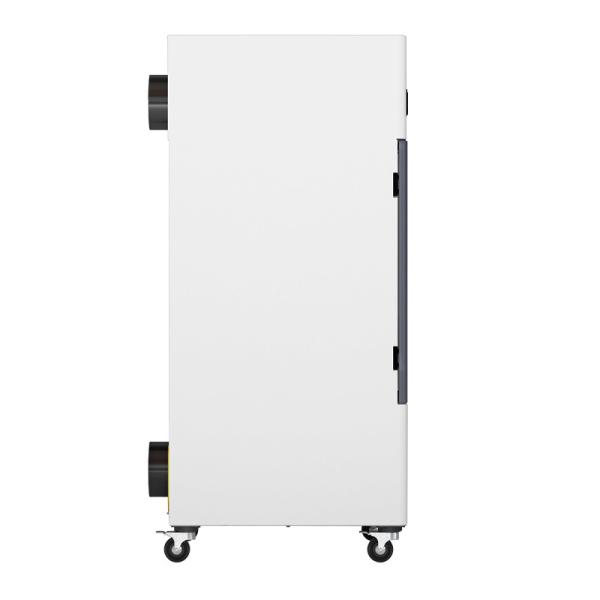

The 330W DC motor welding fume extractor creates a powerful 450m3/h airflow to pull in exhaust and purify air during the cutting and engraving machines.With 5 stages filter layers (Cotton,2 x Hepa,2 x active carbon) thorough purification and release clean breathable air.The built in 100mm port accommodates many smaller devices, while the included adapter allows it to work with 150mm laser machines. Moving on 4 lockable caster wheels, this smoke purifier is highly mobile to move between your shop's workstations as needed.

330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters


Technical Datas:

Model XS330 XS450
Power 330W 450W
Noise <60 dB <60 dB
Systemic Flow 450 m3/h 700m3/h
Filter Layer 8 7
Filter Size

1st Layer Pre-filter 100mm

2nd Layer PP Filter 50mm

3th Layer Glass Filber Filter 100mm

5-6th Layers Active Carbon Filter 50mm

1st Layer Fire Prevention Mesh

2nd Layer Pre-filter Cotton 28mm

3~4th Layer PP Filter 50mm

5th Layers Glass Fiber Filter 50mm

6~8th Layers Active Carbon Filter 50mm
Gross Weight 38 kg 60 kg
Cabinet Dimensions 425 x 315 x 700mm 550 x 440 x 885mm
Package Dimensions Body:53 x 45 x 78 cm Body::70 x 57 x 113cm
Filtering Efficiency 0.3um 99.97%
Electrical 110V / 220V
Remote Control Included
Duct Dimension Diameter 100mm x Length 2 meters
Packing List Main Unit: 1 piece
Power Cord: 1 piece
Tube Kits: 1 set
Operation Instruction: 1 piece
One Set Filters inside machine

Features:

1. Metal body structure, strong and durable;

2. With digital display and remote control;

3. Noise reduction design achieves quiet operation;
4. Multi-filter design ensures thorough purification;
5. Sound and light alarm for filter clogging;

6. Brushless DC motor: stable performance, can work for 40K hours consecutively;


Applications:


These laser fume extractors are widely used in manual soldering of multi-operators; SMT machines, reflow soldering, wave soldering, laser cutting, laser marking, laser engraving; electric welding, argon arc welding, plasma cutting.

330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters

Additional Informations:

Available Filter Efficiencies

Pre Filter Cotton

For filter big particles of above 50 microns

HEPA Filter

For particles above 0.3 microns filtering efficiency 99.97%.

Active Carbon Filter

For filtering hazardous gases filtering efficiency above 95%;
Filter Replacement Period

Pr-Filter cotton: 1 week to 1 month

Hepa Filter: 2-3 months

Active Carbon Filter: 3-6 months

However, it can be adjusted as per the exact pollutants generated in different Environment;

About Us:

Established in 2003, Waterun Technology is located in Shenzhen, China. We are a leading manufacturer & exporter of Fume Extractors,Soldering Robots,Screw Fastening Robots, Glue Dispensing Robots, ESD & Cleanroom products, Tools & Instruments for electronic assembly industry.

We own several brands: WATERUN, NEW OXYGEN, FUME GO, QUBO, etc.Waterun owns two factories and one business & logistics center and nearly 100 employees.Due to the good quality and good pricing, our products are getting popular in many countries in the world.

Our Quality:

Our products go from design to production to final product. Each working procedure is strictly controlled, we make really effective fume extractors only. The filtering efficiency of our fume extractors has reached the highest standard in the world.

330W Practical Laser Fume Extractor Multifunctional With 5 Layers Filters

OEM & ODM Services:

We can offer OEM & ODM services. Welcome to talk with us in details.
