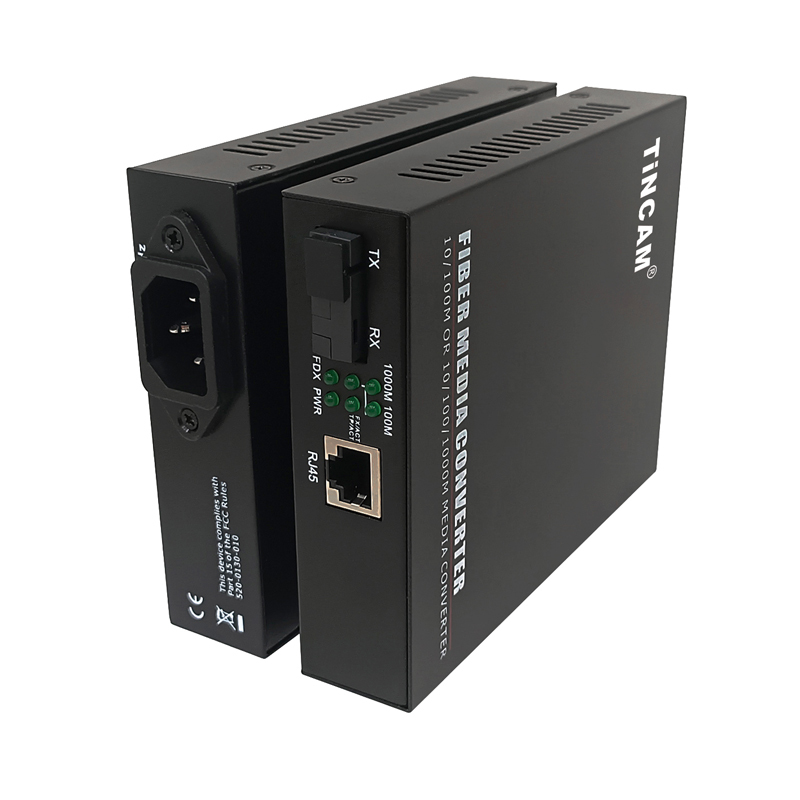

TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
TiNCAM 10/100/1000M single mode single fiber SC 20KM Internal power supply Fiber Media Converter
Specifications
Band Width :
RJ 45 Port: 10/100/1000M, Optical Port: 1.25G
LED Indicators :
1000M,100M, FX/ACT, TP/ACT, PWR,FDX
Power Consumption :
≤5W
UTP Cable :
Cat5 UTP (within 100m)
Working Environment :
Work Temp: 0℃~50℃, Storage Temp: -40℃~70℃, Humidity: 5%~90% non-condensing
Fiber Cable :
9/125μm (max distance 20-120km), 50/125,62.5/125μm (max distance 2km)
Warranty :
3 years
Power Supply :
External: 5V/2A, Internal: AC110-250V/50Hz
MTBF :
>30000 Hours
Standard Protocol :
IEEE 802.3ab, IEEE 802.3Z, IEEE 802.3X
Certification :
FCC Part 15, Class A, RoHS and CE Mark
Operation Mode :
Full /Half duplex mode, with auto-negotiation capability
Connectors :
UTP: RJ45, Fiber connector: SC/FC/ST/LC
Description

TBC-MC3612N-S20AB Fiber Media Converter

The TBC-MC3612N-S20 series is a high-performance 10/100/1000M adaptive fiber media converter. It facilitates seamless photoelectric conversion between 10Base-TX, 100Base-TX, or 1000Base-TX and 100Base-FX Ethernet, extending network reach up to 120km.

Key Benefits & Applications

  • Extended Reach: Reliable fiber optic link extension up to 120 km.
  • Robust Design: Features anti-lightning protection and stable performance.
  • Versatile Use Cases: Telecommunications, Enterprise Networks, Broadcasting & Media, Transportation Systems, Industrial Networking, and FTTH Infrastructure.

Technical Specifications

Parameter Details
Standard Protocol IEEE 802.3ab, 802.3Z, 802.3X
Band Width RJ45: 10/100/1000M, Optical: 1.25G
Operation Mode Full/Half duplex with auto-negotiation
Connectors UTP: RJ45, Fiber: SC/FC/ST/LC
LED Indicators 1000M, 100M, FX/ACT, TP/ACT, PWR, FDX
Cable Requirements UTP: Cat5 (100m); Fiber: 9/125μm (20-120km), 50/125, 62.5/125μm (2km)
Power Supply External: 5V/2A, Internal: AC110-250V/50Hz
Power Consumption ≤5W
Operating Environment Temp: 0℃~50℃, Humidity: 5%~90% non-condensing
MTBF >30000 Hours
Certification FCC Part 15 Class A, RoHS, CE Mark
Warranty 3 years
