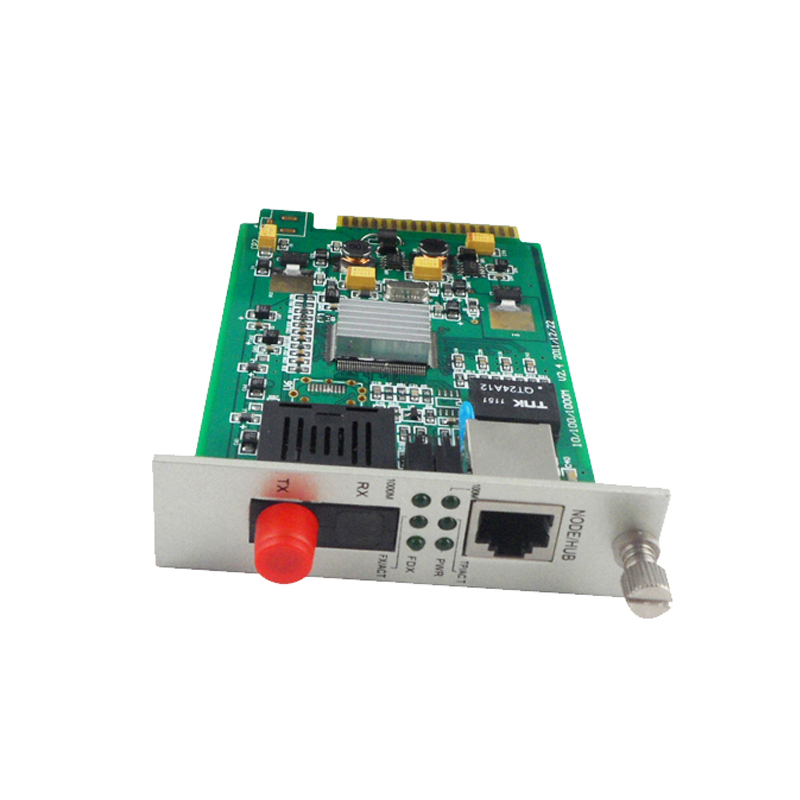

10/100/1000M single mode single fiber Card Type Fiber Media Converter
10/100/1000M single mode single fiber Card Type Fiber Media Converter
Specifications
Band Width :
RJ 45 Port: 10/100/1000M, Optical Port: 1.25G
LED Indicators :
1000M,100M,FX/ACT,TP/ACT, PWR,FDX.
Power Consumption :
≤5W
UTP Cable :
Cat5 UTP (the max distance up to 100m)
Working Environment :
Work Temperature: 0℃~50℃; Storage Temperature: -40℃~70℃; Humidity: 5%~90% non-condensing
Operation Mode :
Full /Half duplex mode, with auto-negotiation capability
Connectors :
UTP: RJ45, Fiber connector: SC/FC/ST/LC
Certification :
FCC Part 15 , Class A, RoHS and CE Mark
Standard Protocol :
IEEE 802.3, IEEE 802.3u, IEEE 802.3d,IEEE 802.3Q
Fiber Cable :
9/125,(single mode dual fiber 20 -120km); 50/125,62.5/125μm (Up to 2km)
Power Supply :
External: 5V, 2A; Internal: DC-48V, AC110-250V/50Hz
MTBF (Hours) :
>30000
Description

TBC-MC3612C-S20 Series Fiber Media Converter

10/100/1000M single mode single fiber Card Type Fiber Media Converter

The TBC-MC3612C-S20 series is a high-performance 10/100/1000M adaptive fiber media converter. It facilitates seamless photoelectric conversion between 100Base-TX/1000Base-TX and 1000Base-FX, extending Ethernet links up to 120 km. Designed for high-speed, high-bandwidth requirements, this device ensures stable, reliable performance with built-in anti-lightning protection.

  • High-Speed Connectivity: Supports 10/100/1000M adaptive Ethernet speeds.
  • Long-Distance Transmission: Extends network reach up to 120 km.
  • Reliable Design: Industrial-grade performance with anti-lightning protection.
  • Versatile Compatibility: Compliant with IEEE 802.3 standards.

Technical Specifications

Parameter Details
Standard Protocol IEEE 802.3, 802.3u, 802.3d, 802.3Q
Band Width RJ45: 10/100/1000M; Optical: 1.25G
Connectors UTP: RJ45; Fiber: SC/FC/ST/LC
Power Supply External: 5V/2A; Internal: DC-48V, AC110-250V
Power Consumption ≤5W
Working Temp 0℃ to 50℃
MTBF >30000 Hours
Certification FCC, RoHS, CE Mark
