Specifications
Model Number :
TNC-EPS4306N4
Transmission Rate :
10/100Mbps
MOQ :
1
Packaging Details :
Package:Carton Box
Uplink Ports :
2*10/100Mbps Uplink RJ45 Ports
Applications :
Security Project,Smart communities, CCTV
Payment Terms :
T/T
POE Standard :
IEEE 802.3af /at
Power Supply :
Input AC100-240V/Output DC48-52V
Supply Ability :
300,000 Pieces per Year
PoE Distance :
100 meters or 250 meters (DIP Switch Settings)
Warranty :
1year,lifetime maintenance !
Delivery Time :
5-8 work day
Total power :
48W
Dimensions :
125*115*32mm
Brand Name :
TiNCAM
Products Status :
Stock/OEM/SKD
Certification :
CE,FCC,ROHS
Switching Capacity :
1.2 Gbps
Place of Origin :
China
POE Ports :
4*10/100Mbps PoE RJ45 Ports
Description

Product Overview

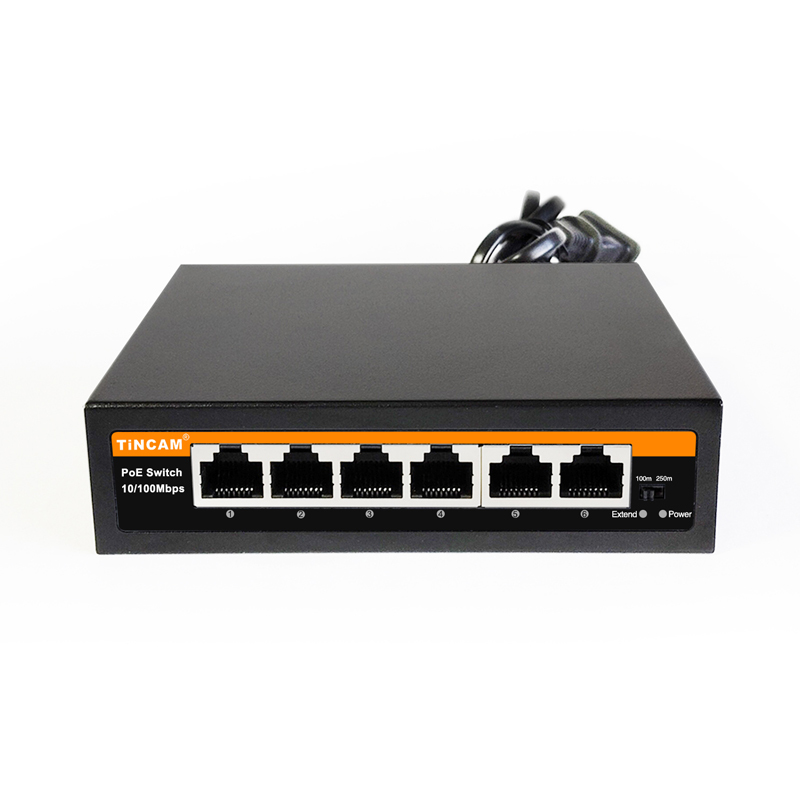

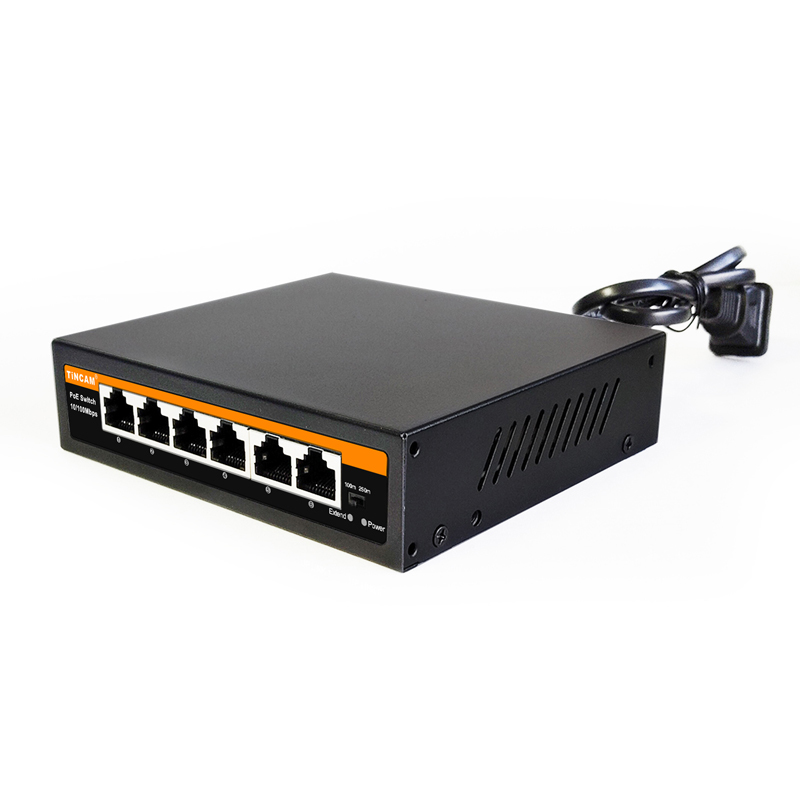

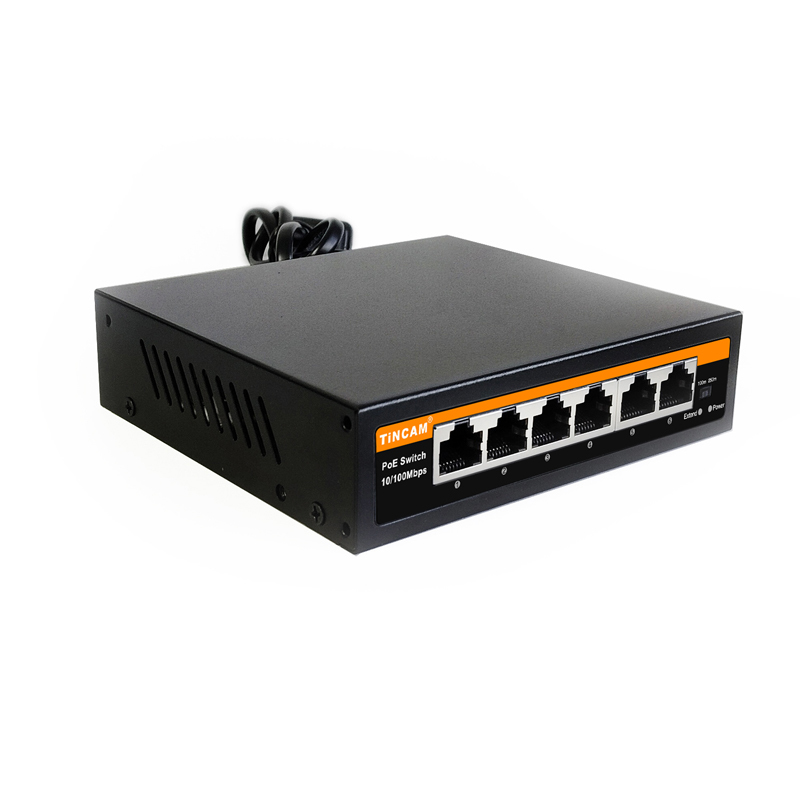

This TNC-EPS4306N4 PoE switch features 6 10/100Base-TX Ethernet ports, with ports 1 through 4 supporting the IEEE 802.3 af/at Power over Ethernet protocols. Each port can deliver up to 30W of power individually, while the device provides a total maximum PoE output of 48W. As a PoE power sourcing equipment, the switch automatically detects whether connected devices support PoE and supplies power exclusively to compliant devices, thereby effectively preventing damage to non-PoE devices.

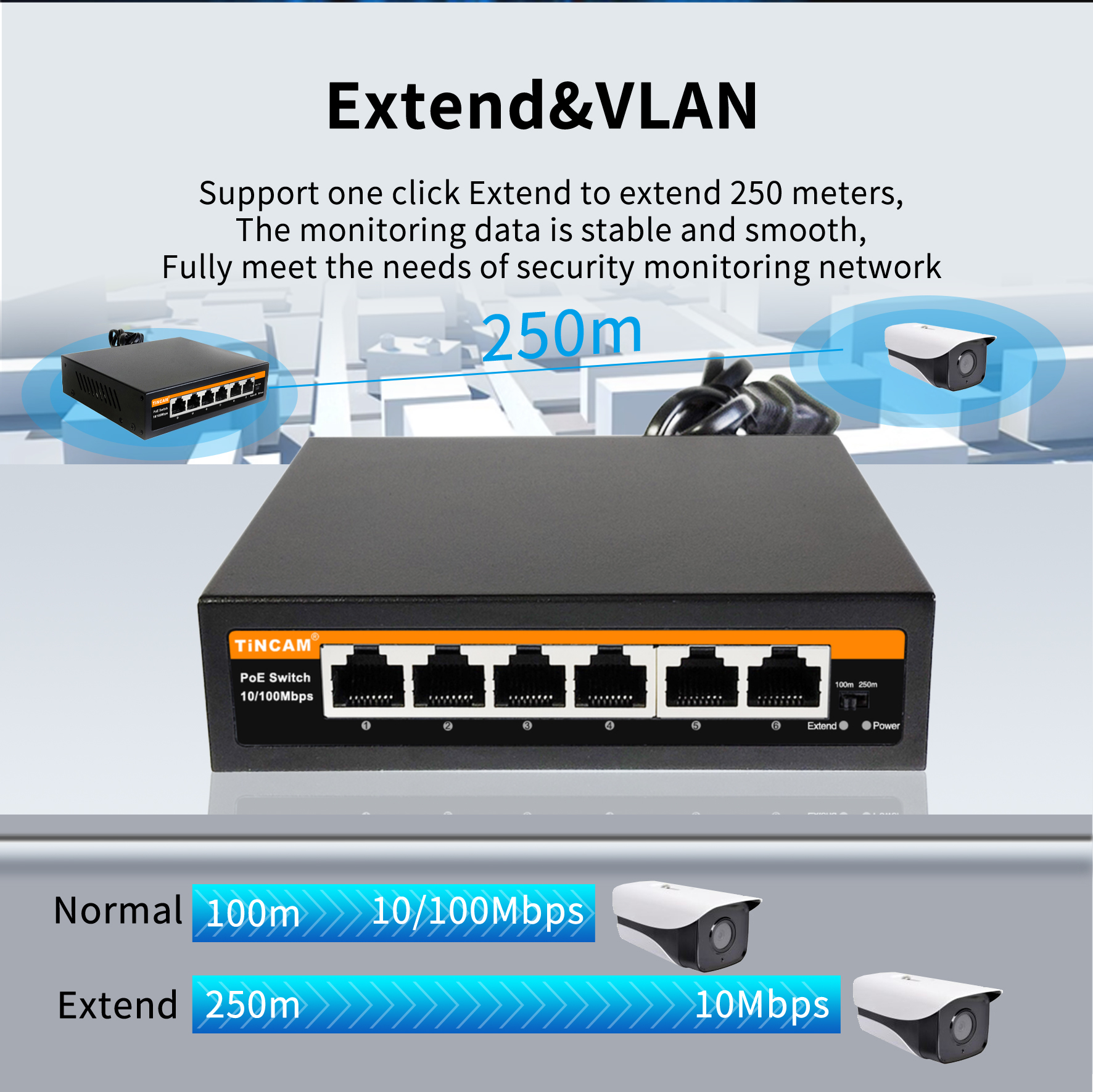

The PoE switch allows ports 1 to 4 to be forcibly set to a 10 Mbps speed via a toggle switch, enabling signal transmission distances up to 250 meters over existing twisted-pair cables. Additionally, ports 1 through 4 are mutually isolated yet maintain communication with the uplink ports (ports 5 and 6). This configuration effectively segments collision and broadcast domains, minimizing broadcast storms and enhancing network communication efficiency. It is an ideal solution for video surveillance networking in hotels, retail stores, supermarkets, residential homes, and small to medium-sized enterprises.

Key Features

• 4 10/100Base-TX PoE ports and two 10/100Base-TX uplink ports;

• 4 RJ45 ports compliant with IEEE 802.3 af/at PoE standards, each providing a maximum output power of 30W;

• All ports support adaptive 10/100 Mbps speeds and half/full duplex modes, along with automatic MDI/MDI-X functionality;

• Line-rate forwarding on all ports ensures smooth and efficient data transmission;

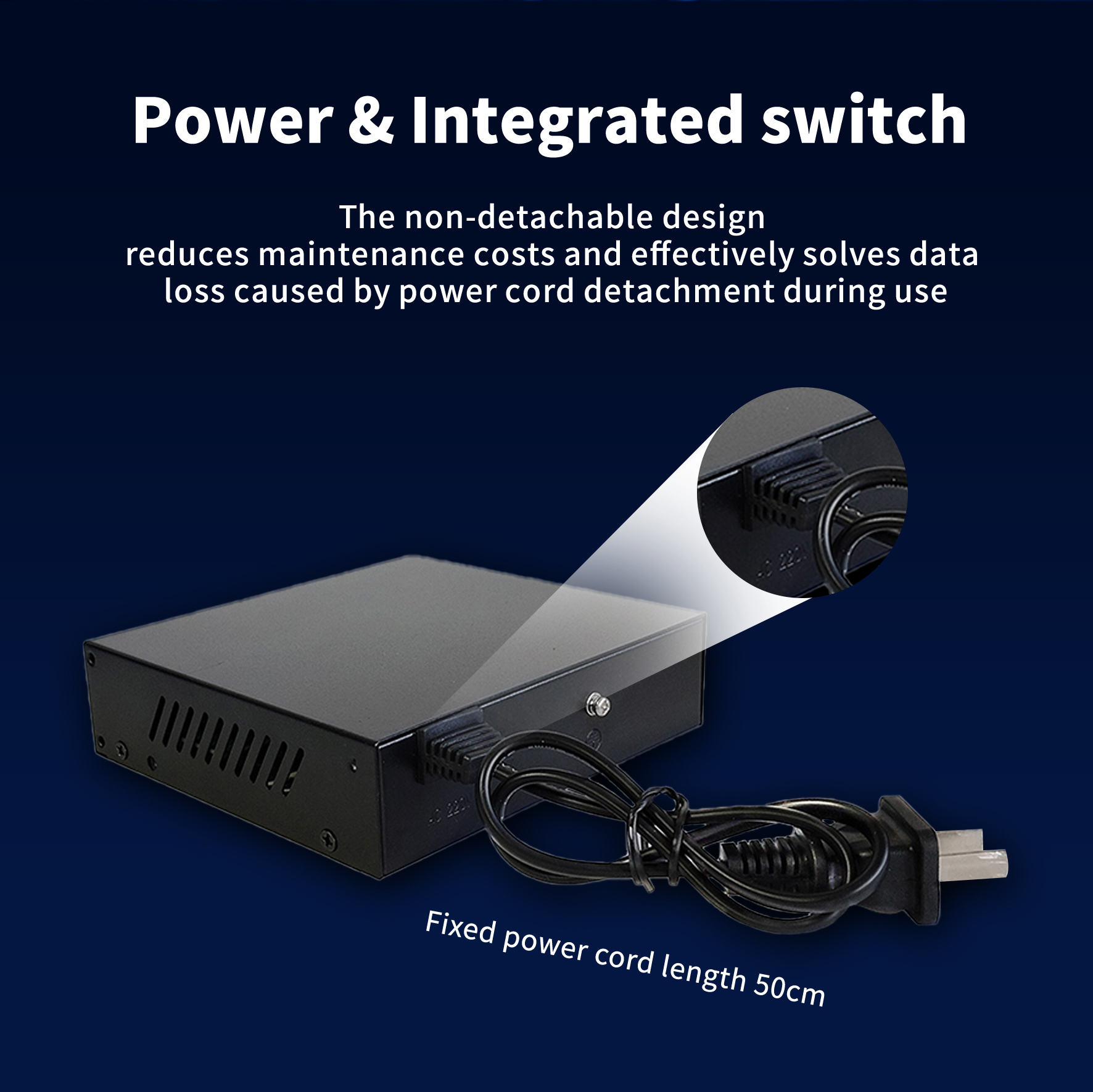

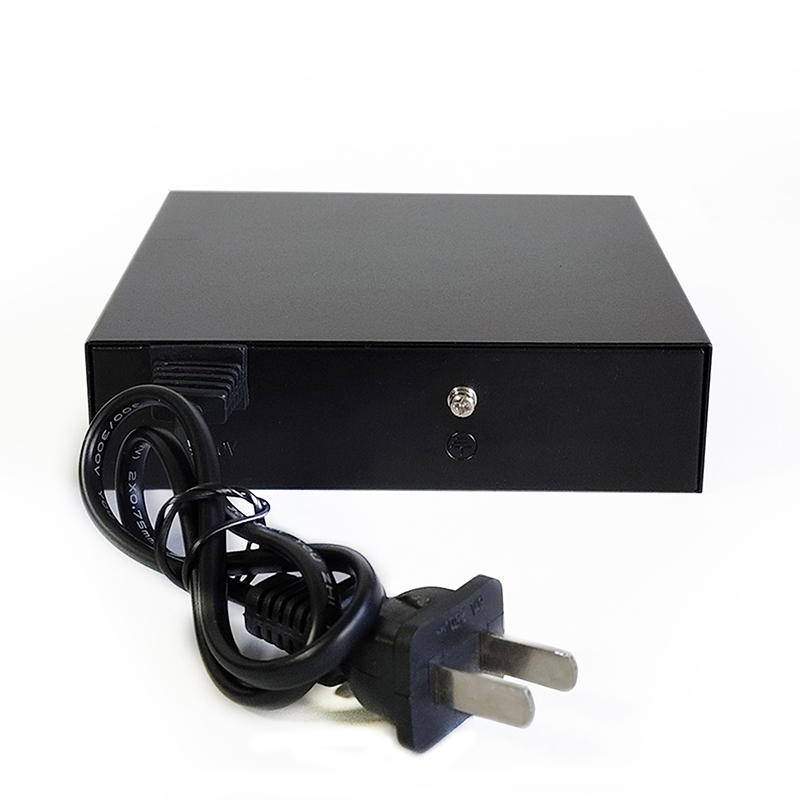

• Integrated AC power cord and switch design facilitate convenient installation and maintenance;

• Optional one-touch switching between VLAN mode and extended transmission mode up to 250 meters;

• Optional AI network self-healing (watchdog) feature available;

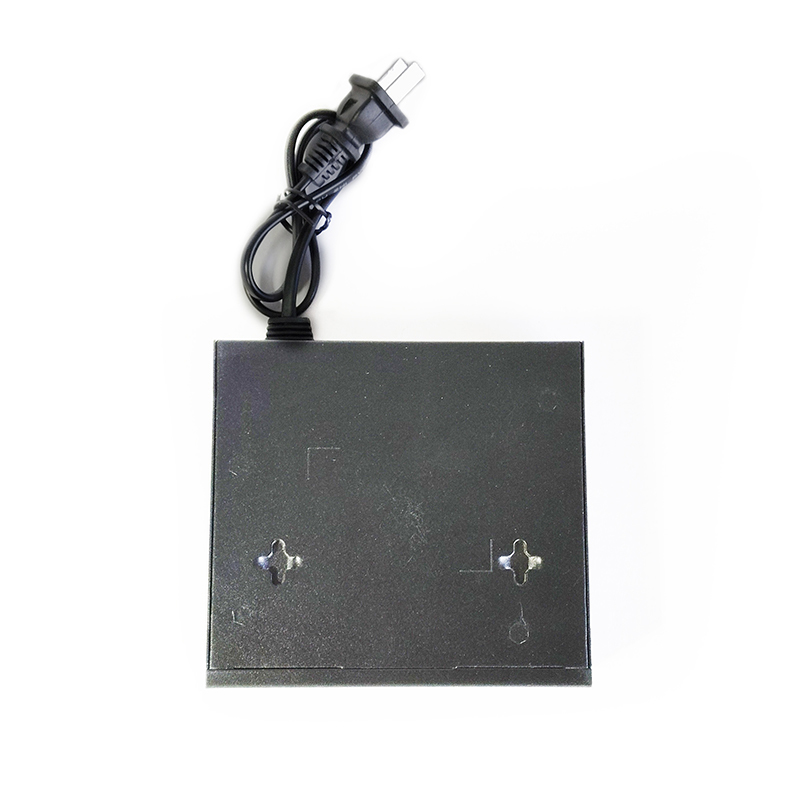

• Supports both desktop and wall-mounted installation;

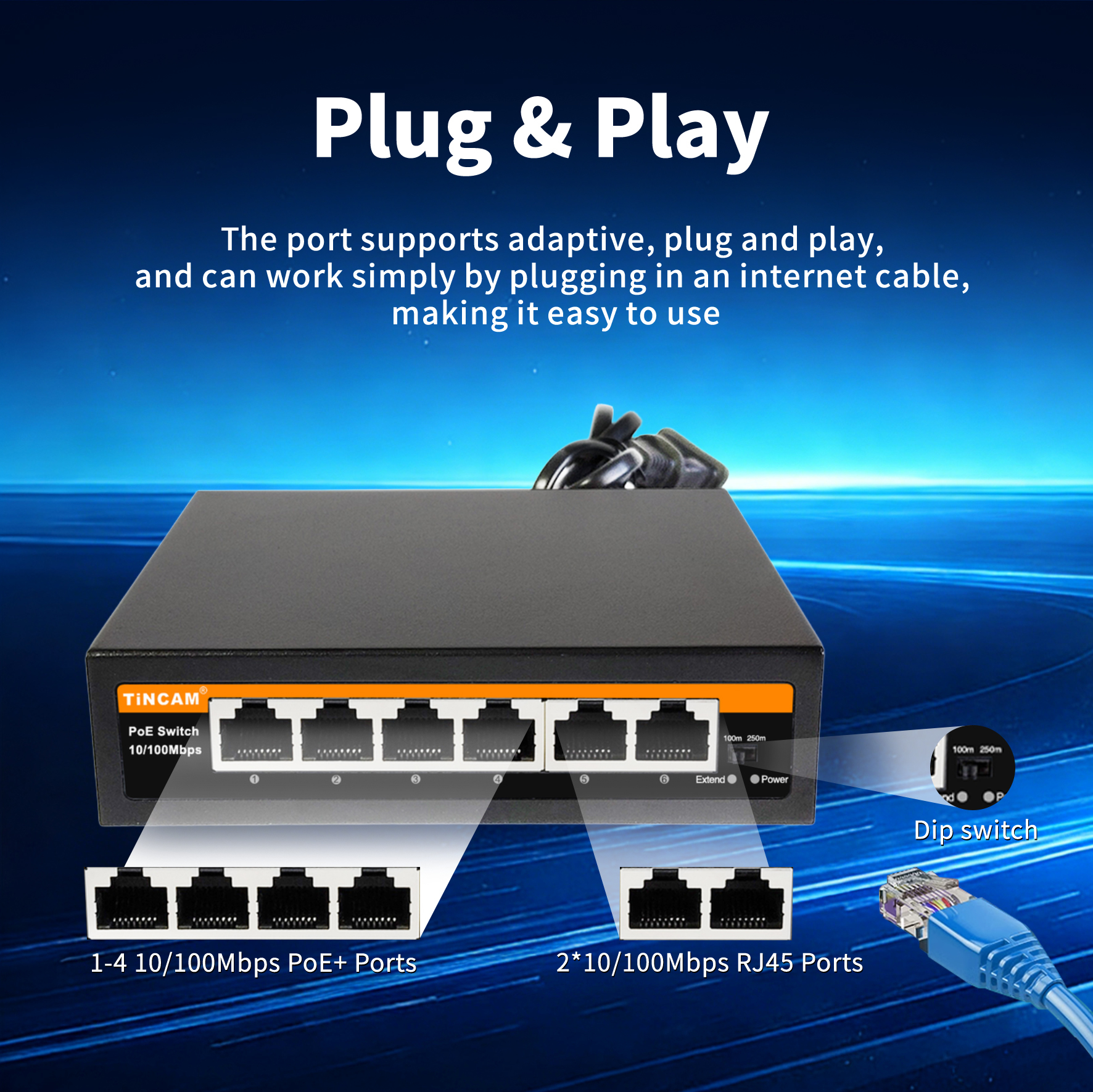

• Plug-and-play functionality with effortless operation, requiring no configuration;

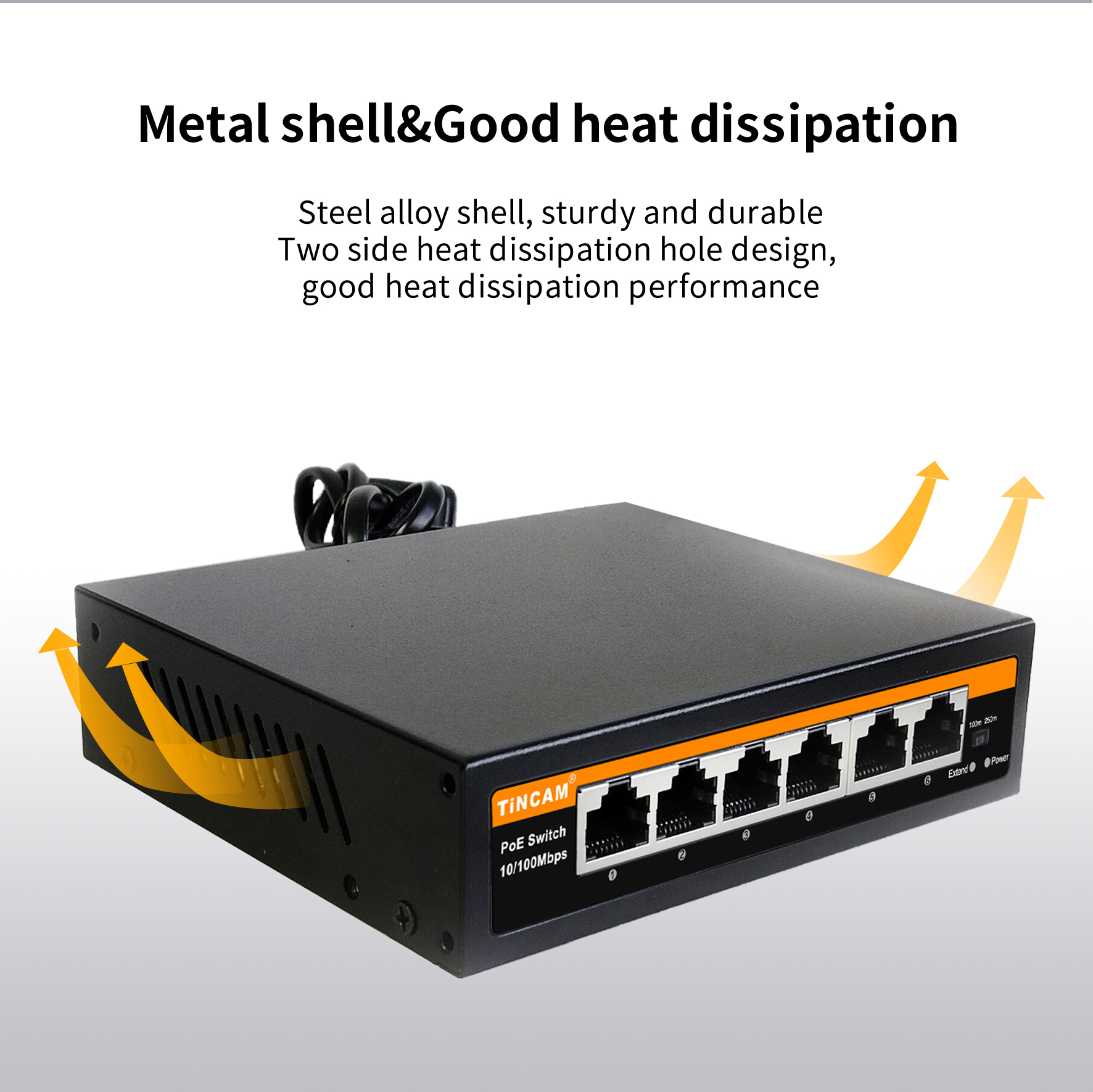

• Constructed with a metal enclosure and built-in power supply for superior heat dissipation, guaranteeing prolonged stable performance.
