TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
TiNCAM Factory 10/100Mbps 1 Fiber 4 PoE Port Fiber Media Converter IEEE 802.3af/at 20km Single Mode Single Fiber 1310nm SC 65W Power Adapter TBC-PSF4314E-S20A
Specifications
Model Number :
TBC-PSF4314E-S20A
Transmission Rate :
10/100Mbps
Applications :
Security Project,Smart communities, CCTV
Supply Ability :
300,000 Pieces per Year
POE Standard :
IEEE 802.3af /at
Power Supply :
Input AC100-240V/Output DC48-52V
Delivery Time :
5-8 work day
Total power :
65W
Operating temperature :
-20 ° C to + 65 °C
MOQ :
1
Packaging Details :
Package:Carton Box
Wavelength :
1310nm or 1550nm
Transmission Media :
RJ45 Port: 10BASE-T: Cat5 or above UTP (≤100m);100BASE-TX: Cat5 or above UTP (≤100m); Fiber Port: Single-mode single-fiber (SMF)
Payment Terms :
T/T
Transmission Distance :
20km
Dimensions :
134mm*82mm*27mm（L*W*H）
Warranty :
1year,lifetime maintenance !
Certification :
CE,FCC,ROHS
PoE Port :
4×10/100Base-TX PoE RJ45 ports (Data/Power)
Place of Origin :
China
Fiber Port :
1×100Base-FX SC (Data)
Brand Name :
TiNCAM
Products Status :
Stock/OEM/SKD
Description

Product Overview

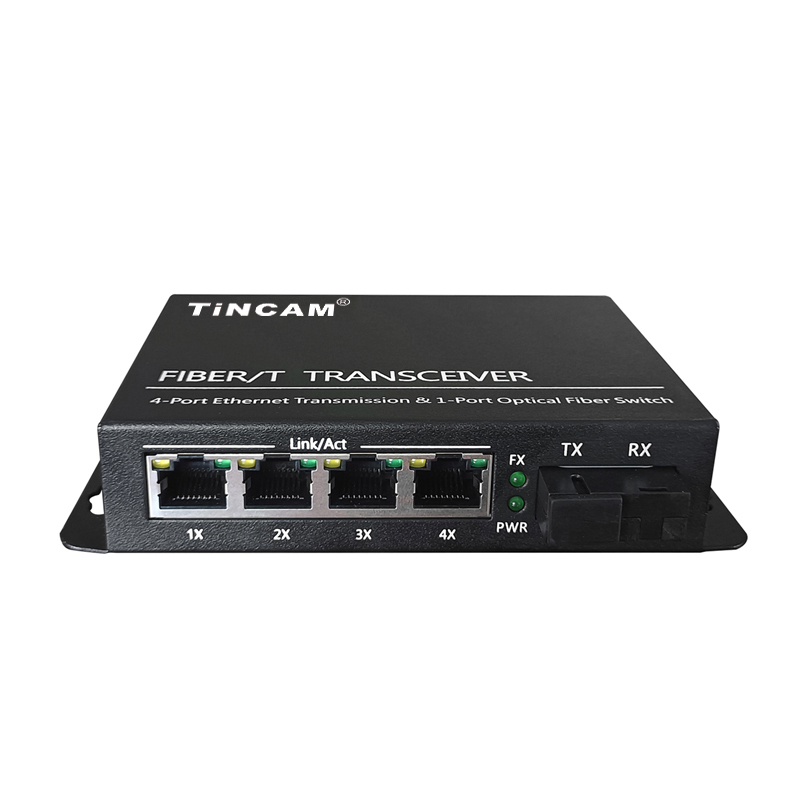

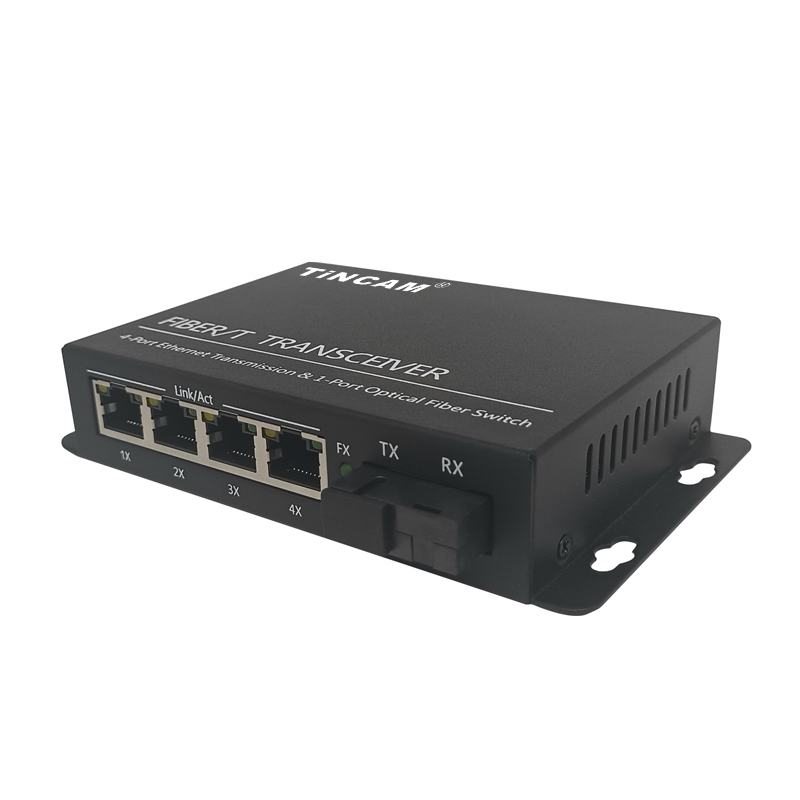

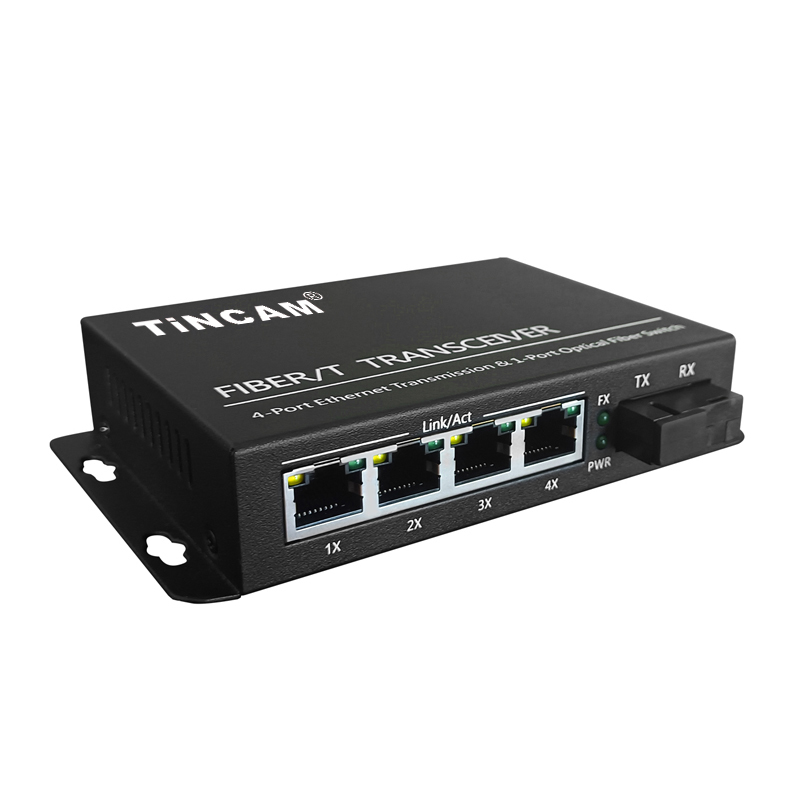

TBC-PSF4314E-S20A is a 10/100Mbps unmanaged PoE fiber media converter designed for long-distance Ethernet transmission and PoE power supply. It features 1 155Mbps SC fiber port and 4 10/100Mbps adaptive PoE RJ45 port, supporting IEEE 802.3af/at standards with up to 30W PoE output. The converter adopts a single-mode single-fiber transmission solution with a transmission distance of up to 20km, making it ideal for IP surveillance, wireless APs, VoIP phones and other PoE-powered devices. IEEE 802.3at PoE+ supports up to 30W PSE output per port.

Key Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3af, and IEEE 802.3at standards.

• Supports IEEE 802.3x Flow Control in full-duplex mode and Back Pressure flow control in half-duplex mode.

• 1 × 155Mbps SC Fiber Port

• 4 × 10/100Mbps Auto-negotiation PoE RJ45 Port

• Supports IEEE 802.3af / IEEE 802.3at PoE Standards

• Maximum PoE Output Power: 30W

• Total Power Budget: 65W

• Single-mode single-fiber, wavelength:1310nm or 1550nm

• Transmission Distance up to 20km

• Store-and-Forward Switching

• Auto MDI/MDIX

• Plug and Play

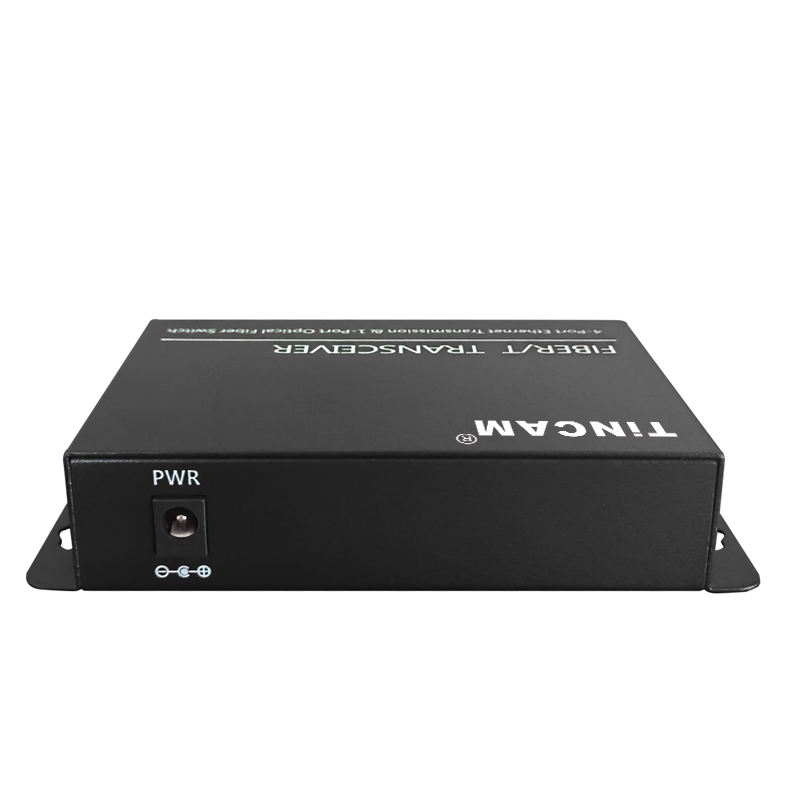

• External Power Adapter

• LED Status Indicators
