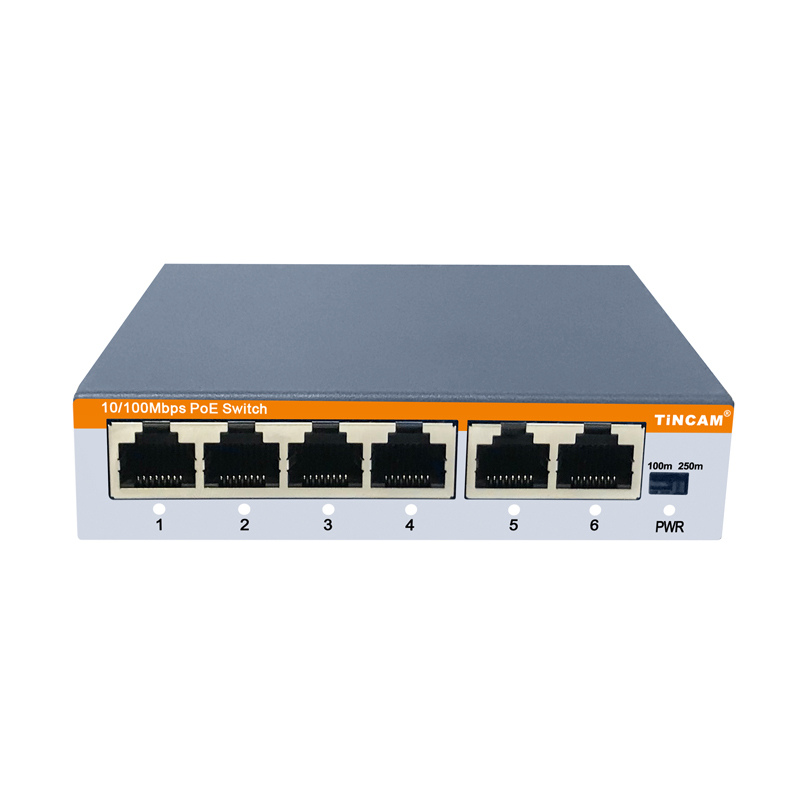

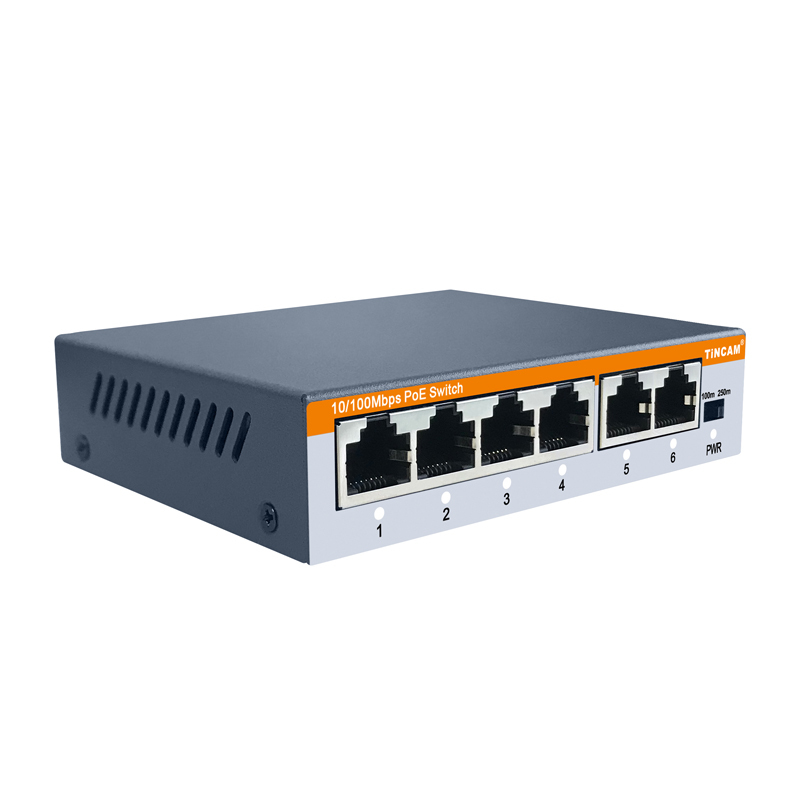

4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
4 Port 10/100Mbps PoE+ Switch with 2 Uplink Ports 48W External Power Adapter IEEE 802.3af/at 250m Extend Mode VLAN– TBC-PS4306E
Specifications
Model Number :
TNC-EPS4306N4
Uplink Ports :
2*10/100Mbps Uplink RJ45 Ports
MOQ :
1
Packaging Details :
Package:Carton Box
POE Ports :
4*10/100Mbps PoE RJ45 Ports
Dimensions :
125*115*32mm
Payment Terms :
T/T
Transmission Rate :
10/100Mbps
PoE Distance :
100 meters or 250 meters (DIP Switch Settings)
Applications :
Security Project,Smart communities, CCTV
Supply Ability :
300,000 Pieces per Year
Total power :
48W
Warranty :
1year
Delivery Time :
5-8 work day
Certification :
CE,FCC,ROHS

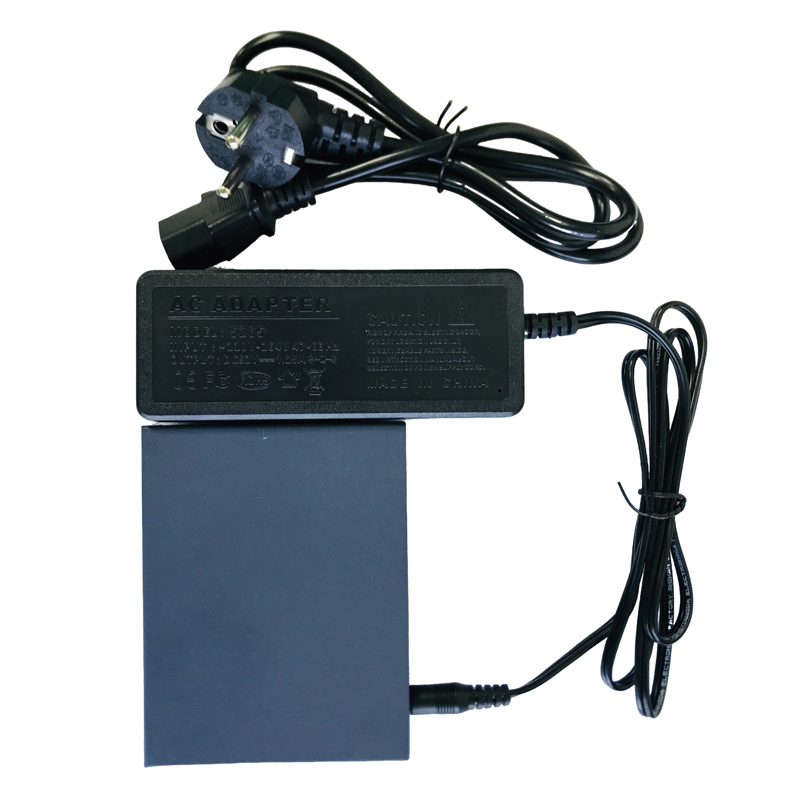

Power Supply :
Input AC100-240V/Output DC48-52V
Switching Capacity :
1.2 Gbps
Place of Origin :
China
Products Status :
Stock/OEM/SKD
Brand Name :
TiNCAM
POE Standard :
IEEE 802.3af /at
Description

Product Overview

The TBC-PS4306E utilizes imported main chips and PSE power supply chips for fast Ethernet transmission and features intelligent Ethernet PoE power supply with AI intelligent management, ensuring it will never burn out. Its ultra-high backplane design provides extremely fast data processing capabilities, resulting in smoother transmission. The precision-engineered steel alloy chassis with electrostatic paint promotes dual-flow heat dissipation, ensuring stable performance and trouble-free operation for ≥30,000 hours. Excellent port performance is provided; the PoE port supports IEEE 802.3af/at standard power supply, with 12+/36- power supply pins (data and power supply are synchronized). It supports connection to APs, IPCs, VoIP devices, etc., via CAT5/CAT6 network cables, with transmission distances switchable between 100 meters and 250 meters to meet the needs of various application scenarios.

Key Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3af, and IEEE 802.3at standards.

• Supports IEEE 802.3x Flow Control in full-duplex mode and Back Pressure flow control in half-duplex mode.

• All RJ45 ports support 10/100Mbps auto-negotiation and Auto MDI/MDIX.

• Ethernet ports provide 4KV surge protection for enhanced reliability and stable network operation.

• Supports VLAN Isolation mode. When enabled, PoE ports are isolated from each other and can only communicate with the uplink ports, effectively reducing • • • • broadcast traffic and improving network security and transmission stability.

• Adopts a Store-and-Forward switching architecture with wire-speed forwarding for efficient data transmission.

• Equipped with a high-performance switching chipset and a fanless metal housing for reliable heat dissipation and stable operation.

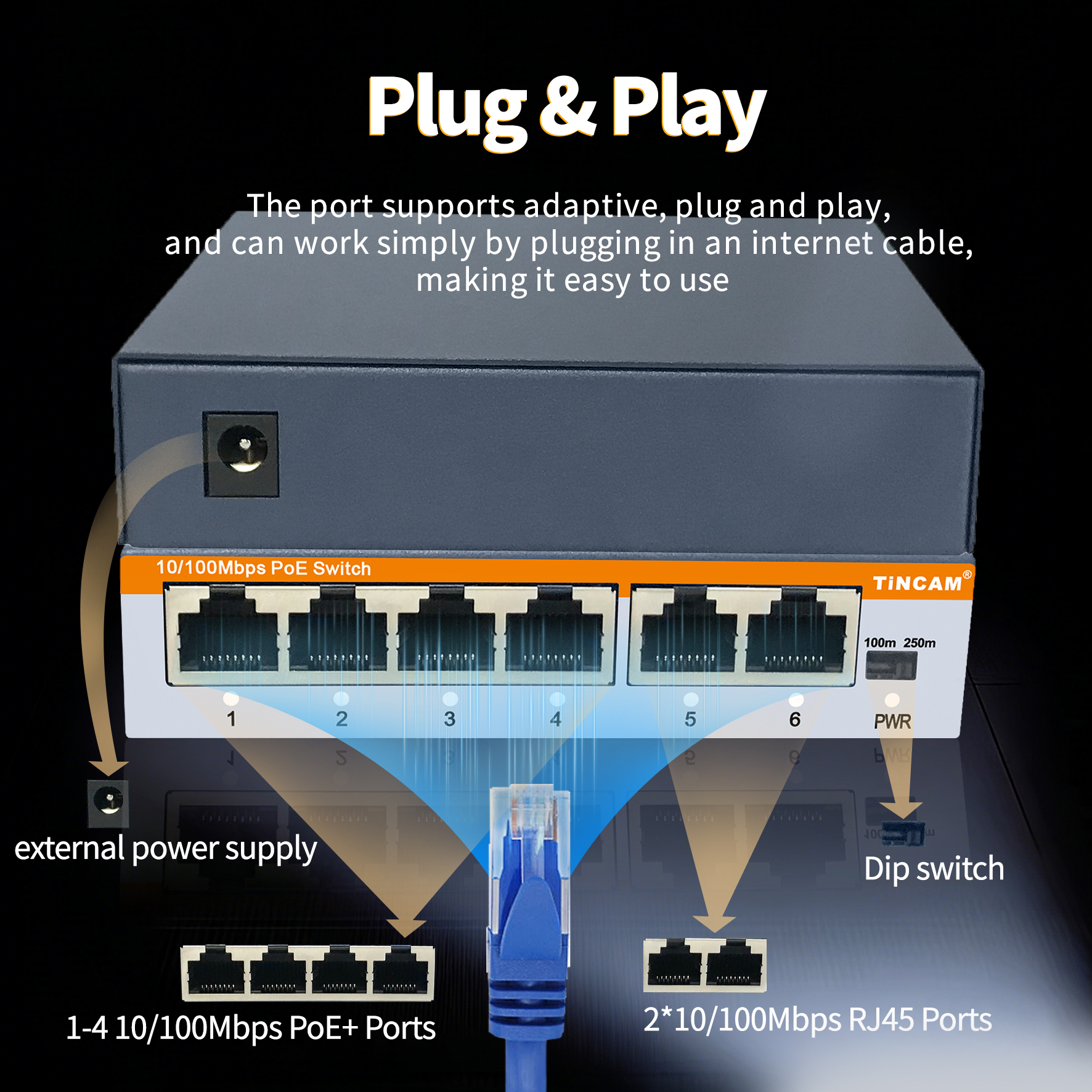

• Features 2 × 10/100Mbps auto-negotiation RJ45 uplink ports for easy connection to upstream switches, routers, or network platforms.

• Provides 4 × 10/100Mbps PoE ports compliant with IEEE 802.3af/at, delivering up to 30W PoE output per port.

• Supports 100m / 250m Extend Mode. When 250m Extend Mode is enabled, PoE ports 1–4 support data transmission up to 250 meters at 10Mbps, while VLAN • Isolation is activated simultaneously. The switch must be restarted after changing the mode switch for the new settings to take effect.
