Product Overview

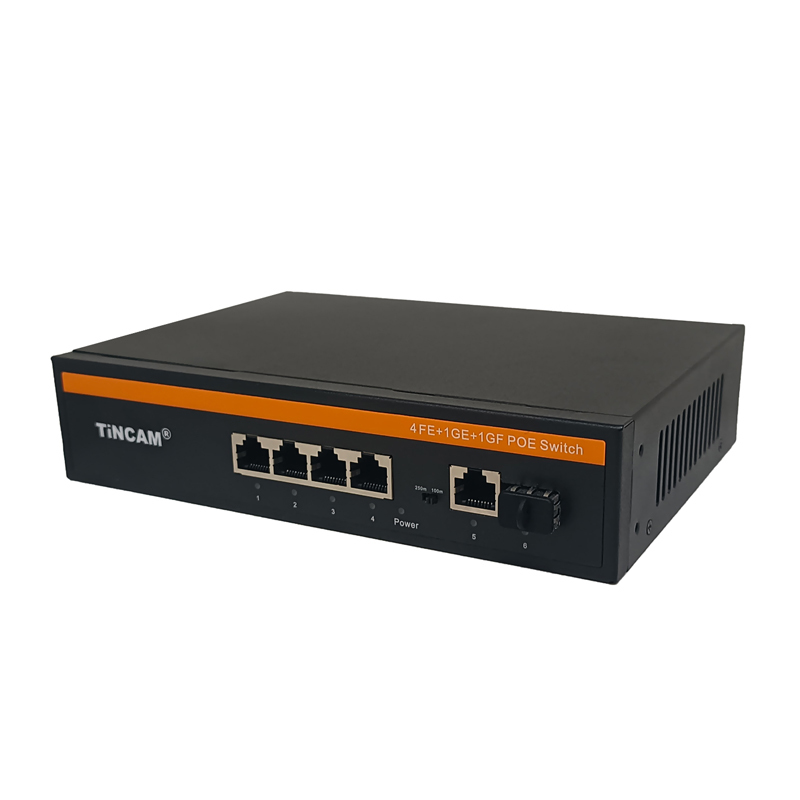

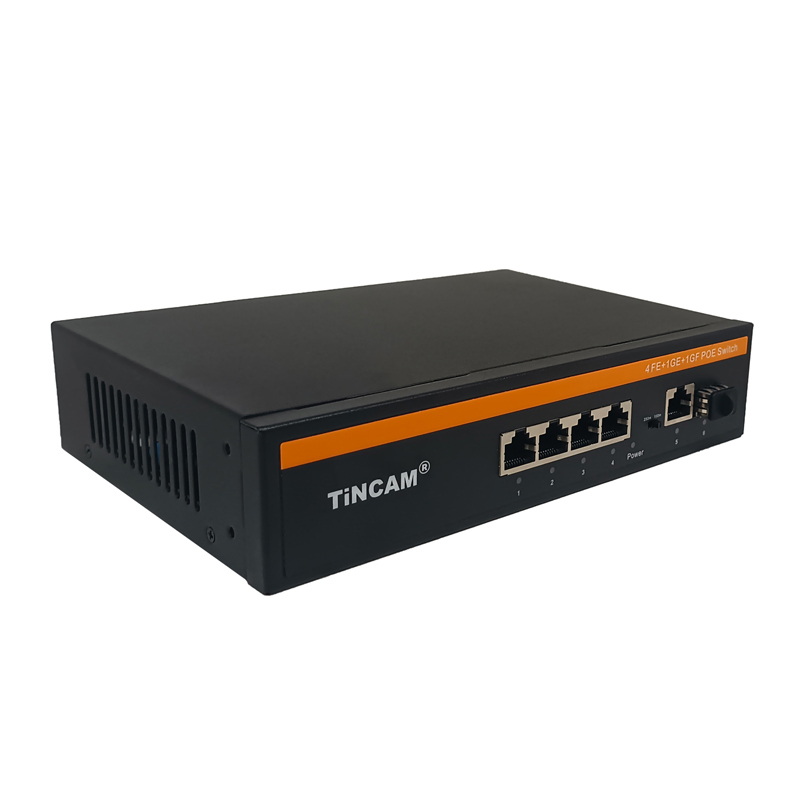

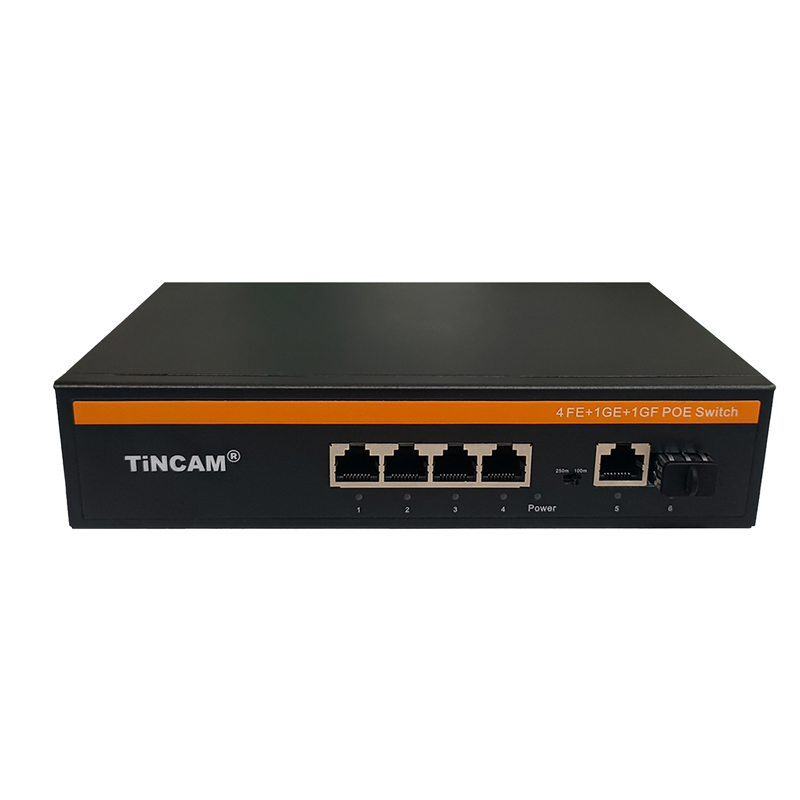

TBC-4PS4506N-1PF is a 6-port PoE switch with Gigabit uplink, featuring 4 × 10/100Mbps adaptive PoE ports, 1 × 10/100/1000Mbps RJ45 uplink port, and 1 × Gigabit SFP fiber port. It supports IEEE 802.3af/at standards, with a maximum PoE output of 30W per port and a total PoE power budget of 65W.The switch supports Standard Mode and Extend Mode. In Standard Mode, the maximum PoE transmission distance is up to 100m. In Extend Mode, the transmission distance of PoE ports can reach up to 250m at 10Mbps.Featuring a durable metal housing and built-in power supply, the TBC-4PS4506N-1PF is designed for stable and reliable operation, making it ideal for connecting and powering IP cameras, wireless APs, IP phones, and other PoE-powered devices.

Key Features

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3af, and IEEE 802.3at standards;

• Supports half-duplex and full-duplex operation; full-duplex mode supports IEEE 802.3x Flow Control, while half-duplex mode supports Back Pressure Flow Control;

• Equipped with 4 × 10/100Mbps adaptive PoE ports, 1 × 10/100/1000Mbps adaptive RJ45 uplink port, and 1 × Gigabit SFP fiber port; all four PoE ports comply with IEEE 802.3af/at standards and support a maximum PoE output of 30W per port; all RJ45 ports support Auto MDI/MDIX, allowing flexible connection to IP cameras, wireless APs, upstream switches, routers, and other network devices;

• Ethernet ports support 4KV surge protection, improving device stability and reliability;

• Adopts Store-and-Forward switching architecture and supports non-blocking wire-speed forwarding;

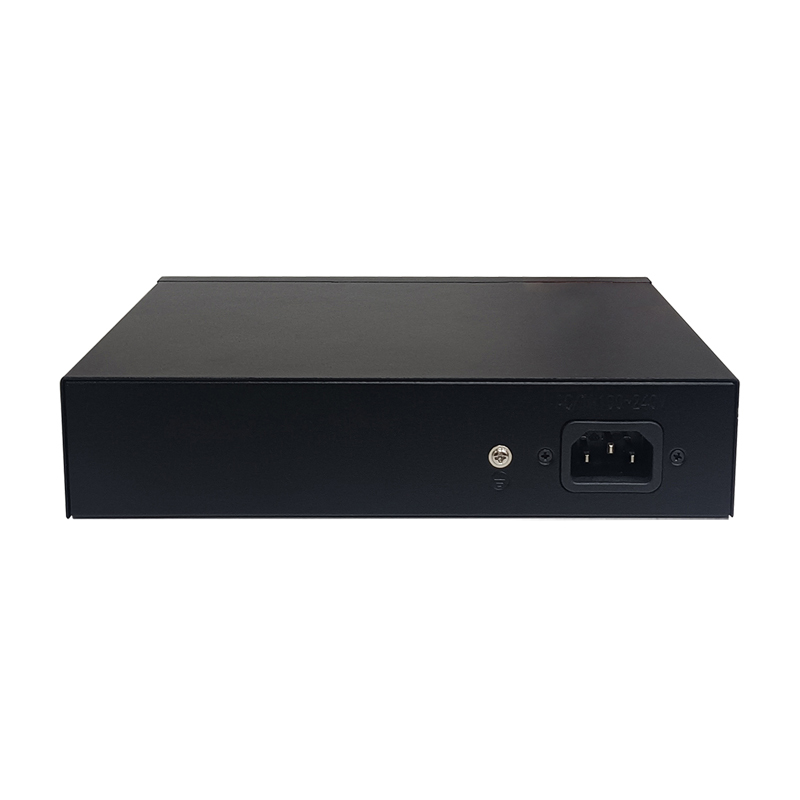

• Features a high-performance switching chip and a metal housing with natural heat dissipation, ensuring stable and reliable operation;

• Supports 100m/250m Extend Mode switching and VLAN Isolation; in 100m Standard Mode, all ports communicate normally with a maximum transmission distance of 100m; when switched to 250m Extend Mode, Ports 1–4 operate in Extend + VLAN Isolation Mode, with a maximum transmission distance of up to 250m at 10Mbps, and VLAN Isolation is automatically enabled; when VLAN Isolation is enabled, the PoE ports are isolated from each other and can communicate only with the uplink ports, effectively suppressing broadcast storms and improving network security and transmission stability; the switch must be restarted after changing the mode switch for the new settings to take effect.
