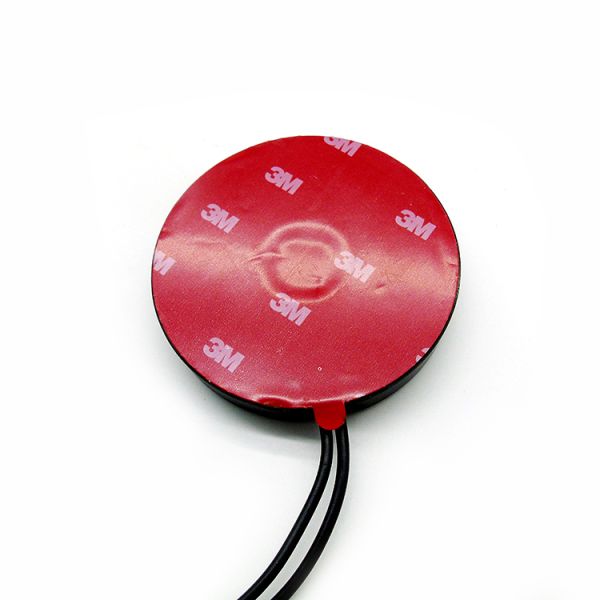

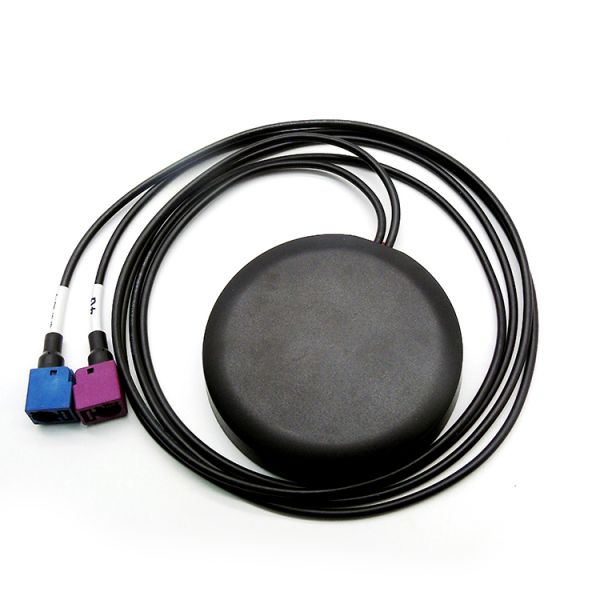

Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain
Specifications
Supply Ability :
400000pcs per month
Material :
fiber glass, fiber glass
MOQ :
20
LNA Gain :
28dBi
Service :
OEM/ODM
Impedance :
50Ω
Installation :
screw
Delivery Time :
10-15days
Polarity :
RHCP
Certification :
ISO9001/IATF16949
Type :
GPS/GNSS Antenna
Place of Origin :
Guangdong, China
Brand Name :
RIDA Antennaer
VSWR :
<1.5
Cable Length :
RG58(15meters)
Connector Type :
SMA-J3 gold
Packaging Details :
opp bag single pcs
Frequency :
GPS GLONASS BEIDOU 4G 5G WIFI
Model Number :
RDYLC-1
Maximum Power :
20W
Description
Products Description
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
We can provide detailed test reports to ensure antenna performance. S11 reflection parameters, pointing test charts, LNA test curves, LNA gain, noise plots, etc.
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)

Product Parameters
GNSS specifications

Center Frequency *
1575.42MHz±3 MHz / 1561MHz / 1602MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
LNA Gain(Without cable) *
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
2G/3G/4G/5G specifications

Frequency Range *
600-6000MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
2.4/5.8Ghz WIFI specifications

Frequency Range *
2300-2500/5700-5900MHZ
V.S.W.R
<1.5
Band Width
±100 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
Dual-Band Wi-Fi + for Antenna for Telematics & ADAS-Combines GNSS 4G/5G 28dBi LNA Gain <1.5 VSWR
