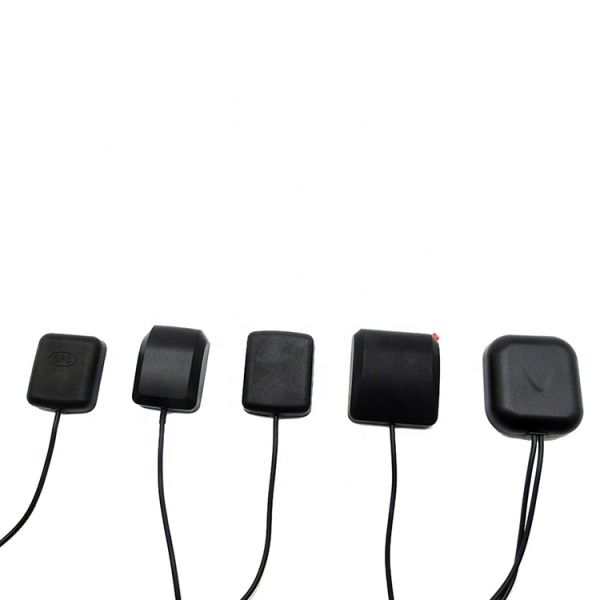

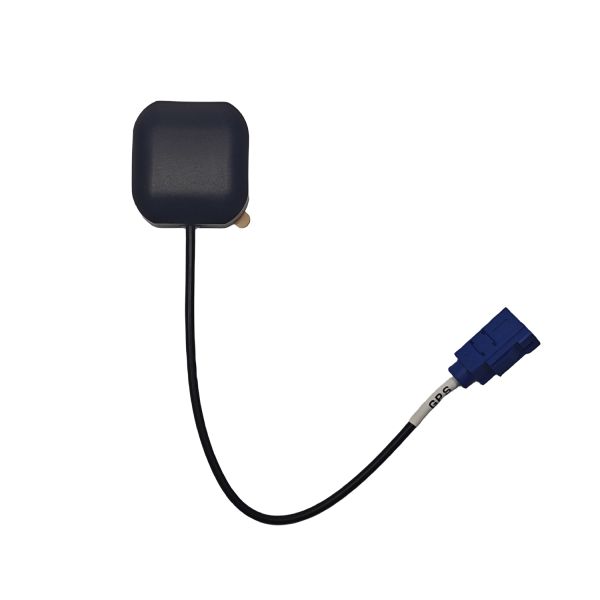

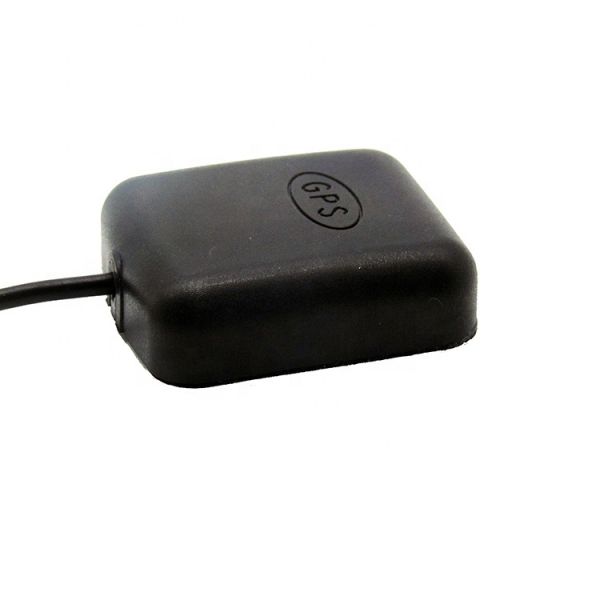

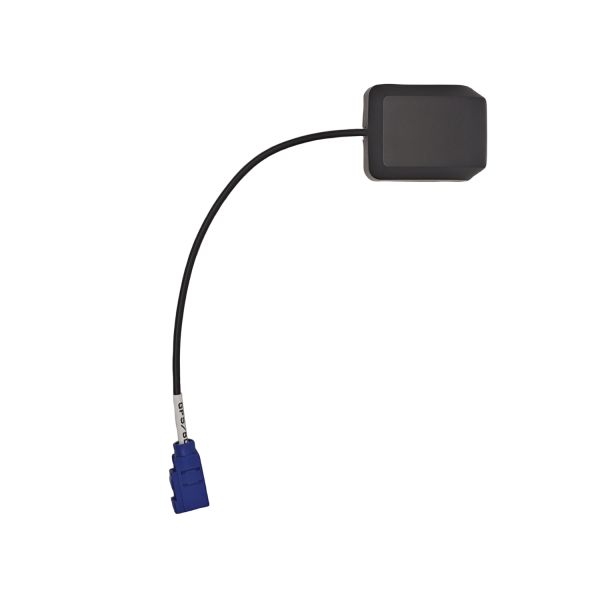

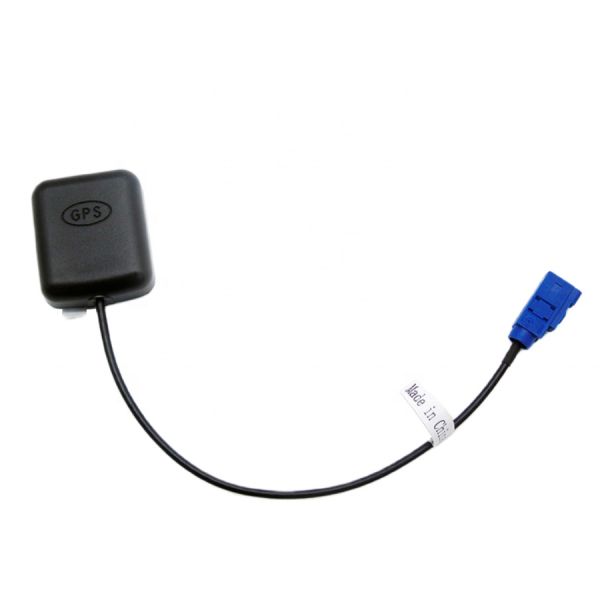

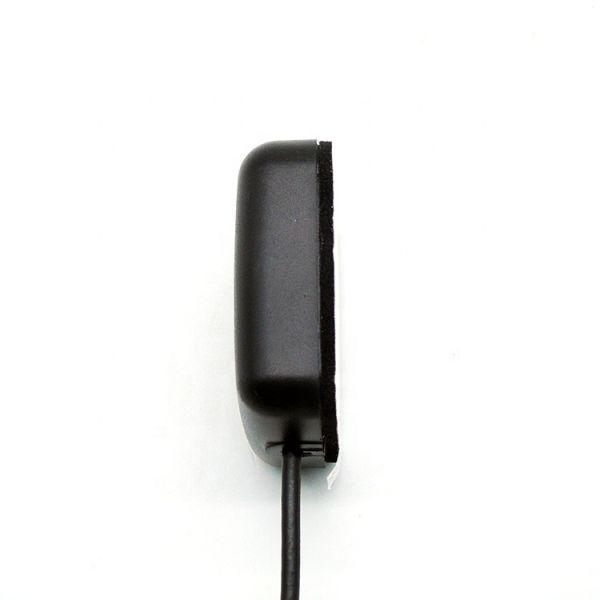

Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Specifications
Supply Ability :
400000pcs per month
Connectivity :
as requirement
Brand Name :
RIDA Antennaer
Impedance :
50Ω
VSWR :
<1.5
Place of Origin :
Guangdong, China
Connector :
as requirement
Delivery Time :
10-15days
Material :
PC
Gain :
30±2dB
Service :
OEM/ODM
Packaging Details :
opp bag single pcs
Polarity :
vertical
Certification :
ISO9001/IATF16949
Type :
GPS/GNSS Antenna
Model Number :
RG00110B
MOQ :
100
Description

Products Description
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Structural Dimensions & Performance Diagrams
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation
Fakra GNSS GPS Antenna 1560-1610MHz for Car Navigation

Product Parameters
Center Frequency
1575.42MHz/1560-1610MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
3dBic
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB
Dimension
40*40*10mm
Gain
30±2dB
Noise Figure
<1.5
Filter Insertion Loss
<3dB
Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage
2.2~5V DC
Current Consumption
10~26mA
V.S.W.R
<2.0
Cable
RG174
Connector
as requirement
Radome Material
ABS
Mounting Method
Magnetic / Adhesive
Operating Temperature
-40°C~+85°C
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
Certificates
IATF 16949, ISO 9001
