4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
Specifications
Supply Ability :
400000pcs per month
Connectivity :
FAKRA/SMA/or as requirement
VSWR :
<1.5
Connector Type :
as requirement
Connector :
Fakra or Customized
Input VSW :
2.0
Cable Length :
RG174 x2 L=1.0M
MOQ :
20
Impedance :
50Ω
Polarization :
Linear
Brand Name :
RIDA Antennaer
Frequency :
698-960MHz/1710-2696MHz
Service :
OEM/ODM
Model Number :
RM01203B
Packaging Details :
opp bag single pcs
Polarity :
vertical
Gain :
28±3dB
Place of Origin :
Guangdong, China
Delivery Time :
10-15days
Material :
PC+cooper
Certification :
ISO9001/IATF16949
Type :
GPS/GNSS Antenna
Description
Overview

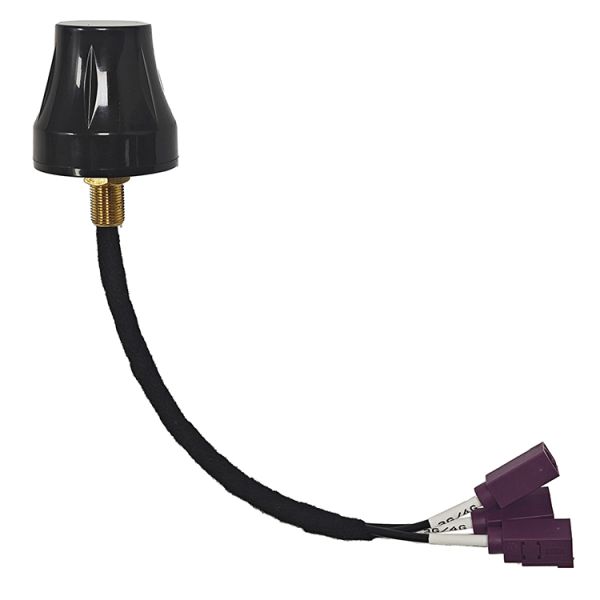

This is a GPS, 4G, and WIFI all-in-one combination antenna designed for intelligent telematics vehicle equipment. The antenna's combination function can be customized based on actual needs, enabling the equipment to provide data acquisition, remote control, security services, and other functionalities.
Options

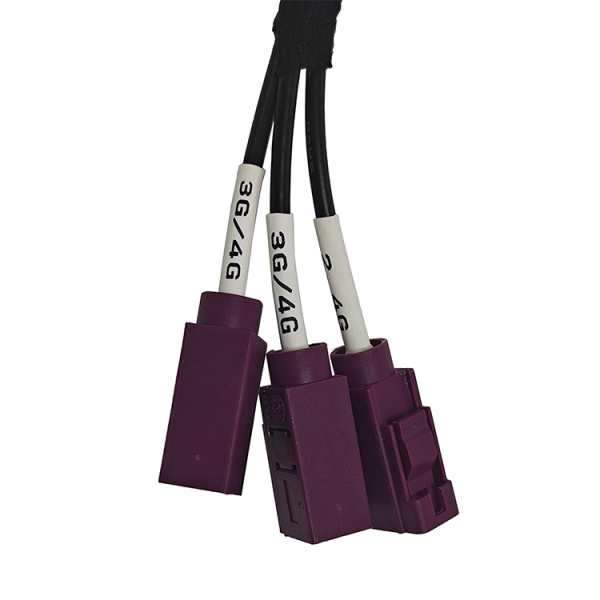

-Antenna performance : -Connector : 1. GNSS single/multi-band 1. SMA male/female 2. 3G/4G(MIMO)/5G/WIFI/BT 2. Fakra(purple/yellow/green/blue/others) 3. 433/868/915Mhz 3. Others -Wire length : -Mounting Methods : 1. 3m (default) 1. Adhesive (default) 2. Others 2. Magnetic
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna
4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna

4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna

4G/LTE & GPS 698-960MHz/1710-2696MHz Combo Antenna


Product Parameters
GPS / LTE / WIFI 3 IN 1 ANTENNA

Center Frequency
1575.42MHz±3 MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
GPS LNA Specifications

LNA Gain(Without cable)
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
LTE Specifications

Frequency Range
698-2700MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
WIFI specifications

Frequency Range
2300-2500MHZ/5700-5900MHZ
V.S.W.R
1.5:1
Band Width
±100 MHz
Gain
2-3dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
