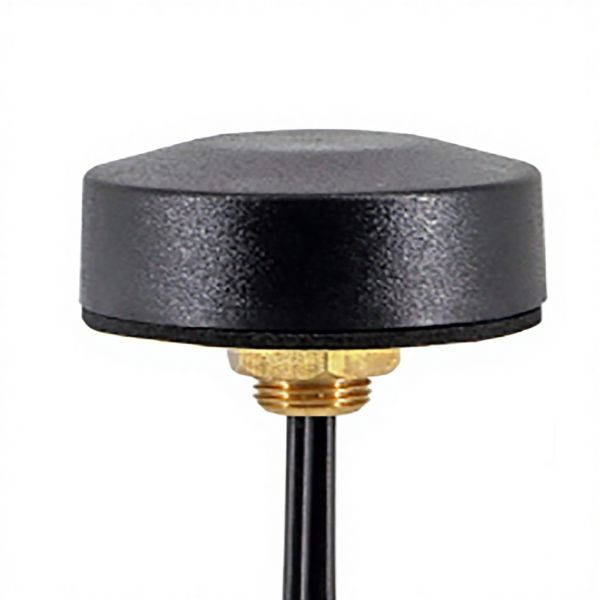

GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain
Specifications
VSWR :
<2
Connector :
as requirement
Service :
OEM/ODM
MOQ :
100
Place of Origin :
Guangdong, China
Brand Name :
RIDA Antennaer
GPS LNA Gain :
28±2dBi
Dimension :
80*20mm
Gain :
3dBi
Type :
GPS/GNSS Antenna
Impedance :
50Ω
Connectivity :
as requirement
Frequency Range :
GPS / 4G / 3G / 2.4G /5.8G
Material :
vertical
Price :
$2.50-3.20
Model Number :
RDYLC-1
Description
GPS 4G 5G LTE WIFI 2.4G 5.8G 2 In 1 Combination Disk-puck Mimo Antenna Machine To Machine Antenna Customization scope：Antenna Performance,Appearance style, Appearance color, Cable length, Connector type
Click here tell me your needs ， We customize the antenna for you !
Products Description

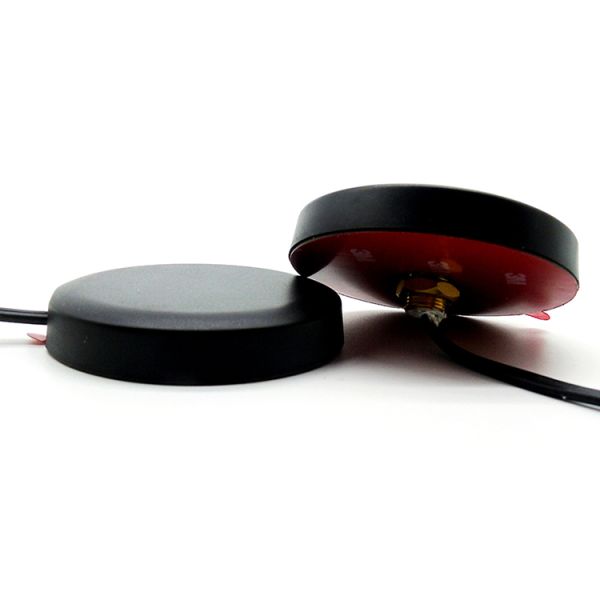

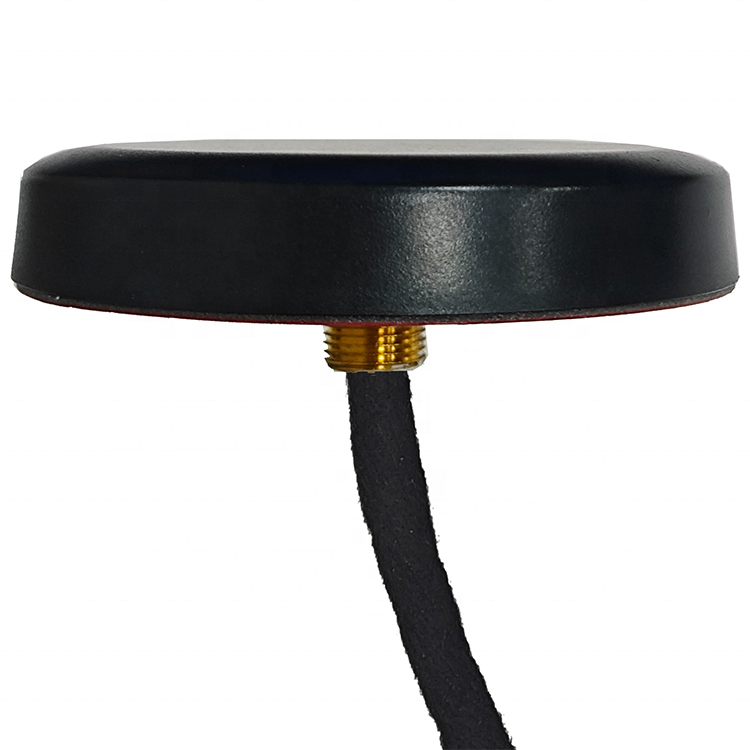

GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
Product Parameters
Center Frequency
1575.42±1MHz / 2.4GHz / 5.8GHz / 698-2700MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
3dBic
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB

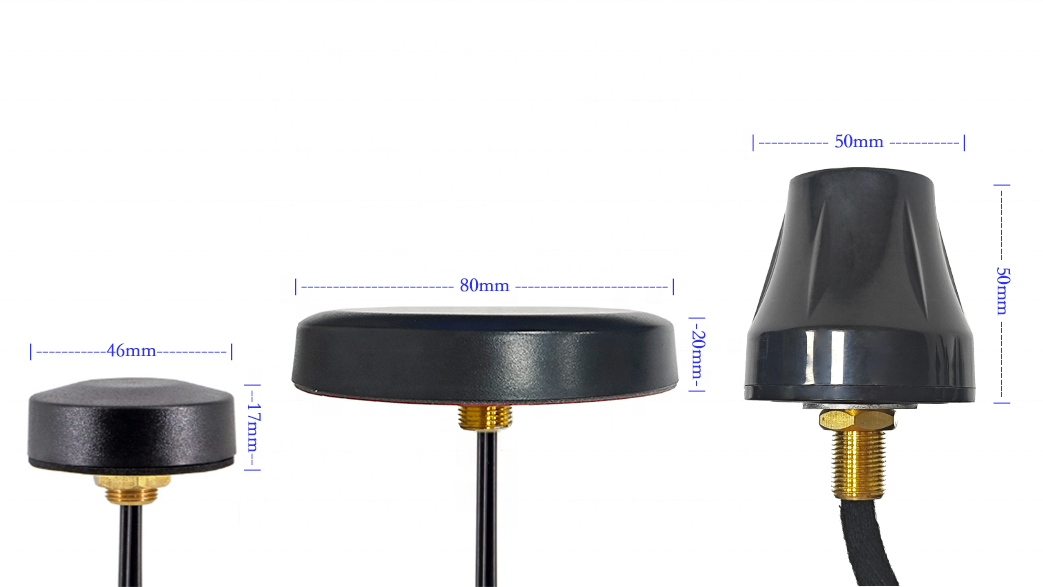

Dimension
20*80mm / 17*46mm
LNA Gain
28±2dB
Noise Figure
<1.5
Filter Insertion Loss
<3dB
Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage
2.2~5V DC
Current Consumption
10~26mA
V.S.W.R
<2.0
Cable
RG174
Connector
as requirement
Radome Material
ABS

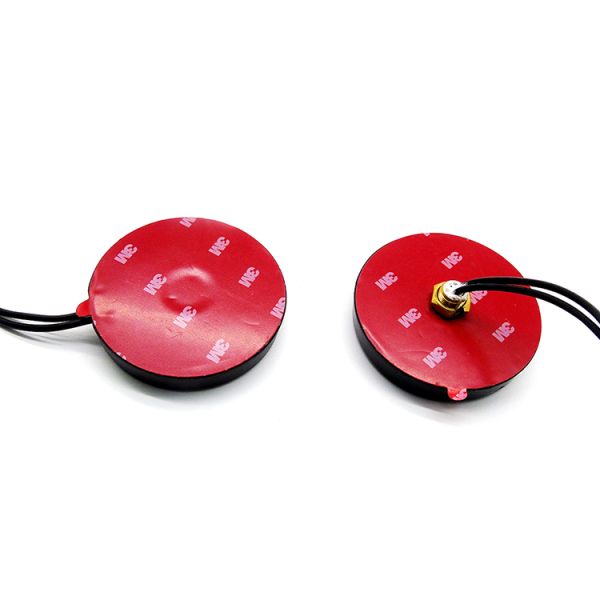

Mounting Method
Magnet
Operating Temperature
-40°C~+85°C
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
Company Profile
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR

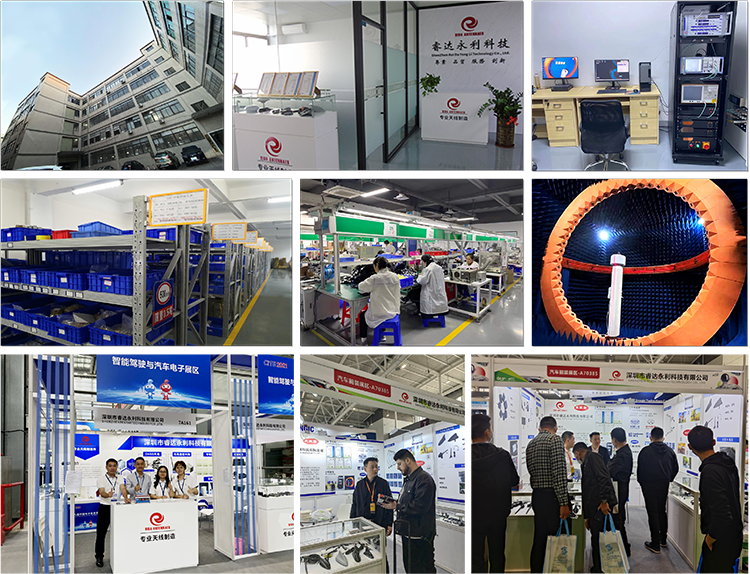

Shenzhen Ruida Yongli Technology Co., Ltd.（RIDA Antennaer） has focused on producing high quality antennas for 11 years, won the national high-tech enterprise certificate, and has a number of antenna patents.Our main products are GNSS/GPS/ GLONASS positioning antennas, WIFI/GSM/5G/4G communication antennas, combo antennas, and the connectors used for them.
We have professional antenna lab and antenna production plant to ensure our customers' OEM & ODM needs and are recognized by overseas customers. The annual production capacity is over 5,000,000 antennas per year.
Company address is located in plant B301, No.5 South Tongle Avenue, Tongle Community, Baolong Street, Longgang District,Shenzhen, covering an area of 4000 square meters.
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
Why Choose Us
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
So far, we have many patents, and we were awarded as a high-tech enterprise by Shenzhen in 2021.We have passed IATF 16949, ISO9001 certification. And our products meet the requirements of CE, ROHS, RED, REACH, WEEE certification.
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
We have more than 100 partners and our business covers automotive positioning and navigation, communication towers, drones and industrial robots, industrial mapping, and high precision positioning.
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
Payment & Shipping & Packaging & Warehouse
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
More Product
GPS 4G LTE WIFI 2.4G 5.8G 2 in 1 Combination Disk-puck MIMO Antenna Machine to Machine 3dBi Gain <2 VSWR
FAQ
Q1: Can I get one sample?
A: Yes, we can provide free samples if they are our finished products, you only need to pay for shipping. However, for custom samples, a sample fee will be charged.

Q2: Are you a manufacturer or a trading company?
A: We have been manufacturing antennas for 10 years.

Q3: Can we customize our products?
A: Yes, We can provide OEM & ODM services.

Q4: What's your delivery time?
A: If the finished product will be sent out within 3 working days. Customized will take 5-30 working days.

Q5: How long is your after-sales service?
A: We provide one year quality warranty.
