Specifications
Impedance :
50Ω
Delivery Time :
10-15days
Polarity :
vertical
LNA Gain * :
28±2dB
VSWR :
<1.5
Certification :
ISO9001/IATF16949
Packaging Details :
opp bag single pcs
MOQ :
10
Model Number :
RDYLC-1
Type :
combination antenna
Connectivity :
as requirement
Material :
plastic+metal
Cable :
RG1.13 or RG174 1m/2m/3m/5m
Place of Origin :
Guangdong, China
Service :
OEM/ODM
Install :
Screw mount
Supply Ability :
400000pcs per month
Brand Name :
RIDA Antennaer
Frequency Range * :
GPS + 2.4GHz / 4G
FEATURES :
4G/LTE full band coverage Active GPS
frequency range :
1575.42MHz/1602Mhz
Description
Product Parameters
4G Hole Mount Combination MIMO Antenna 4G+WiFi+Active GPS GNSS LTE Connectivity VSWR <1.5 Screw Mount Geolocation Tracking
Center Frequency
1575.42±1MHz / 2.4GHz / 5.8GHz / 698-2700MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
3dBic
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB

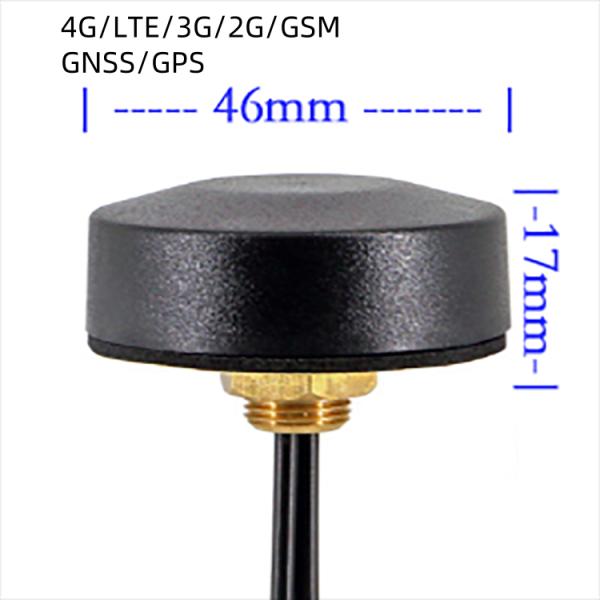

Dimension
46*17 / 80*20 / 50*50 (mm)
LNA Gain
28±2dB
Noise Figure
<1.5
Filter Insertion Loss
<3dB
Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage
2.2~5V DC
Current Consumption
10~26mA
V.S.W.R
<2.0
Cable Length
150mm
Connector
as requirement
Radome Material
ABS
Mounting Method
Magnet
Operating Temperature
-40°C~+85°C
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
