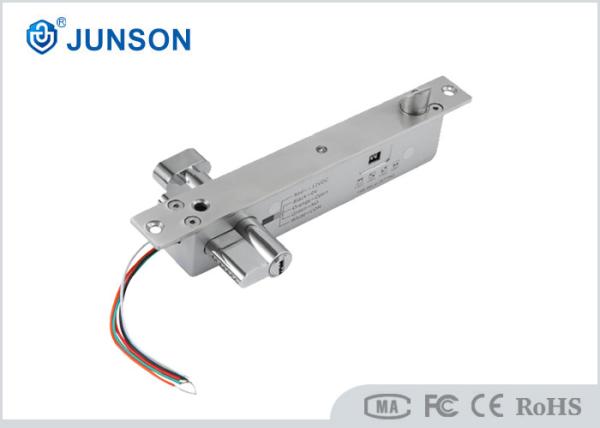

Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy
Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy
Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy
Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy
Specifications
Brand Name :
JUNSON
Model Number :
JS-210B
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T, paypal or western Union in advance
Supply Ability :
30,000pcs per month
Delivery Time :
2-7 working days after received your payment
Packaging Details :
Packed in carton
Signal out :
Door signal, NO/COM
Fail Secure :
unlock when power on
Face plate size :
210L*25W*3H (mm)
Voltage :
DC12V / or 24V to be customized
Magnet bracket :
90Lx25Wx3H(mm)
Induction Distance :
8mm
LED indicate :
Green to lock, Red to unlock
Open wires :
open directly connected to button with black wire
Lock Size :
170L*24W*34H (mm)
Auto relock Timer jumper :
adjustable (0/3/6/9S)
Material :
Zinc Alloy & 304 Stainless steel
Temp Rise: :
≦10K
Description



Model: JS-210B


Specification:

Fail Secure: unlock when power on
Material size: Zinc Alloy / 304 Stainless steel
Lock Size: 170L*24W*34H (mm)
Face plate size 210L*25W*3H (mm)
Magnet bracket: 90Lx25Wx3H(mm)
Lock bolt: 12.6mmDIA,stainless steel out throw15mm, bevel
Voltage: DC12V / or 24V to be customized
Current:

Start: 1.0A
Standby: 0.14A
Holding force 1200kg
Available for Wooden door, metal door, fireproof door
Signal out Dorr signal, NO/COM
LED indicate Green to lock, Red to unlock
Open wires open directly connected to button with black wire
Auto relock Timer jumper adjustable (0/3/6/9S)
Temp Rise: ≦10K
Induction Distance 8mm
Environment temp: -20~+45℃
Environment Humidity: 0~90%(non-condensing)
Face place material: 304 Stainless steel
Weight: 1.0kg
Standard Packing: 20pcs.
Carton size: 46*30*23 CM


Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy

More Information

- Low temperature, safe and durable
- Low power consumption, environmentally friendly
- MOV provides reverse current protection
- Specially designed solenoid valve, high strength, long service life, can operate 500000 times
- High strength zinc alloy, stainless steel bolts
- Led indication, red to open, green to lock
- Unsafe, with steel cylinder, suitable for high security areas such as banks, prisons, etc.
- EU ce certificate, Chinese public security organ MA

Size:

Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy

Who we are

Bevel Electric Bolt lock Fail Secure 8mm Induction Zinc Alloy


FAQ


Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
