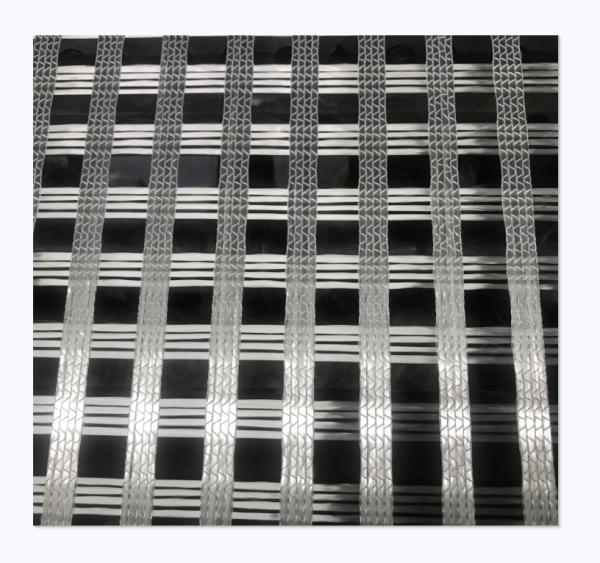

High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways
High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways
High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways
High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways
Specifications
Brand Name :
SZ
Model Number :
FG
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10,000 Square Meter
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T
Supply Ability :
100,000 Square Meters per Week
Delivery Time :
5-8 Working day
Packaging Details :
By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)
Product Name :
Asphalt Fiberglass Geogrid
Application :
Platforms And Walkways
Function :
High Strength Long Durable
Material :
Fiberglass Yarn
Coating :
Bitumen & asphalt geogrid
Tensile Strength :
50kN/m-300kN/m
Elongation Rate :
<=4%
Length*Width :
3.95*50M
Length :
50m-100m
Mesh size :
25.4*25.4mm 12.5*12.5 50.8*50.8
Description

High Strength Long Durable Fiberglass Geogrid For Platforms And Walkways

Highlights:
○ Reduces/Prevent Reflective Cracking
○ High Modulus Fiberglass Grid
○ Bituminous Coating Which Enhances Pavement life
○ Self Adhensive type - easy installation to save labour cost

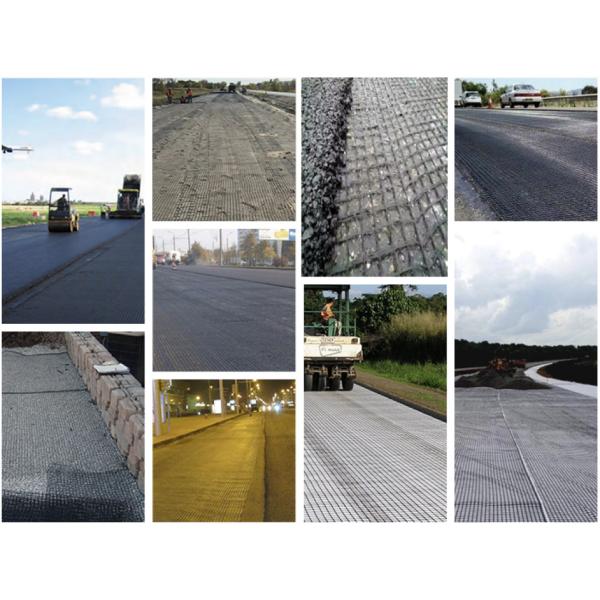

Use & Purposes:
○ New road building with Asphalt Reinforcement Grid
○ Repair of Asphalt Pavement
○ Maintenance of Pavement
○ Rehabilitation of Pavement and road.

High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways

High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways

Asphalt Fiberglass Geogrid :

Fiberglass geogrid technological standard(GB/T 21825-2008)

specification

FG30×30

FG50×50

FG
60×60

FG
80×80

FG
100×100

FG
120×120

FG
150×150

Mesh center distance(mm)

MD

25.4±3.8 , 12.7±3.8

CMD

25.4±3.8 , 12.7±3.8

breaking strength(kn/m)

MD

30

50

60

80

100

120

150

CMD

30

50

60

80

100

120

150

Breaking Elongation(%)

MD

4

4

4

4

4

4

4

CMD

4

4

4

4

4

4

4

Width(m)

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways High Strength Long Fiberglass Geogrids Self Adhensive Type For Platforms And Walkways

Asphalt Fiberglass Geogrid Professional Installation Guide :
Surface Preparation:
Mill existing pavement as needed
Apply polymer-modified tack coat (0.6-0.8 kg/m²)

Geogrid Placement:
Unroll with machine direction perpendicular to traffic flow
Minimum 300mm side overlaps, 500mm end overlaps

Asphalt Placement:


Minimum 75mm overlay thickness recommended
Maintain ≥150°C mix temperature during placement
