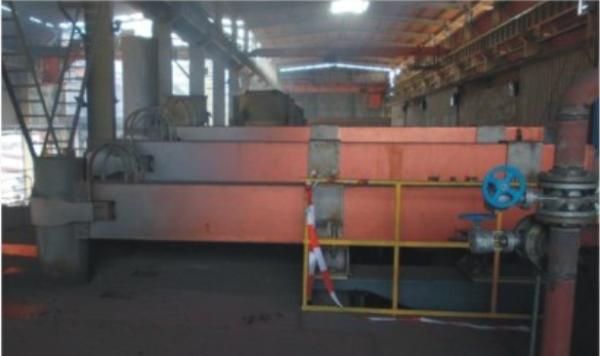

Copper-Cobalt Alloy Furnace
Copper-Cobalt Alloy Furnace
Specifications
Brand Name :
Shaanxi Chengda
Model Number :
Negotiate based on equipment processing capacity
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 unit
Price :
The price will be negotiated based on the technical requirements and supply scope of Party A
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
Complete production supply chain, supply on time, and meet quality standards
Delivery Time :
2 months
Packaging Details :
Discuss according to the specific requirements of Party A
Efficiency :
High
Country Of Origin :
Shaanxi, China
Automationlevel :
Semi-automatic to fully automatic
Leaving Factory Standard :
New ISO9001
Total Power :
33000kva
Productname :
Ferroalloy Refining Equipment
Capacity :
Varies by model, typically 1-10 tons per batch
Maintenance :
Easy maintenance with replaceable parts
Gas Characteristics :
Synthetic fuel (Burning mixture)
Gas Use :
New clean energy
Warranty Period :
1year
Description

Copper-Cobalt Alloy Furnace


Product Overview


The Copper-Cobalt Alloy Furnace is a dedicated arc furnace for copper-cobalt ore reduction smelting and copper-cobalt alloy production. It is designed for raw materials such as African copper-cobalt oxide ores, producing high-grade copper-cobalt alloys (Cu+Co≥40%) through high-temperature reduction and slag separation. Featuring a full water-cooled body + high-strength refractory lining and a PLC intelligent control system, it offers high temperature resistance, high recovery rate, precise composition control, and environmental sustainability. It is widely used in copper-cobalt ore pyrometallurgy, alloy purification, and renewable resource recycling.

1. Main Equipment Composition


  1. Full Water-Cooled Tilting Furnace Body

    Split/integral steel shell with full water-cooled wall + magnesia-chromium refractory lining, resisting temperatures up to 1600℃ and acid-base slag erosion. Tilting angle: 0–45° (alloy tapping), 0–15° (slag removal), driven by a hydraulic system for stable operation.

  2. Water-Cooled Furnace Roof & Electrode System

    Annular full water-cooled roof with central electrode hole and side dust removal/charging ports for sealing and heat preservation. Φ300–Φ500mm graphite electrodes with servo hydraulic lifting (0.8–1.5m/min) ensure stable arc and sensitive adjustment.

  3. Transformer & Short-Net System

    Energy-saving dedicated transformer (2000–8000kVA), high voltage: 35kV, low voltage: 180–300V. Low-impedance short net + full water-cooled conductive cross arm minimizes high-current transmission loss and improves thermal efficiency.

  4. Charging & Slag Tapping Mechanism

    Automatic top/side charging bin for mixed materials (ore, coke, lime). Trough/EBT alloy tapping ensures smooth outflow with minimal residual slag, paired with ladles for rapid transfer.

  5. PLC Intelligent Control System

    Dual automatic/manual mode with one-key start-stop, automatic arc stabilization, and closed-loop temperature/power control. Supports online composition monitoring, data logging, and remote monitoring with full interlock protection for safety.

  6. Auxiliary Systems

    Closed circulating water cooling, baghouse dust removal (emission ≤10mg/m³), automatic coke/lime conveying, hydraulic station, and lubrication systems. Fully equipped and environmentally compliant.


2. Core Performance Advantages


  • High Recovery Rate: Precise temperature control (1400–1600℃) ensures complete reduction, with Cu recovery ≥86% and Co recovery ≥90%.
  • Superior Alloy Quality: Optimized slag system (CaO/SiO₂=1.0–1.3) minimizes impurities (Fe, Si, S), delivering Cu+Co≥40% with uniform composition.
  • High Efficiency & Low Consumption: Full water-cooled design reduces refractory consumption (2x longer life). Single-furnace cycle: 50–90min, power consumption: 2200–3200kWh/t alloy.
  • High Temperature Resistance & Long Service Life: Water-cooling + refractory double protection minimizes deformation and erosion for extended continuous operation.
  • Eco-Friendly & Safe: Closed smoke extraction + high-efficiency dust removal eliminates leaks. Full interlock protection prevents overheating and leakage.
  • Wide Raw Material Adaptability: Compatible with oxide/sulfide copper-cobalt ores, copper-cobalt slag, and recycled materials for flexible production.

3. Main Technical Parameters (Reference)


Item Specification
Rated Capacity 8t, 15t, 25t, 40t, 60t
Transformer Capacity 2000kVA, 4000kVA, 6300kVA, 8000kVA
Electrode Diameter Φ300mm, Φ350mm, Φ400mm, Φ500mm
Electrode PCD Φ1100–Φ1500mm
Smelting Temperature 1400–1600℃
Smelting Cycle 50–90min/heat
Tapping Mode Trough Tapping / EBT
Tilting Angle Alloy Tapping 0–45°, Slagging 0–15°
Cooling Mode Closed Cycle Pure Water Cooling
Control Mode PLC Automatic + Manual Dual Mode
Raw Materials Copper-Cobalt Oxide/Sulfide Ore, Copper-Cobalt Slag, Coke, Lime
Product Composition Cu+Co≥40%, Cu≥30%, Co≥5%
