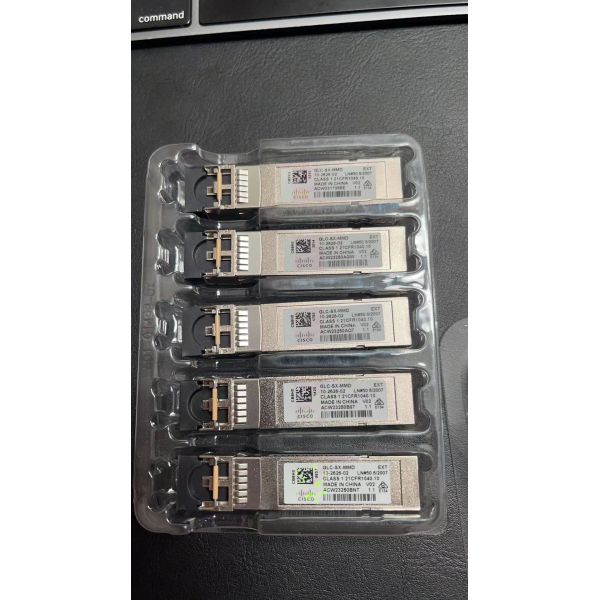

Multimode Cisco Compatible SFP GLC-SX-M MD IEEE 802.3z 1000BASE-SX
Multimode Cisco Compatible SFP GLC-SX-M MD IEEE 802.3z 1000BASE-SX
Specifications
Brand Name :
Cisco
Model Number :
GLC-SX-M MD Green Laser
Certification :
CE
Place of Origin :
Malaysia
MOQ :
1pc
Price :
$65
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
500 pcs
Delivery Time :
3-5 working days
Packaging Details :
Optic Box Cisco
Detail :
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
Operating Temperature :
-5°C to 70°C
Compatibility :
Cisco switches and routers
Transmission Distance :
Up to 10 km
Power Consumption :
≤ 1 W
Hot Swappable :
Yes
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Application :
Gigabit Ethernet, Fiber Channel
Form Factor :
Small Form-Factor Pluggable
Duplex :
Full Duplex
Standard Compliance :
IEEE 802.3z
Connector Type :
LC
Data Rate :
1 Gbps
Interface :
Serial Optical Interface
Mtbf :
Over 1 million hours
Description

Genuine New GLC-SX-MM D Green Laser CISCO 850nm 550m Duplex LC MMF SFP

The GLC-SX-MM D 1000BASE-SX SFP is made for Multimode Fiber only.
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable. 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Quick Specification

Cisco Compatible

GLC-SX-MM D

Form Factor

SFP

Wavelength

850nm

Connector

Duplex LC

Media

MMF

TX Power

-9.5 ~ - 3dBm

Industrial Temperature Range

-40 to 85°C (-40 to 185°F)

Vendor Name

FS

Max. Data Rate

1.25Gbps

Max. Cable Distance

550m over OM2 MMF

Optical Components

VCSEL 850nm

DOM Support

Yes

Receiver Sensitivity

< -17dBm

Protocols

IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant
