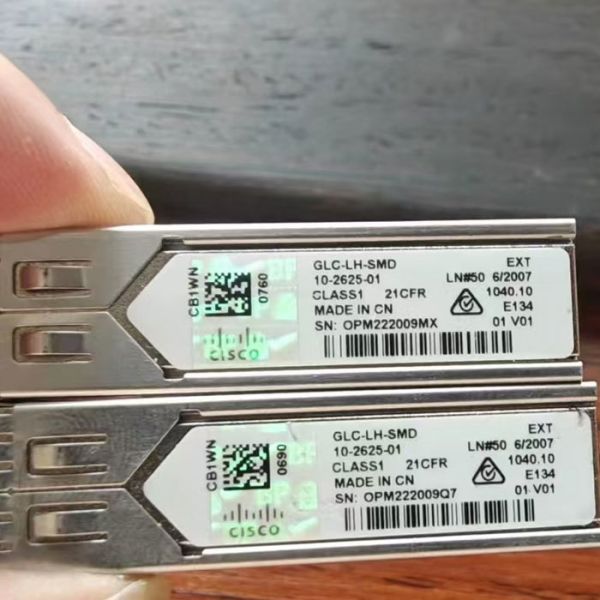

Green Laser LX Cisco SFP Module GLC-LH-SMD Gigabit Ethernet 1310nm
Green Laser LX Cisco SFP Module GLC-LH-SMD Gigabit Ethernet 1310nm
Specifications
Brand Name :
Cisco
Model Number :
GLC-LH-SMD Original Green Laser
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$89
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
500 pcs
Delivery Time :
3-5 working days
Packaging Details :
Cisco Optic Box
Detail :
Genuine New GLC-LH-SMD CISCO 1310nm 10KM LC Duplex SFP Module
Condition :
Sealed New Cisco
Transmission Distance :
Up to 10 km
Wavelength :
850 nm / 1310 nm / 1550 nm (depending on model)
Power Consumption :
≤ 1 W
Duplex :
Full Duplex
Compliance Standards :
RoHS, IEEE 802.3z
Operating Temperature :
-5°C to 70°C
Hot Swappable :
Yes
Data Rate :
1 Gbps
Interface :
Serial Optical Interface
Protocol Support :
Ethernet, Fibre Channel
Form Factor :
Small Form-Factor Pluggable
Compatibility :
Cisco switches and routers
Connector Type :
LC
Mtbf :
Over 1 million hours
Description

Genuine New Green Laser GLC-LH-SMD CISCO 1310nm 10KM LC Duplex SFP Module

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Single-Mode Fibers.

The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

Quick Specification:

The table provides cabling specifications for the SFPs that you install in the Gigabit Ethernet port.

Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).

Specific Data Sheet:

Product Name

GLC-LH-SMD

Form Factor

SFP

TX Wavelength

1310 nm

Reach

10 Km

Cable Type

SMF

Rate Category

1000 Base

Interface Type

LX

DDM

Yes

Connector Type

Dual-LC

The table provides cabling specifications for the SFPs that you install in the Gigabit Ethernet port.

Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (multimode and single-mode fiber) is 6.5 feet (2 m).

Product

Wavelength (nm)

Fiber Type

Core Size (μm)

Modal Bandwidth (MHz* Km)***

Operating Distance (m)

1000BASE-SX

(GLC-SX-MM D )

850

MMF

62.5

160 (FDDI-grade)

220 (722 ft)

62.5

200 (OM1)

275 (902 ft)

50

400 (400/400)

500 (1,640 ft)

50

500 (OM2)

550 (1,804 ft)

50

2000 (OM3)

1000 (3281 ft)

1000BASE-LX/LH

(GLC-LH-SMD)

1310

MMF*

62.5

500

550 (1,804 ft)

50

400

550 (1,804 ft)

50

500

550 (1,804 ft)

SMF

-**

-

10,000 (32,821 ft)

1000BASE-EX

1310

SMF

-**

-

40,000 (131,234 ft)

1000BASE-ZX

(GLC-ZX-SM )

(GLC-ZX-SMD )

1550

SMF

-

-

Approximately 70 km depending on link loss

1000BASE-BX-U

1310

SMF

-**

-

10,000 (32,821 ft)

1000BASE-BX-D

1490

SMF

-**

-

10,000 (32,821 ft)
