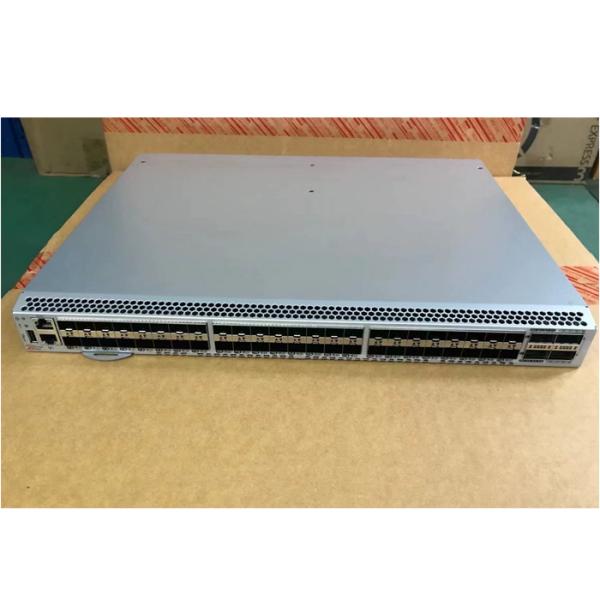

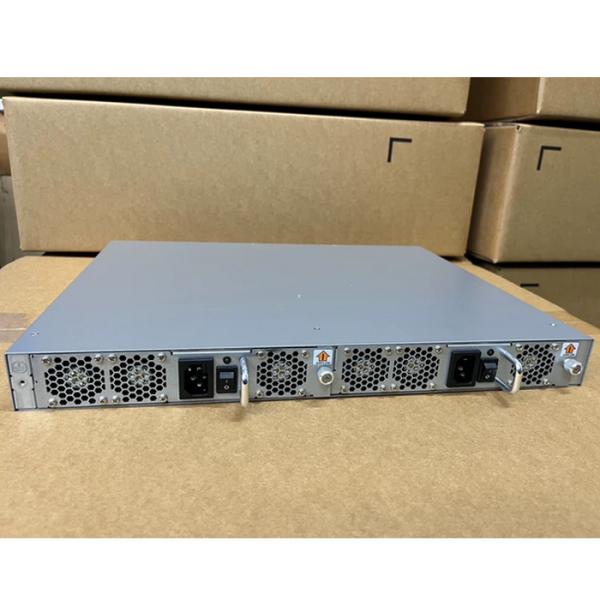

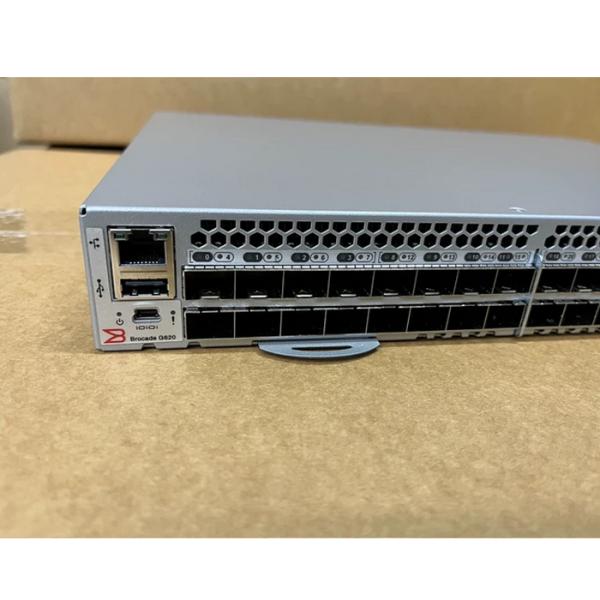

BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
BR-G620-24-16G-F Brocade G620 Switch , 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
Specifications
Brand Name :
Brocade
Model Number :
BR-G620-24-16G-F
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
$13200
Payment Terms :
T/T,Western Union
Supply Ability :
50 pcs
Delivery Time :
3 days
Packaging Details :
Brocade Box
Description :
BR-G620-24-16G-F Brocade G620 Switch, 24x16Gb/s SW SFP+/Port Side Intake Fan V1 V2
Stock Condition :
In Stock
Description

The Brocade BR-G620-24-16G-F delivers breakthrough performance for flash storage and NVMe environments. With 24 active 16Gb ports and included optical transceivers, organizations gain a ready-to-deploy solution that simplifies scale-out SAN architectures with a clear path to 64-port expansion via software licensing.

Key Specifications

Parameter

Specification

Active Ports (Included)

24 x 16Gb/s SFP+ with 24 x 16Gb SWL SFP+ transceivers (switch supports up to 32G)

Maximum Ports

64 (48 SFP+ + 4 QSFP via PoD licenses)

Aggregate Bandwidth

2 Tbps

Port Speeds (Auto-sensing)

4 / 8 / 10 / 16 / 32 Gbps; 10G fixed programmable

QSFP Ports

4 ports, up to 128 Gbps (4x32G) per port

Form Factor / Airflow

1U rack-mountable, front-to-back airflow

Power

Dual hot-swappable redundant AC (90-264V)

Max Power Consumption

205W (fully populated); 85W (chassis only)

Dimensions (W x H x D)

440.0 x 43.9 x 355.6 mm (17.32 x 1.73 x 14.00 in.)

Weight

7.07 kg (without optics) / 8.41 kg (fully populated)

Core Features

✓ 24 active 16G ports with included transceivers
✓ Pay-as-you-grow to 64 ports via PoD
✓ 2 Tbps non-blocking bandwidth
✓ Auto-sensing 4/8/10/16/32G speeds
✓ 4 Q-Flex ports (up to 128G each)
✓ Dual redundant hot-swap power
✓ Front-to-back airflow design
✓ Fabric Vision technology
✓ VM Insight for virtualized environments
✓ ClearLink Diagnostics (D_Port)
✓ NVMe over Fibre Channel ready
✓ Built-in latency/IOPS monitoring

Target Applications

• Enterprise data centers
• Flash & NVMe storage networks
• Virtualized server environments
• Cloud computing infrastructure
• High-performance computing
• Scale-out SAN fabrics
• Business-critical applications
• Database clustering

Performance & Fabric Specifications

Fibre Channel Performance

Parameter

Specification

Line Speeds (Full Duplex)

4.25 / 8.5 / 10.53 / 14.025 / 28.05 Gb/s

Auto-sensing (SFP+)

4 / 8 / 10 / 16 / 32 Gbps; 10G fixed-programmable

Auto-sensing (QSFP)

4x32 / 4x16 / 4x8 / 4x4 Gbps (FOS v8.2.0+)

Aggregate Bandwidth

2 Tbps

Latency (local switching)

<780 ns (including FEC); 1 us per compression node

Maximum Frame Size

2,112-byte payload

Frame Buffers

15,360 dynamically allocated

Classes of Service

Class 2, Class 3, Class F

ISL Trunking & Fabric

Parameter

Specification

SFP+ ISL Trunk

Up to 8 x 32G ports per trunk; 256 Gbps per ISL trunk

QSFP ISL Trunk

Up to 2 x 128G QSFP ports per trunk

Load Balancing

Exchange-based with Dynamic Path Selection (DPS)

Fabric Architecture

Full-fabric, max 239 switches

Certified Scale

6,000 active nodes; 56 switches, 19 hops

Port Types

F_Port, E_Port, M_Port, D_Port, EX_Port

Access Gateway Mode

40 F_Ports + 8 NPIV-enabled N_Ports

FICON Support

Supported

Management Interfaces

Interface

Description

Ethernet

10/100/1000 Mbps RJ-45 management port

In-band

Fibre Channel in-band management

Serial Console

RJ-45 serial port

USB

1 x USB for log downloads / firmware upgrades

Management Software

Fabric Vision, SANnav, Web Tools, EZSwitchSetup

Advanced Capabilities

Feature

Description

VM Insight

VM-level visibility in storage fabric for performance monitoring and anomaly detection

Fabric Vision

Automated monitoring, diagnostics, and predictive analytics with policy-based alerting

ClearLink D_Port

Pre-deployment cable/port validation and benchmarking

Built-in Instrumentation

Real-time device latency and IOPS monitoring

Forward Error Correction

Data integrity assurance over optical links

NVMe over FC

Seamless integration with next-generation NVMe flash arrays

Hardware & Environmental Specifications

Physical & Power

Parameter

Specification

Dimensions (W x H x D)

440.0 x 43.9 x 355.6 mm (17.32 x 1.73 x 14.00 in.)

Form Factor

1U rack-mountable (19-inch EIA)

Weight (chassis + PSUs, no optics)

7.07 kg (15.59 lb)

Weight (fully populated)

8.41 kg (18.54 lb)

Rack Clearance (front / rear)

3 in / 3 in (7.6 cm / 7.6 cm)

Power Supplies

Dual hot-swappable redundant with integrated cooling fans

AC Input Range

90V to 264V AC

Max Input Current

3.5A

Line Frequency

47 Hz to 63 Hz

Max Power (64 ports + optics)

205W

Idle Power (chassis only)

85W
