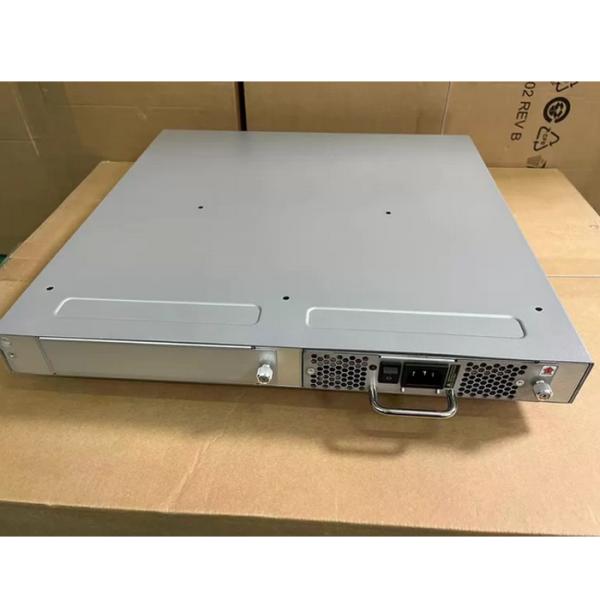

BR-G610-24-32G-0, Brocade G610 Switch , Brocade San Switch With 24 Ports 132Gbps SWL SFP+ Transceiver
BR-G610-24-32G-0, Brocade G610 Switch , Brocade San Switch With 24 Ports 132Gbps SWL SFP+ Transceiver
BR-G610-24-32G-0, Brocade G610 Switch , Brocade San Switch With 24 Ports 132Gbps SWL SFP+ Transceiver
BR-G610-24-32G-0, Brocade G610 Switch , Brocade San Switch With 24 Ports 132Gbps SWL SFP+ Transceiver
Specifications
Brand Name :
Brocade
Model Number :
BR-G610-24-16G-0
Certification :
CE
Place of Origin :
Czech
MOQ :
1pc
Price :
$6320
Payment Terms :
T/T,Western Union
Supply Ability :
100 pcs
Delivery Time :
3 days
Packaging Details :
Brocade Box
Description :
Brocade G610 San Switch With 24 ports 16Gbps SWL SFP+ Transceivers
Stock Condition :
New, In Stock
Description

BR-G610-24-32G-0, Brocade G610 Switch, Brocade San Switch With 24 ports 132Gbps SWL SFP+ Transceiver


Product Overview

The Brocade G610 switch (Model: BR-G610-24-32G-0) is an affordable, flash-ready Fibre Channel switch that delivers enterprise-class availability for small to mid-sized businesses. Purpose-built for modern storage environments, it provides high-throughput, low-latency connectivity with the flexibility to scale on demand.

This configuration includes all 24 active ports with 24 x 32 Gbps Shortwave (SWL) SFP+ transceivers pre-installed. All 24 ports are fully activated out of the box, delivering maximum connectivity and bandwidth for demanding storage environments.

Key Highlights

• Affordable Gen 6 Fibre Channel switch with all 24 ports activated and 24 x 32G SWL SFP+ transceivers

• Flash-ready performance — seamlessly transition to next-generation NVMe flash arrays

• Full 24-port activation delivers maximum port density and bandwidth out of the box

• Enterprise-class reliability with Brocade Fabric Vision technology

• Simple three-step installation with point-and-click user interface

• 768 Gb/s aggregate bandwidth with auto-sensing 4/8/16/32 Gbps port speeds

Package Contents

• Brocade G610 Switch with all 24 ports activated

• 24 x Brocade 32 Gbps SWL SFP+ transceivers (pre-installed)

• 1 x Fixed AC power supply with integrated cooling fans

• Rack mount kit

• Brocade Web Tools, Zoning, and EGM software license

Technical Specifications

System Architecture

Fibre Channel Ports

24 ports total, all 24 ports activated

Port Speeds

Auto-sensing 4, 8, 16, and 32 Gbps

Aggregate Bandwidth

768 Gb/s end-to-end full duplex

Maximum Fabric Latency

< 780 ns (including FEC)

Maximum Frame Size

2,112-byte payload

Frame Buffers

2,000 dynamically allocated

Classes of Service

Class 2, Class 3, Class F (inter-switch frames)

Port Types

F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic)

Access Gateway Mode

F_Port and NPIV-enabled N_Port

Scalability

Full-fabric, maximum 239 switches

Certified Maximum

6,000 active nodes; 56 switches, 19 hops

ISL Trunking

Frame-Based Trunking

Up to 8 x 32G SFP+ ports per ISL trunk

Maximum ISL Bandwidth

256 Gb/s per ISL trunk

Load Balancing

Exchange-based Dynamic Path Selection (DPS)

Physical Specifications

Dimensions (W x H x D)

428.8 x 42.9 x 306.6 mm (16.88 x 1.69 x 12.07 in.)

Weight (without transceivers)

4.20 kg (9.26 lb)

Weight (fully populated)

4.80 kg (10.58 lb)

Rack Units

1U

Airflow

Port-side exhaust
