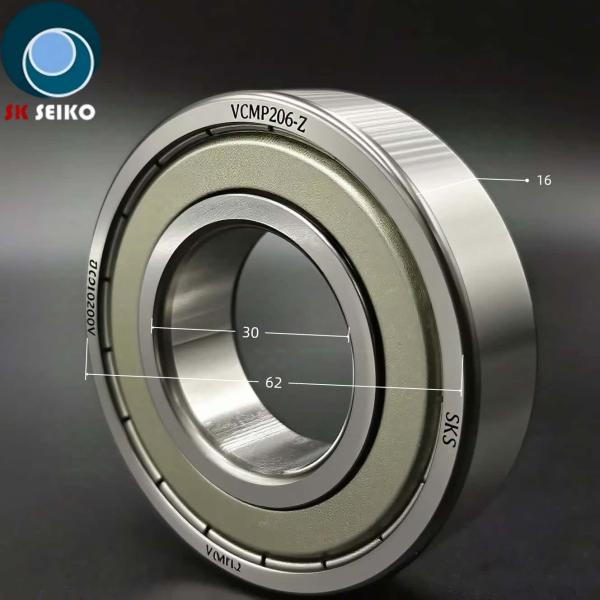

VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD Panel
VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD Panel
VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD Panel
VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD Panel
Specifications
Brand Name :
SKS
Model Number :
VCMP206-Z (C206) 30*62*16
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
24 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2000 units per month
Delivery Time :
5-8 work days
Certification :
ISO9001 SGS
Packaging Details :
Plastic bag ,inner box ,Buffer cushion, outer cartons
Max Speed :
6000 RPM
Bearing Size :
30mm x 62mm x 16mm
Compatibility :
Fits most vacuum pump models
Warranty :
1 year
Sealing :
Double Sealed
Lubrication :
Grease
Description

VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor Photovoltaic PV Lithium Battery Li-ion Battery Chemical Industry Pharmaceutical Industry LCD Panel

Pumps bearing specifications:

Bearing systems for dry vacuum pumps, precision pumps, and other specialized pump configurations. Suited for automotive applications including electric drive systems (E-Drive), lidar (LiDAR), and turbine superchargers. In industrial settings, these bearings are compatible with dry vacuum pumps, molecular pumps, machine tool spindles, chemical fiber winding machinery, and humanoid robot actuators.

Product Features:

Less vibration, Less noise, Antirust, Corrosion resistant

High-Precision Machining ,Tolerance of precision grade P4 (ABEC 5)

Maximum rotating speed up 6000 rpm

Key Advantages of Our Pumps Bearing Products:

Advanced Ceramic Balls:Customized ceramic rolling elements enhance oil film thickness, reduce contact stress, and optimize friction performance for smoother operation.

Specialized Heat Treatment :Proprietary process minimizes residual austenite content, ensuring dimensional stability under high-temperature conditions.

Advanced Sealing Design:Dual-layer seals maintain clean lubrication while blocking contaminants, protecting bearing raceways from wear.

Long Service Life:Under optimized lubrication, noise life is extended, oil oxidation is mitigated, and surface pitting is alleviated.

Product Parameters:

NO.

Bearing type

Inside Diameter

Outer Diameter

Inner ring width

Shield

Retainer(Cage)

Balls material

d

D

B

1

VCMP 206*

30

62

16

Double

shield

PF

ceramics

2

VCMP209

36.5

85

19

Double shield

IRON Retainer

ceramics

3

VCMP114

45

110

19

Double

shield

IRON Retainer

ceramics

4

VCMP211

55

100

21

Double

shield

PF

ceramics

5

VCMP212

45

110

22

Double

shield

PF

ceramics

6

VCMP6007*

35

62

14

Double

shield

PF

ceramics

7

C104-2RZ

20

42

12

Double shield

PF

ceramics

8

626B

6

19

6

Double shield

special designing

ceramics

9

624

4

13

5

Double

shield

special designing

ceramics

10

3307

35

80

34.9

Double

shield

IRON Retainer

ceramics

VCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD PanelVCMP206-Z 30*62*16 Vacuum Pump Bearing C206 Dry VCMP Bearing Semiconductor PV Li-Ion Battery Chemical Industry LCD Panel
