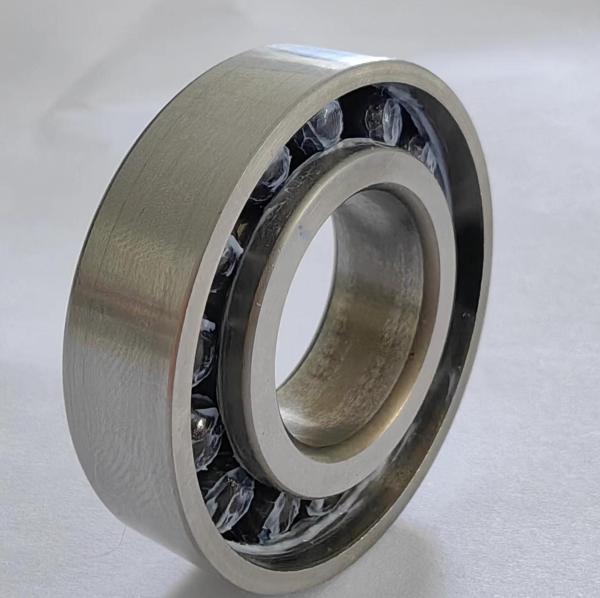

VCMP3307 35*80*34.9 Vacuum Pump Bearing Dry VCMP Bearing PV Li-Ion Battery Chemical Industry LCD Panel
VCMP3307 35*80*34.9 Vacuum Pump Bearing Dry VCMP Bearing PV Li-Ion Battery Chemical Industry LCD Panel
Specifications
Brand Name :
SKS
Model Number :
VCMP3307 35*80*34.9
Place of Origin :
CHINA
MOQ :
50 pcs
Price :
19.5USD
Payment Terms :
L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability :
2000 units per month
Delivery Time :
5-8 work days
Certification :
ISO9001 SGS
Packaging Details :
Plastic bag ,inner box ,Buffer cushion, outer cartons
Limiting Speed :
5000 rpm
Application :
Vacuum Pumps
Precision Rating :
ABEC-5
Cage Material :
IRON Retainer
Model :
VCMP3307
Color :
silver and black
Description

VCMP3307 35*80*34.9 Vacuum Pump Bearing Semiconductor Photovoltaic (PV) Lithium Battery (Li-ion Battery) Chemical Industry Pharmaceutical Industry LCD Panel

Pumps bearing for many models of Dry Vacuum Pumps, Precision Pumps etc.

Pumps bearing specifications:

Pump bearings are available in various models, including dry vacuum pumps and precision pumps. In the automotive industry, they are applicable to electric drive systems (E-Drive), LiDAR, and turbine chargers. Within industrial applications, they are used in dry vacuum pumps, molecular pumps, machine tool spindles, textile winding machines, and humanoid robot actuators.

Product Features:

Tolerance of precision grade P4 (ABEC 5)

Regular rotating speed 4500-6000 rpm

Maximum rotating speed up 6000 rpm

Special design of sealed structure, superiorly dust-proof

Less vibration, Less noise, Antirust, Corrosion resistant

Key Advantages of Our Pumps Bearing Products:

Specialized Heat Treatment :Proprietary process minimizes residual austenite content, ensuring dimensional stability under high-temperature conditions.

Precision Manufacturing :In-house grinding technology achieves micrometer-level accuracy, guaranteeing rotational precision and minimizing noise.

Advanced Sealing Design :Dual-layer seals maintain clean lubrication while blocking contaminants, protecting bearing raceways from wear.

Clean Smelting Process :Unique smelting techniques reduces harmful non-metallic inclusions, improving surface integrity and resistance to corrosion.

Long Service Life :Under optimized lubrication, noise life is extended, oil oxidation is mitigated, and surface pitting is alleviated.

Product Parameters:

NO.

Bearing type

Inside Diameter

Outer Diameter

Inner ring width

Shield

Retainer(Cage)

Balls material

d

D

B

1

VCMP 206*

30

62

16

Double

shield

PF

ceramics

2

VCMP209

36.5

85

19

Double shield

IRON Retainer

ceramics

3

VCMP114

45

110

19

Double

shield

IRON Retainer

ceramics

4

VCMP211

55

100

21

Double

shield

PF

ceramics

5

VCMP212

45

110

22

Double

shield

PF

ceramics

6

VCMP6007*

35

62

14

Double

shield

PF

ceramics

7

C104-2RZ

20

42

12

Double shield

PF

ceramics

8

626B

6

19

6

Double shield

special designing

ceramics

9

624

4

13

5

Double

shield

special designing

ceramics

10

3307

35

80

34.9

Double

shield

IRON Retainer

ceramics
