Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-1330
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
500-800USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Display :
3 "TFT color screen
Resolution :
960*480
Viewing angle :
70±2º
Depth of field :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Pixel :
2 million
Host key :
Freeze frame, take photo and vedio
Light source :
Built-in high power waterproof LED light source
Camera :
Dual anti-fog, intubation without blind area
Battery working time :
continous use ≥ 350 mins
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Description

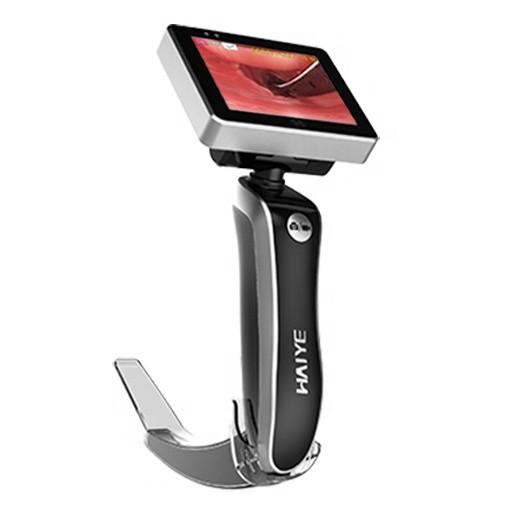

Electronic Endoscope Video Laryngoscope With Built-in high power waterproof LED light source

HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.

◆It has high precision and full mold production process, and has long service life.

◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.

◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;

◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

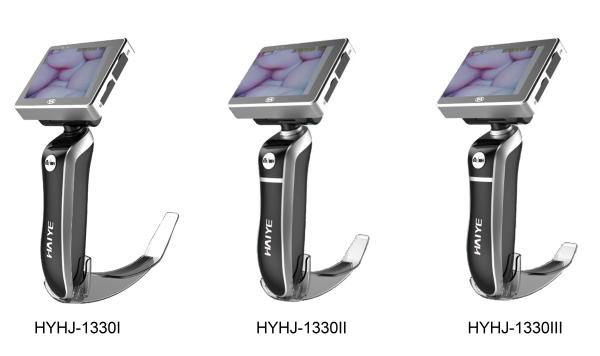

◆ The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.

◆ The laryngoscope blade is sterilized in one time to prevent cross infection.

◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good

Electronic Endoscope Video Laryngoscope With Built-in high power waterproof LED light source

Technical Feature

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70°± 2°
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
Blades aseptic packaging for single use

Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Electronic Endoscope Video Laryngoscope With Built-in high power waterproof LED light source


Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.


Welcome to inquiry if you have any interests!

OEM order is acceptable.
