Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
>850/set
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8days
Packaging Details :
cartoon/protective box
Material :
medical-grade metal
Camera :
Digital camera system
Blades :
reusable, different sizes
Carema Resolution :
1600*1200
Display :
3 "TFT color screen
Viewing angle :
70°± 2°
Depth of field :
3~100mm
Battery working time :
continous use ≥ 350 mins
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Description

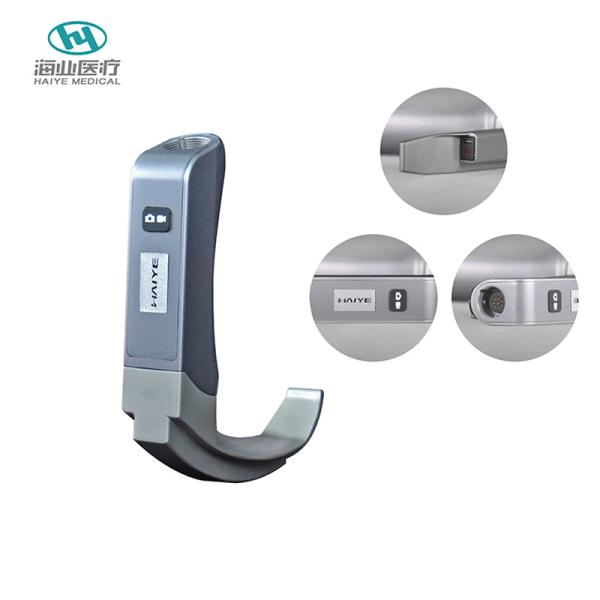

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

HAIYE HYHJ-KC

  • The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
  • Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
  • Digital camera system with high - resolution display, make intubation easier;

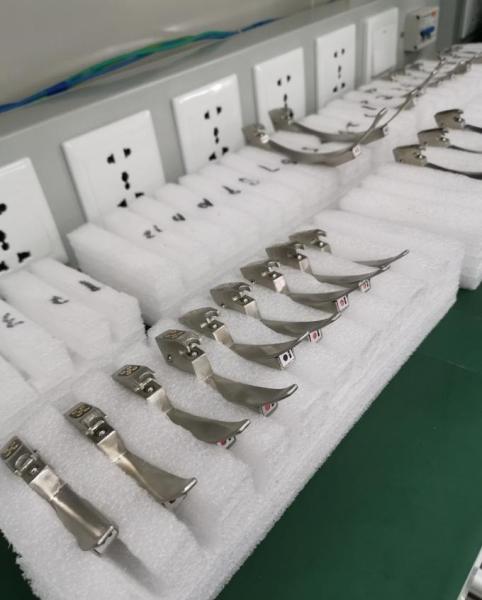

  • The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
  • Photo, video, freeze frame, storage, external play, large capacity battery, complete function

Technical feature

Name Technical term Technical Index

Machine

Resolution 1600 x 1200
Pixels 2 million
Display 3 "TFT color screen
Viewing angle 70°± 2°
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
laryngoscope Suit for different oral structure

Power Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti FogDigital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti FogDigital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

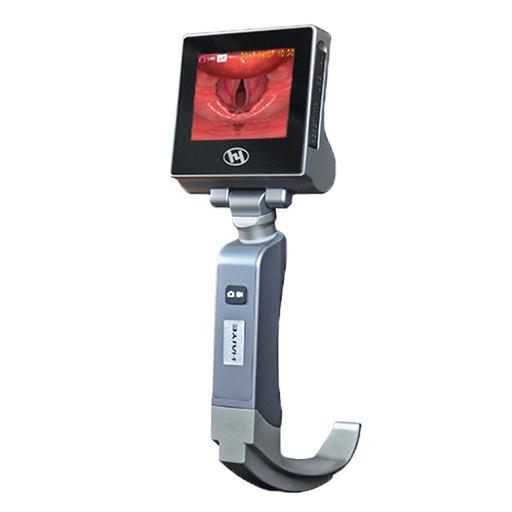

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog


Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are wiedly used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...


Welcome to inquiry if you have any interests!

OEM order is acceptable.
