304 Stainless Steel Electronic Video Endoscope Laryngoscope Medical Device

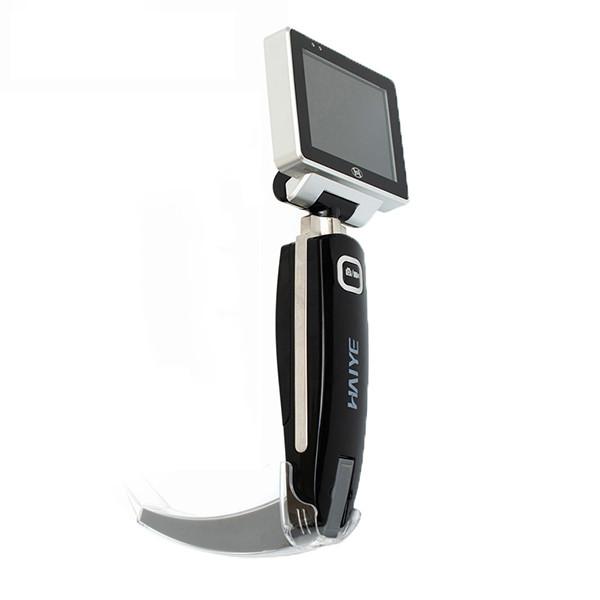

HYHJ-1320 medical visual laryngoscope is a forward-looking product of our company. This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration,It is a tailor-made for the people's conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.

◆ With high precision, full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;

◆ With 3 inch TFT color display screen, and can Large angle rotation up and down, left and right;

◆ The machine adopts imported high-capacity lithium battery, lasts for more than 300 minutes;

◆ With pictures, video, freeze and other functions, and can store and export;

◆ Unique dual anti fog function, that is, open and use, no preheating,intubation without blind area ;

◆ With three different type of cameras , three different blades are available for adults, children and newborns.

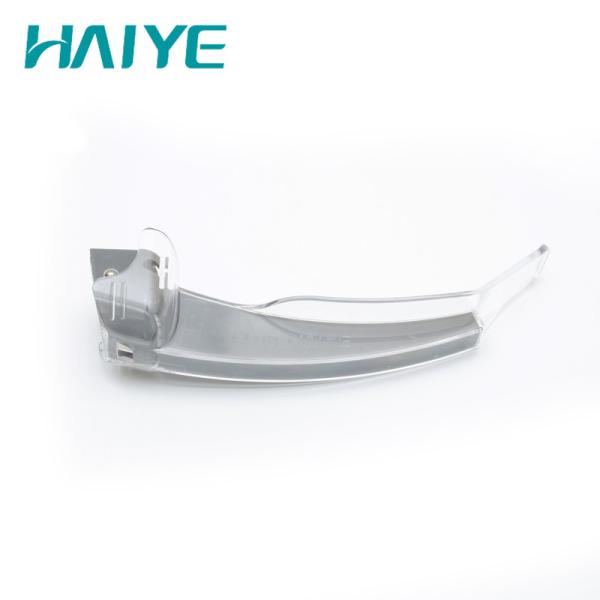

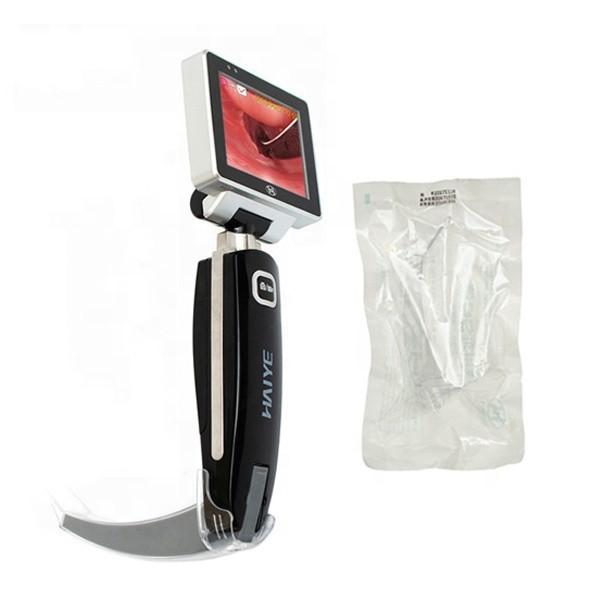

◆ Disposable packing and sterilizing of blade to prevent cross infection;

◆ Mature, reliable, full-featured electronic solutions and high-definition digital camera system, with 3 inch TFT color display screen, the image restoration effect is good.

Parameters of laryngoscope

1. Vertical distance from the laryngoscope camera to the front of blade:

Large: ≤ 35mm, medium: ≤ 32mm; small: ≤ 28mm

2. Blade length:

Large: 119mm, medium: 95mm; small: 78mm

3. Blades thickness(camera position):

Large/ Medium/ Small: ≤ 10mm

4. Blades angle(degree):

Large: 41, medium: 35; small: 19

Technical feature

Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...

Welcome to inquiry if you have any interests!

OEM order is acceptable.

Attn: Kristen Shi
