Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-1320
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
750-1200USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box/box size: 415*110*345mm
Product name :
Disposable Video Laryngoscope
Blades type :
T1, T2, T3 medical material
Carema type :
3 differnt size: adult, children, new born
Screen :
3.0 Inch color display
Recharge :
over 800 times
Battery :
lithium ion battery,3.7V
Input :
Usb, TF card (Hot plug)
Light source :
Built-in high power waterproof LED
Roatate angle :
front to back: 0~135 º, left to right: 0~275º
OEM service :
Custom logo and packing box
OEM quantity :
at least 50 units
Description

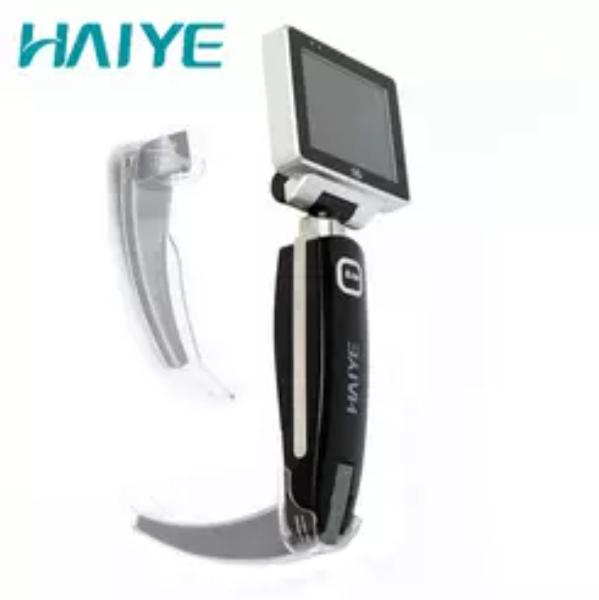

Waterproof LED Light Video Laryngoscope ISO13485 For Pediatric Dentistry

HYHJ-1320: ONE for all Oral structures

Product Features:

Intubation with high precision full mold manufacturing process, 304 stainless steel reinforcement, not easy to damage, long service life;

The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.

It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;

Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;

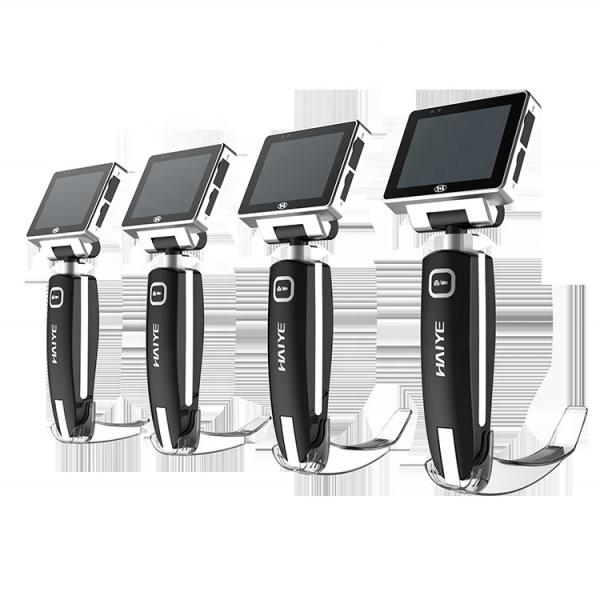

It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.

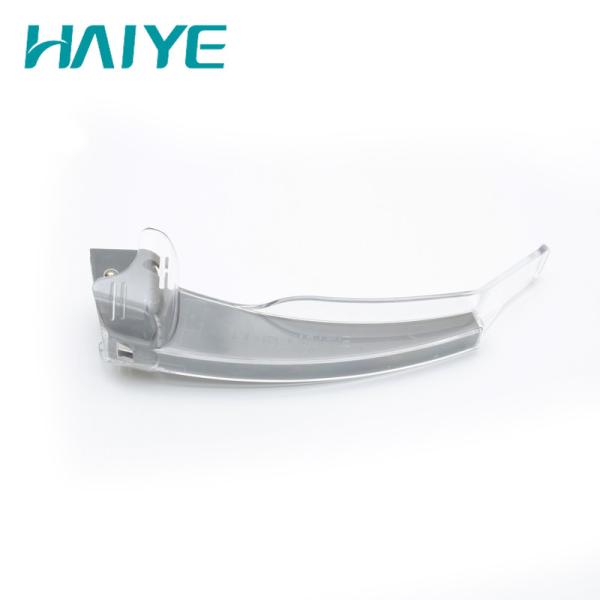

Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Carema Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º
laryngoscope aseptic packaging for single use

Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continous use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Waterproof LED Light Video Laryngoscope ISO13485 For Pediatric DentistryWaterproof LED Light Video Laryngoscope ISO13485 For Pediatric Dentistry


Application

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).

It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

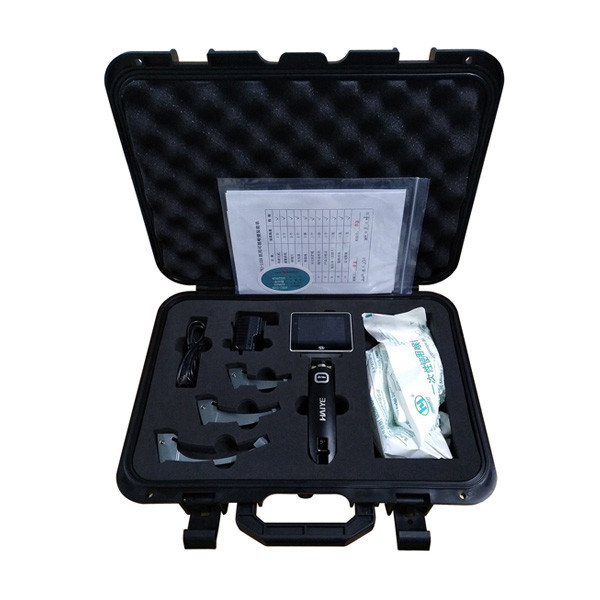

Packing & Shipping

Waterproof LED Light Video Laryngoscope ISO13485 For Pediatric Dentistry


Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.


Welcome to inquiry if you have any interests!

OEM order is acceptable.
