Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-1330
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Xi'an China
MOQ :
1SET
Price :
450-800USD/SET
Payment Terms :
T/T
Supply Ability :
5000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product Name :
HD Video Larygoscope
Material :
304 stainless steel, plastic
Display :
3 "TFT color screen
Resolution :
960*480
Pixel :
2 million
Viewing angle :
70°± 2°
Depth of field :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Warranty :
1 Year
OEM service :
available
OEM MOQ :
50 units
Description

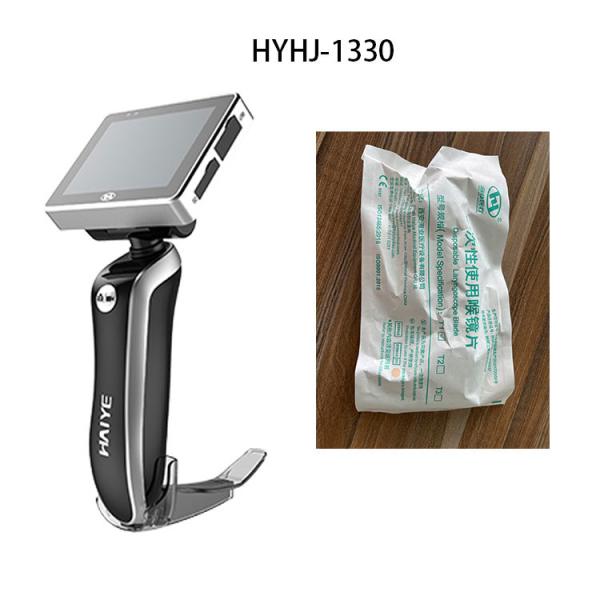

Anti Fog Fiber Optic Video Laryngoscope USB 3.0 Inch HD Image

Anesthesia video laryngoscope characteristics is obvious, the operate method is simple and easy to learn, also it’s has less endotracheal intubation damage; the material is adopted by the special prevent mist processing material, which not easily affected by respiratory tract environment temperature difference with the outside world and can improve the success rate of tracheal intubation.

  • The more fully protected camera and optical cable,
  • smart portable machine,
  • the comfortable handle grip,
  • dual anti-fog peephole and lens,
  • no waiting booting ,
  • easily retain audio and video data,
  • photography with one button switch.

HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.

Technical feature

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope Suit for different oral structure, aseptic packaging for single use

Power Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Anti Fog Fiber Optic Video Laryngoscope USB 3.0 Inch HD ImageAnti Fog Fiber Optic Video Laryngoscope USB 3.0 Inch HD Image


Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...

Anti Fog Fiber Optic Video Laryngoscope USB 3.0 Inch HD Image


Welcome to inquiry if you have any interests!

OEM order is acceptable.
