5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank
Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
XI'AN CHINA
MOQ :
1SET
Price :
700-1500USD/SET
Payment Terms :
T/T
Supply Ability :
5000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product name :
Hospital Medical Digital Video Laryngoscope
Display :
3 "TFT color screen
Resolution :
960*480
Pixel :
2 million
Carema Resolution :
1600 x 1200
Hand Shank :
Ergonomic design
Light source :
waterproof LED light illumination：≥3000lux
Roatate angle :
front to back: 135 º, left to right: 275 º
Blades :
5 Mac + Miller Blades
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Description

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;

Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;

Digital camera system with high - resolution display, make intubation easier;

The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;

Photo, video, freeze frame, storage, external play, large capacity battery, complete function

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

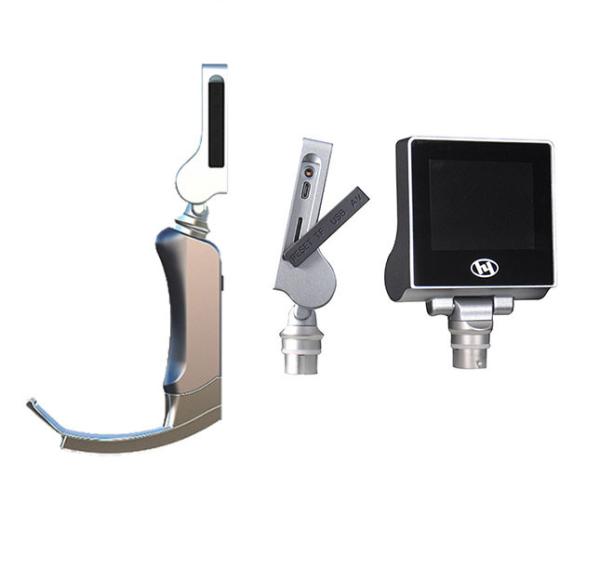

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

Technical feature

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope 5 resuable blades suit for different oral structure

Powder Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.

5 Mac Miller Blades Medical Digital Handheld Video Laryngoscope Ergonomic Hand Shank

Welcome to inquiry if you have any interests!

OEM order is acceptable.
