USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
XI'AN CHINA
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
5000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Product Name :
Reusable Video Larygoscope
Display :
3 "TFT color screen
Resolution :
960*480
Pixels :
2 million
Viewing angle :
70°± 2°
Depth of fields :
3~100mm
Rotate angle :
front to back: 0~135°, left to right: 0~275°
Powder input :
100 - 240V50/60Hz,0.35A
Powder Output :
5V,2000mA, USB output
Cycle life of battery :
> 800 times
Charging time :
<4h
Warranty :
1 Year
OEM service :
Yes, qty > 50 units
Description

USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments

Description of Products:

The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.

Product features:

simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.

Product configuration:

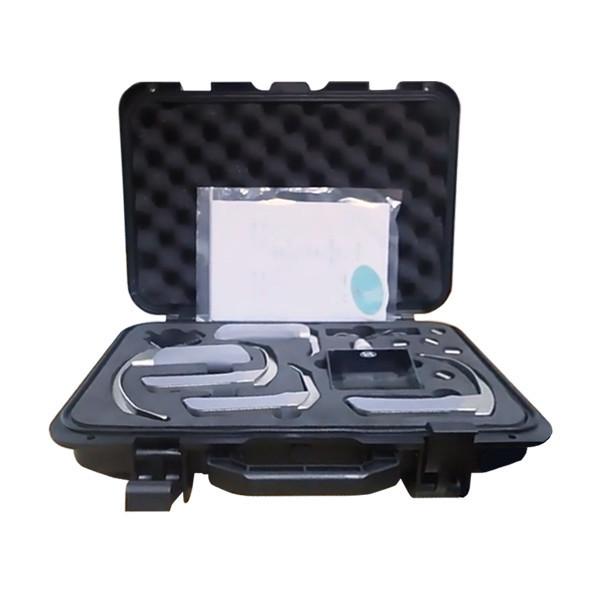

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).

USB Output Rigid Anesthesia Video Laryngoscope Set ENT InstrumentsUSB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments

Technical feature

Name Technical term Technical Index

Machine

 Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm

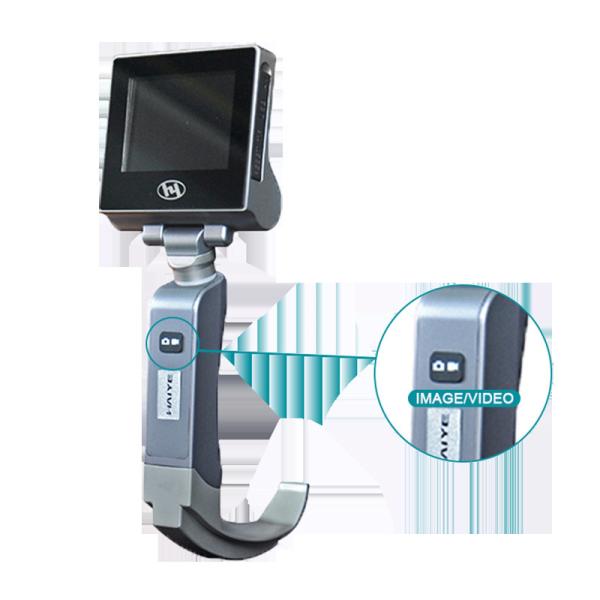

Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope 5 resuable medical stainless steel blades, suit for different oral structure

Power Adapter

 Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

 Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

 Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

USB Output Rigid Anesthesia Video Laryngoscope Set ENT InstrumentsUSB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments

Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.

Welcome to inquiry if you have any interests!

OEM order is acceptable.

Attn: Kristen Shi
