Specifications
Brand Name :
HAIYE
Model Number :
HYHJ-1330
Certification :
CE,FDA,ISO13485
Place of Origin :
China Manufacturer
MOQ :
1set
Price :
USD 500/SET
Payment Terms :
T/T
Supply Ability :
1000SET
Delivery Time :
5-8 work days
Packaging Details :

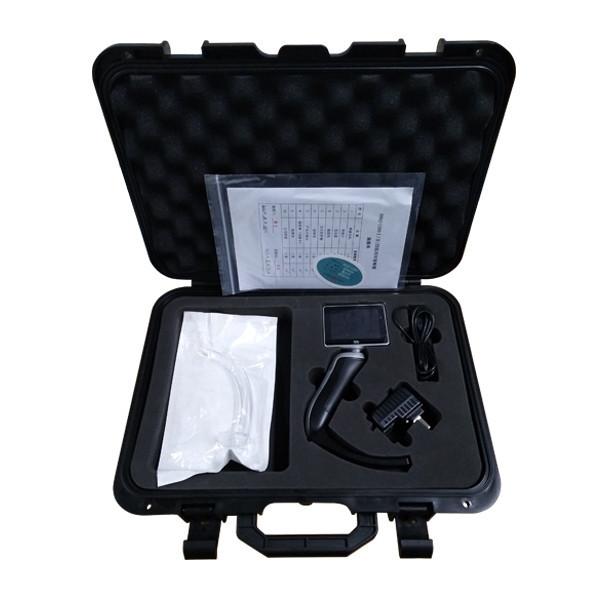

protective box + carton
Product name :
Disposable Video Laryngoscope
Application :
Hospital ENT, ICM, Emergancy...
Suit people :
Adult, Children, Neonates
Blades type :
Disposable laryngoscope tablets
Battery type :
lithium ion battery
Viewing angle :
70 ± 2 degree
Depth of field :
3~100mm
Charging time :
<4h
Description

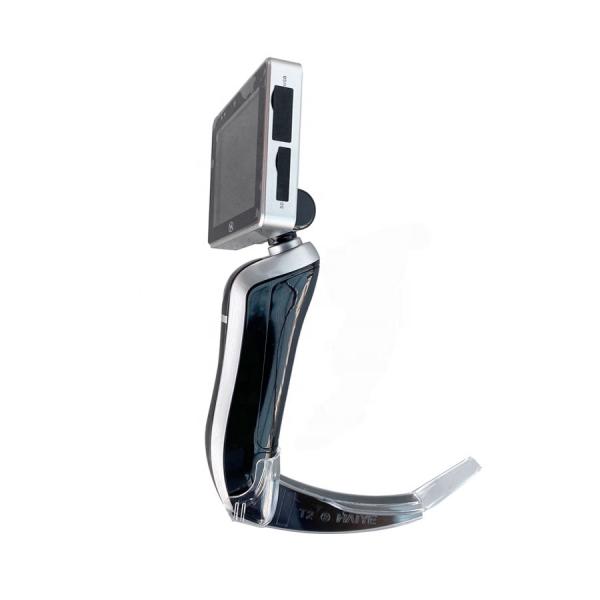

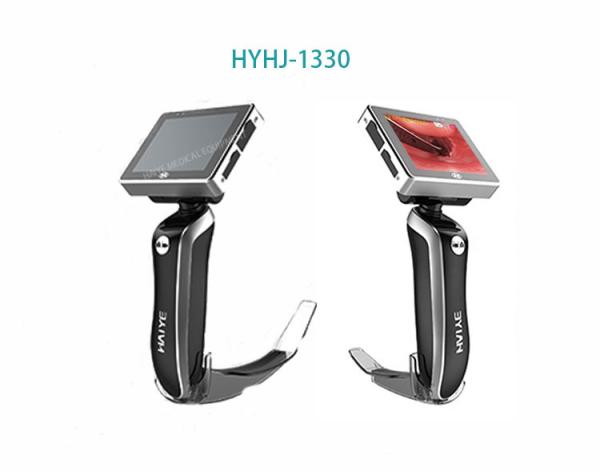

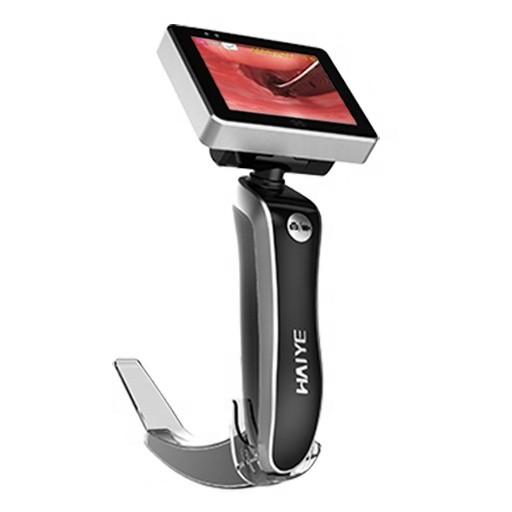

Hospital ENT Disposable Video Laryngoscope For Neonates

Product Features:

Intubation with high precision full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;

The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.

It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;

Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;

It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.

Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.

Better visibility Disposable Laryngoscope Tablets Video Laryngoscope For Adult, Children, Neonates

Technical data

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Carema Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º
Blades Suit for different oral structure,aseptic packaging for single use

Power Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Better visibility Disposable Laryngoscope Tablets Video Laryngoscope For Adult, Children, NeonatesBetter visibility Disposable Laryngoscope Tablets Video Laryngoscope For Adult, Children, NeonatesBetter visibility Disposable Laryngoscope Tablets Video Laryngoscope For Adult, Children, Neonates

Why Choose Vedio Laryngoscope?

1. Any doctors familar with tradional laryngoscope can smoothly use it;

2. Showing the internal oral structure very clearly, easily capture the photo and vedio;

3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;

4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;

5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;

6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;

7. Lighter operating force,less inquiry,and smoother hemodynamics.


Welcome to inquiry if you have any interests!

OEM order is acceptable.
