Specifications
Brand Name :
HAIYE
Model Number :
HYHJ-KC
Certification :
CE,FDA,ISO13485
Place of Origin :
Xi'an China Manufacturer
MOQ :
1set
Price :
1000~1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000SET
Delivery Time :
5-8 work days
Packaging Details :
protective box + carton
Product name :
Opration Video Laryngoscope
Display :
3"TFT Color display
Resolution :
960 x 480
Pixel :
2 million
Viewing angle :
70 degree
Depth of field :
3~100mm
Carema :
Anti Fog Lens
Battery Charging time :
<4h
Cycle life of battery :
> 800 times
Warranty :
1 year
OEM service :
Yes, qty > 50 units
Blades :
reusable
Description

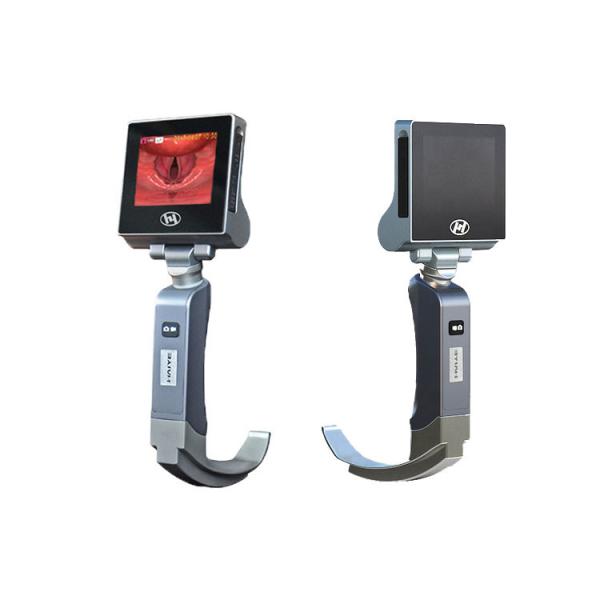

HYHJ-KC Operation Pediatric Video Laryngoscope With Anti Fog Lens Camera Blades

  • Powder Button: On/Off and freeze frame
  • 3’’ high definition display Display module, image clearer; metal alloy frame, large rotate angle f
  • Ergonomic design, more comfortable grip Alloy handle
  • Suitable for different ways of disinfection, reusableMedical stainless steel
  • Charging and data transferUSB port:
  • Long press-vedio recording, Short press-take photo, Photo button/Shutter
  • 2 million pixel double anti-fog carema system

HYHJ-KC Operation Pediatric Video Laryngoscope With Anti Fog Lens Camera Blades

Advantages of HYHY-KC video laryngoscope

The main advantage of ideo laryngoscopy for each intubation is to make patient more comfortable. While less force is used during intubation, less flexing needed. The adverse effects: bleeding, neck problemstooth damage can rare happen. Video laryngoscope can less prevalent the simple discomfort : soar throat, hoarseness during traumatic intubation procure.

  • HYHJ-KC Video Laryngoscope Reduces risk during failed first attempts at intubation
  • HYHJ-KC Video Laryngoscope Reduces risk during damage to the vocal cords
  • HYHJ-KC Video Laryngoscope Reduces risk during oesophageal intubation
  • HYHJ-KC Video Laryngoscope Reduces risk during damaging the teeth
  • HYHJ-KC Video Laryngoscope Reduces risk duringdamage or bleeding of the mucous membrane
  • HYHJ-KC Video Laryngoscope Reduces risk during conversion to advanced intubation methods
  • HYHJ-KC Video Laryngoscope Reduces risks during cervical spine due to hyper extension
  • HYHJ-KC Video Laryngoscope Better image to place the endotracheal tube
  • HYHJ-KC Video Laryngoscope is Easier determine of the correct depth of the tube
  • HYHJ-KC Video Laryngoscope Shortens the time required for and reduces risks involved with complex intubation
  • HYHJ-KC Video Laryngoscopeis User-friendly. Only two kyes to operate
  • HYHJ-KC Video Laryngoscope is Assists with the enhancement of training methods of the intubation procedure
  • HYHJ-KC Video Laryngoscope is Suitable for all oral structures
  • HYHJ-KC Video Laryngoscope is Very economical

HYHJ-KC Operation Pediatric Video Laryngoscope With Anti Fog Lens Camera BladesHYHJ-KC Operation Pediatric Video Laryngoscope With Anti Fog Lens Camera Blades

Technical feature

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Carema Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º

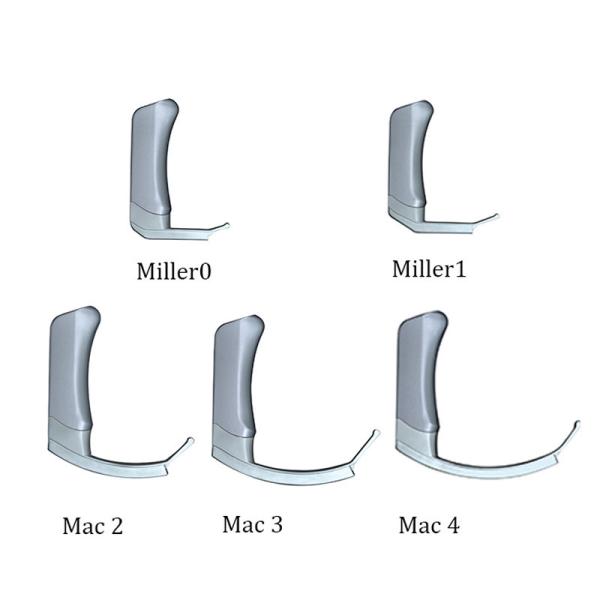

laryngoscope 5 reasuable blades suit for different oral structure

Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continous use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Welcome to inquiry if you have any interests!

OEM order is acceptable.
