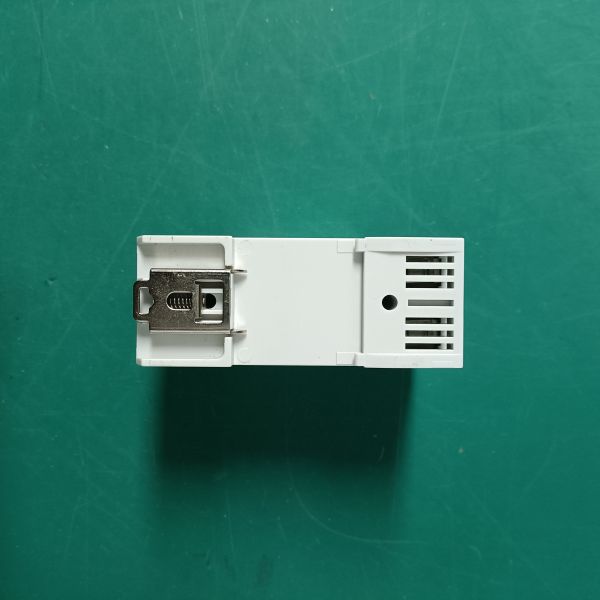

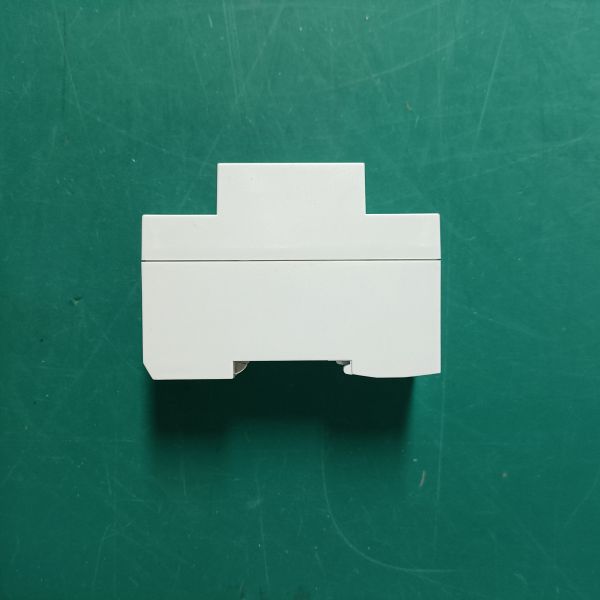

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
Specifications
Brand Name :
BRITEC
Model Number :
BRCI-63
Place of Origin :
China
Certification :
ISO9001
MOQ :
10 PCS
Packaging Details :
carton
Delivery Time :
15 days after receipt of deposit
Payment Terms :
TT
Supply Ability :
500000 per month
Function :
Coordination Inductor
Warranty :
1 Years
L×W×H (mm) :
36x90x65
Design :
OEM.ODM Designs
weight :
270g
Printing :
As Your Requests
Description

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductorBRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

Product characteristics:

Specification BRCI-35 BRCI-63
Description Coordination inductor Coordination inductor
Max. continuous operating voltage Uc 500V ac 500V ac
Max. line current IL 35A 63A
Line inductance 15μH 15μH
Wiring 1 piece in series on each active line 1 piece in series on each active line
Dimmension WxLxH 36*90*65mm 36*90*65mm
Connection 6~35mm2 6~35mm2
Mounting on 35mm Din Rail 35mm Din Rail
Operating temperature range Tu -40℃-80℃ -40℃-80℃
Enclosure material Thermoplastic UL-94V0 Thermoplastic UL-94V0
Degree of protection IP20 IP20
Order Code B6320 B6321

Features:

Coordination inductors for surge protectors

These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors.

They are necessary where the coordination cannot be accomplished using the ‘natural’ inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m).

DIN rail compatible

Connected in series on the line to be protected and depend on the maximum line current.

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor

BRCI-63 Lightning Coordinator Decoupling inductance Coordination inductor
