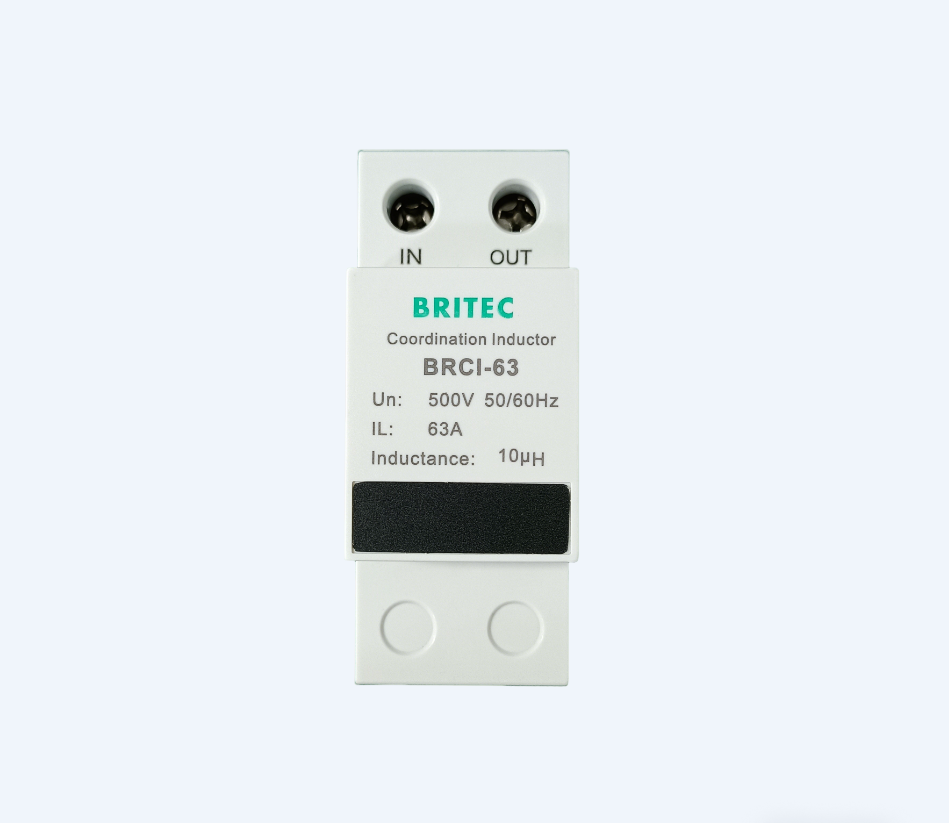

BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler
BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler
BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler
BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler
Specifications
Brand Name :
BRITEC
Model Number :
BRCI-63
Place of Origin :
China
Certification :
ISO9001
MOQ :
10 PCS
Packaging Details :
carton
Delivery Time :
15 days after receipt of deposit
Payment Terms :
TT
Supply Ability :
500000 per month
Function :
Decoupling Inductivity
L×W×H (mm) :
36×90×65
Warranty :
1 Years
Design :
OEM.ODM Designs
Printing :
As Your Requests
Maximum continuous voltage :
500V Ac
Description

BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler

BRCI-63 decoupling inductivity Decoupling inductance Lightning Coordinator Decoupler

Product characteristics:

Specification BRCI-35 BRCI-63
Description Coordination inductor Coordination inductor
Max. continuous operating voltage Uc 500V ac 500V ac
Max. line current IL 35A 63A
Line inductance 15μH 15μH
Wiring 1 piece in series on each active line 1 piece in series on each active line
Dimmension WxLxH 36*90*65mm 36*90*65mm
Connection 6~35mm2 6~35mm2
Mounting on 35mm Din Rail 35mm Din Rail
Operating temperature range Tu -40℃-80℃ -40℃-80℃
Enclosure material Thermoplastic UL-94V0 Thermoplastic UL-94V0
Degree of protection IP20 IP20
Order Code B6320 B6321

Features:

Coordination inductors for surge protectors

These coordination inductors are specially designed to control the implementation of the primary and secondary levels of SPD surge protectors.

They are necessary where the coordination cannot be accomplished using the ‘natural’ inductance of the active conductors (in particular in a small volume, where the length of line wire between primary SPD and secondary SPD is lower than 10m).

DIN rail compatible

Connected in series on the line to be protected and depend on the maximum line current.

Technical Parameters:

Printing As Your Requests
Warranty 1 Years
Maximum continuous voltage 500V Ac
Function Decoupling Inductivity
Design OEM.ODM Designs
L×W×H (mm) 36×90×65

Decoupling inductance

• Compact design in a 35 mm housing

• Two connection options for input and output

• Rated load current 63 A

• Nominal inductance 15 µH

Customization:

Product Customization Services:

- Brand Name: BRITEC

- Model Number: BRCI-63

- Place of Origin: China

- Certification: ISO9001

- Minimum Order Quantity: 10 PCS

- Packaging Details: carton

- Delivery Time: 15 days after receipt of deposit

- Payment Terms: TT

- Supply Ability: 500000 per month

- Design: OEM.ODM Designs

- Printing: As Your Requests

- Warranty: 1 Years

- L×W×H (mm): 36×90×65

- Function: Decoupling Inductivity

Keywords: Dedicated Backup Protector, scb surge protection

Support and Services:

Product Technical Support and Services for the Others product:

- Troubleshooting assistance for technical issues

- Software updates and patches

- Product documentation and user guides

- Online knowledge base and FAQs

- Warranty information and support

- Product training and webinars
