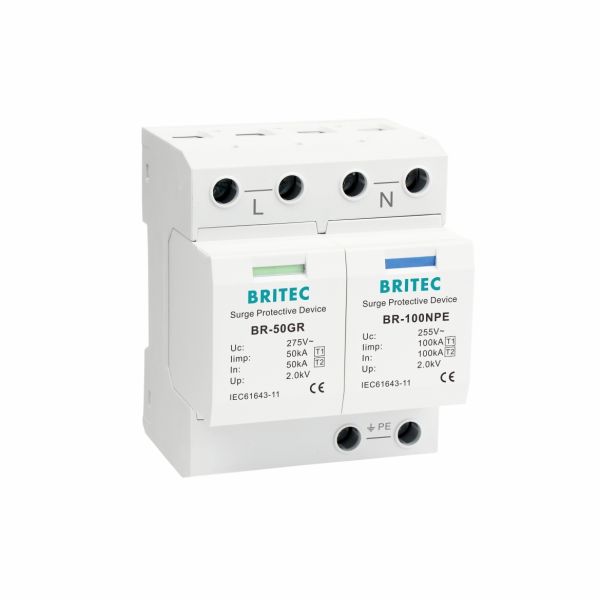

SPD Power Surge Protection Device with IEC 61643-11 Compliance
SPD Power Surge Protection Device with IEC 61643-11 Compliance
SPD Power Surge Protection Device with IEC 61643-11 Compliance
SPD Power Surge Protection Device with IEC 61643-11 Compliance
Specifications
Maximum Discharging Current :
160KA/200kA
Payment Terms :
L/C,D/A,T/T,Western Union
Standards Compliance :
IEC 61643-11 / EN 61643-11
Mounting On :
35mm Din rail
Response Time :
≤100ns
Model Number :
BR-50GR 275 1+1
Nominal Discharging Current :
50KA/100kA
Delivery Time :
Shipped in 30 days after payment
Brand Name :
BRITEC
Place of Origin :
China
MOQ :
100 Piece/Pieces
Packaging Details :
EXPORT PACKING
Supply Ability :
100000 Piece/Pieces Month
Voltage Protection Level :
2.0KV
Leakage Current :
None
Certification :
TUV/CB/CE
Model Numbers :
BR-50GR 1+1
Operating Temperature :
-40℃ To +80℃
Keyword :
lightning protection
Description
SPD Power Surge Protection Device Lightning Surge Protectors 1p + NPE
Product Features
  • Indoor fixed installation, voltage limited type
  • 35mm rail mounting, standard modular design
  • Stable and reliable performance
  • Visual status indication - displays red when SPD fails
  • High lightning current capability, fast response speed
  • Optional remote signaling interface
  • Easy installation, no special maintenance required
Technical Specifications
Parameter BR-50GR 275 1+1
No. of poles 1P+NPE
Power supply system TT, TN-S system
SPD classification according to IEC61643-11 Class I + Class II
Max. continuous operating a.c. voltage Uc 275V/255V
Voltage protection level (L-N / N-PE) Up ≤2.0kV / ≤1.5kV
Maximum discharge current (8/20us)(L-N / N-PE) Imax 160kA / 200kA
Nominal discharge current (8/20us) (L-N / N-PE) In 50kA / 100kA
Lightning impulse current (10/350us) (L-N / N-PE) Iimp 50kA / 100kA
Status indication Green/Red
Response time tA ≤100ns
Operating temperature range Tu -40℃--80℃
Relative humidity 30% to 90% at room temperature
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
For mounting on 35mm Din rail
Test grade IEC61643-1 standards

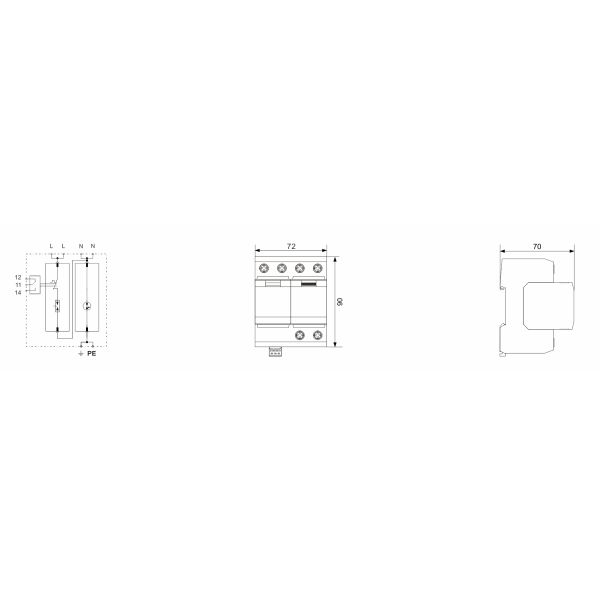

Dimensions
SPD Power Surge Protection Device with IEC 61643-11 Compliance
Applications

Applied to equipotential bonding of the main low voltage distribution boxes in the building, providing overvoltage protection arising from the class B lightning strike to power supply system or disoperation.

Company Advantages
  • Factory founded in 2003 with extensive experience in manufacturing surge arresters
  • Commitment to top quality, competitive pricing, quick delivery, and comprehensive service
  • Prompt technical support and problem resolution
  • All inquiries responded to within 24 hours
  • Standard export packing with custom packaging options available
Company Information

Established in 2003, Britec has over 23 years of SPD manufacturing experience. As a professional surge protector factory, we provide competitive pricing with superior quality products and satisfied service. Our product range includes AC Power Surge Protectors, DC surge protection, Signal Surge Protectors, and LED Surge Protectors.

SPD Power Surge Protection Device with IEC 61643-11 Compliance
Certifications
SPD Power Surge Protection Device with IEC 61643-11 Compliance
Packaging & Shipping

Normal packaging with custom packaging available upon request. Shipping options include UPS, TNT, FEDEX, DHL, as well as sea and air freight. Shipping costs provided upon order confirmation.

SPD Power Surge Protection Device with IEC 61643-11 Compliance
Manufacturing Facilities
Workshop
SPD Power Surge Protection Device with IEC 61643-11 Compliance
Laboratory
SPD Power Surge Protection Device with IEC 61643-11 Compliance
Frequently Asked Questions
Are you a factory or trading company?
We are a factory, ensuring first-hand competitive pricing.
How does your factory do regarding quality control?
All products undergo 100% quality inspection before shipment.
When can I get the price?
We typically provide quotes within 24 hours of receiving your inquiry.
What kind of payment do you accept?
We accept T/T, PayPal, and other payment methods.
What about your delivery time?
Standard lead time is approximately 30 days.
