110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
Specifications
Brand Name :
BRITEC
Model Number :
BR-110 385 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
100000 Piece/Pieces Month
Delivery Time :
Shipped in 30 days after payment
Packaging Details :
EXPORT PACKING
Certification :
TUV/CE/CB
Connection diagram :
TN-S
Uc :
385 V
In :
50 kA
Imax :
110 kA
Up :
2.5 kV
Modules :
4
Installation :
Din rail
Weight (g) :
1000G
Application :
AC system
Size :
small
Description
IEC61643-11 110ka 3 Phase MOV Power Surge Protection Device SPD
Type 2 AC surge arrester designed for low-voltage power supply system protection against surges at the boundaries from lightning protection zone 1-2 and higher. This surge protection device provides reliable protection against transient electrical over-voltages.
Product Specifications
Model BR-110 385 4P
SPD Classification (IEC61643-11) Class II
Max. Continuous Operating Voltage (Uc) 385V
Nominal Discharge Current (8/20μs) In 50kA
Max. Discharge Current (8/20μs) Imax 110kA
Voltage Protection Level Up ≤2.5kV
Max. Backup Fuse 160A gG
Degree of Protection IP20
Enclosure Material Thermoplastic UL94-V0
Response Time tA ≤25ns
Operating Temperature Range -40℃ to 80℃
Relative Humidity ≤95%
Mounting 35mm Din rail
Available Colors White, Gray, Black, Red, Yellow and Customized
Operating State / Fault Indication Green / Red
Cross-section Area (Min.) 4mm²
Cross-section Area (Max.) 35mm²
OEM Service Yes

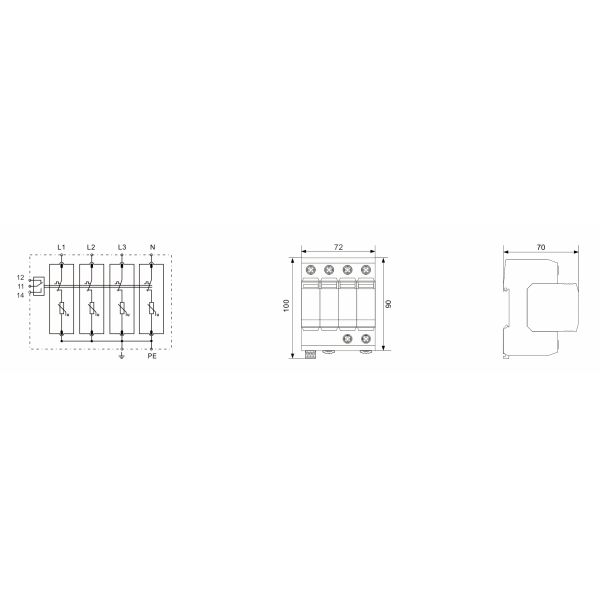

Product Dimensions
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
Key Features
  • Easy to operate and install
  • High discharge capacity with low residual voltage
  • Fast response time for optimal protection
  • Visual power status indication
  • Long service life and reliable performance
  • Rugged construction with stable operation
  • Built-in overheating and temperature control circuit breaker
  • Remote monitoring capability
Product Introduction
Britec surge protection devices provide comprehensive safety protection for electronic equipment, instruments, and communication lines. These devices are primarily used to limit overvoltage and discharge electric current, effectively shunting and voltage limiting during surge events to prevent damage to connected equipment.
Installation & Maintenance Notice
  • Proper determination of discharge current path is essential
  • Grounding lines should be short, thick, and straight to minimize distributed inductance effects
  • Regular inspection recommended, especially during thunderstorm seasons
  • If system failure is suspected, inspect the surge protector and replace if damaged
About Our Company
Wenzhou Britec Electric Co., Ltd., established in 2003, is a professional SPD manufacturer located in Zhejiang Province, China. We specialize in designing, manufacturing, and selling high-quality surge protection products, including customized and OEM/ODM solutions.
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
Production Process
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
Certifications
110kA 3 Phase MOV Power Surge Protection Device SPD with DIN Rail Installation
Frequently Asked Questions
Who are we?
We are a professional factory with customers in more than 50 countries and regions worldwide.
Can I print our logo on the products and change the color?
Yes, all colors and patterns are available, and we provide comprehensive OEM services.
Can I get a sample?
Yes, samples are available with a charge that will be refunded after order placement.
What certificates do your products have?
Our products hold CE, TUV, and CB certificates, ensuring high quality standards.
What's your delivery time?
Standard delivery is within 30 days.
What payment methods do you accept?
We accept TT and PayPal with 30% deposit and 70% balance before shipment.
