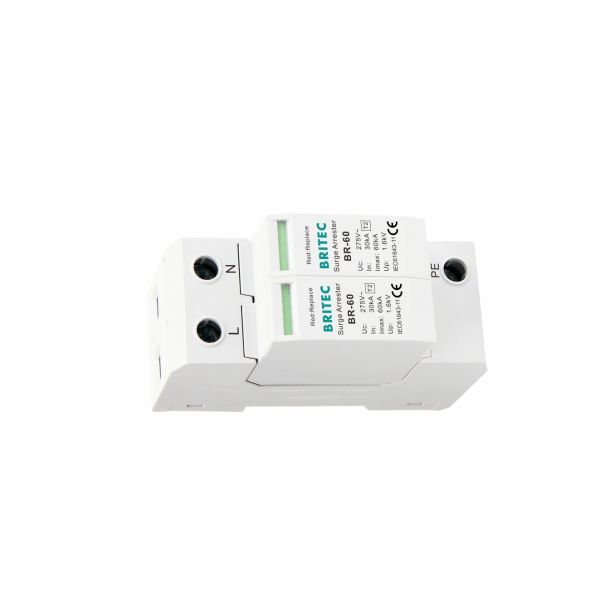

60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
Specifications
Keywords :
surge arrester
Nominal Discharge current :
30KA
Maximum surge current :
60kA
Indicator :
Green/Red
Delivery Time :
Shipped in 30 days after payment
Protection Rank :
C
Payment :
Paypal. TT. L/C
Brand Name :
BRITEC
Model Number :
BR-60 275 2P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Packaging Details :
EXPORT PACKING
Supply Ability :
100000 Piece/Pieces Month
Material :
Thermoplastic UL94-V0
Safety Standard :
IEC61643-11
Dimention :
90×36×70 mm
Payment Terms :
L/C,D/A,T/T,Western Union
For Mounting On :
35mm Din Rail
Description
60kA Power Lightning Surge Arrester Single Phase AC Electrical Surge Protector
Product Features
  • Pluggable module — convenient for maintenance
  • High discharge current — Imax 60kA per pole
  • Indication window for clear display of SPD status — each pole with one indication window
  • Narrow size surge arrester, special design for saving installation space — width 18mm/pole, single phase
Technical Specifications
Specification BR-60 275 2P
SPD classification according to IEC61643-11 Class II
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.6kV
Max. discharge current (8/20μs) Imax 60kA
Nominal discharge current (8/20μs) In 30kA
Response time tA ≤25ns
Test Standard IEC61643-1
Operating temperature range Tu -40℃ to +80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Product Dimensions
60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
Applications

• Suitable for use in TN-S power supply systems of AC 50/60Hz

• Ideal for system power protection applications including power distribution cabinets, switch cabinets, and AC distribution boards

Company Information

Wenzhou Britec Electric Co., Ltd. was established in 2003 and is located in Yueqing City, Zhejiang Province. We are an enterprise specializing in SPD production, sales, and R&D. Our company currently provides up to 100 kinds of surge protective devices (SPD), including:

  • AC Power Surge Protection Device SPD
  • DC Surge Protective Device
  • Data Surge Protection
  • LED Lightning Protection

We also provide custom surge protectors according to customers' specific requirements.

60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
Shipping Options

Shipping available by air, sea, express, or according to clients' specific requirements.

60kA Discharge Current Surge Arrester with Pluggable Module and UL94-V0 Thermoplastic for AC Power Protection
Frequently Asked Questions
Q1: How long is your products warranty?
A: The warranty period of our products is 5 years.
Q2: What is the service offered by company?
A: We have a professional engineering team that can design and develop molds to meet different customer requirements. We also have a sales team to provide excellent service from pre-sale to after-sale support.
Q3: Are you trading company or manufacturer?
A: We are a factory.
