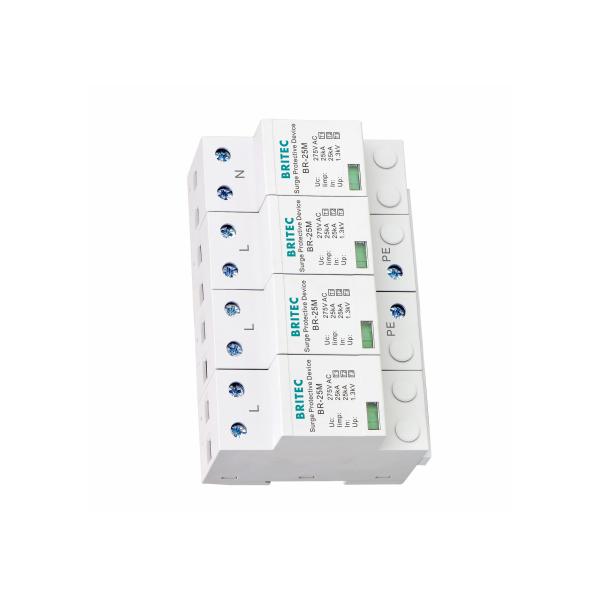

25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
Specifications
Certification :
TUV/CB/CE
Structure :
MOV
Application :
AC System
Operation Voltage :
Low Voltage
Material :
Thermoplastic UL94-V0
Specification :
Weight: 1KG, Dimension: 144x90x70mm
HS Code :
8536300000
Type :
Power Surge Arrester
Installation :
Parallel Arrester
Size :
Small
Shape :
Cuboid
Brand Name :
BRITEC
Model Number :
BR-25M 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
100000 Piece/Pieces Month
Delivery Time :
Shipped in 30 days after payment
Packaging Details :
EXPORT PACKING
Description
25KA 10/350 Power Surge Protection Device SPD For Lightning Protection Surge Protector
Product Features
  • Class I AC surge protector designed for low-voltage power supply system protection
  • Response time less than 25ns
  • Quick thermal response and perfect circuit cutoff function with special thermal disconnector design and arc extinguishing device
  • Automatic detachment from grid upon failure with visual alarm indicators (green for normal, red for fault)
Technical Specifications
Parameter Specification
SPD classification according to EN61643-11 with 5M Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M Class I + Class II + Class III
Rated operating voltage Un 220V
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.3kV
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Response time tA ≤25ns
Combined impulse Uoc 20kV
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 315A gG
Operating temperature range Tu -40℃ to +80℃
Relative humidity (25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Product Dimensions
25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
Applications

• For integrated low-voltage power distribution systems

• Suitable for TN-S power supply systems of AC 50/60Hz

About Our Company

Wenzhou Britec Electric Co., Ltd. is a manufacturer established in 2003, specializing in surge arresters with over 21 years of experience. We are a high-tech enterprise of Zhejiang province and have passed ISO 9001 certification.

25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
Our Certifications
25KA 10/350 Low Voltage Power Surge Protection Device with Thermoplastic UL94-V0 for Lightning Protection
Frequently Asked Questions
Q1: How to select the right surge protector?
A: Surge protector grading is assessed according to the IEC61024 subdivision lightning protection theory, installed at partition junctions. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone with high flow requirements (minimum GB50057 requirement is 12.5 kA 10/350), while second and third stages are installed between 1-2 and 2-3 zones, mainly to suppress overvoltage.
Q2: Are your surge protectors available for customization?
A: Yes, we offer custom surge protector solutions.
Q3: Are you a manufacturer or trading company?
A: We are a direct manufacturer of lightning surge protectors.
Q4: How can I request samples?
A: We are pleased to provide samples. Please contact our staff with your detailed contact information. We maintain strict confidentiality of all customer information.
