White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Specifications
Maximum Discharge current :
60KA
Connections :
TN-C
Brand Name :
BRITEC
Model Number :
BR-12.5M 320 3P
Certification :
TUV/CB/CE
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
100000 Piece/Pieces Month
Delivery Time :
Shipped in 30 days after payment
Packaging Details :
EXPORT PACKING
Type :
Low voltage
Keyword :
lightning protection
Material :
Thermoplastic
Technology :
MOV
Shipping Term :
UPS/TNT/Fedex/DHL
Safety Standard :
IEC61643-1
Voltage rating :
250V/440V AC
Hs Code :
8536300000
Description
White AC 12.5KA Power Surge Protection Device SPD Power Voltage Protector
Product Features
  • Designed according to IEC61643-1 standards
  • Protects electrical circuits and communication lines from external interference peak current or voltage surges
  • Conducts shunt in very short time to prevent damage to other equipment
  • Response time: 25 nanoseconds
Technical Specifications
Parameter Value
Model BR-12.5M 320 3P
Max. continuous operating a.c. voltage (Uc) 320V
Voltage protection level (Up) ≤1.5kV
Max. discharge current (8/20us) (Imax) 60kA
Nominal discharge current (8/20us) (In) 25kA
Lightning impulse current (10/350us) (Iimp) 12.5kA
Response time (tA) ≤25ns
Degree of protection IP20
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Max. backup fuse 125A gG
Operating temperature range (Tu) -40℃ to +80℃
Humidity (25℃) ≤95%
Operating state / fault indication Green / Red
Note Other maximum continuous working voltage Uc can be customized

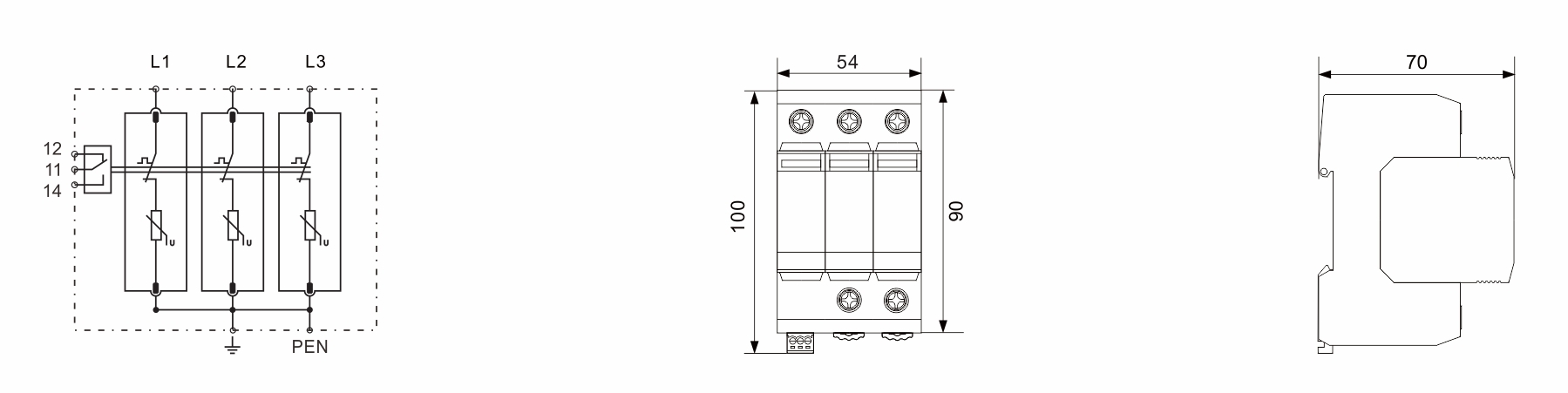

Dimensions
White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Applications
  • Suitable for AC 50/60HZ, 320V TN-C power supply systems
  • Used to protect all kinds of electrical equipment in power systems from lightning over-voltage, operation over-voltage, and power frequency transient over-voltage impact damage
Product Line
White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Certifications
White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Laboratory Equipment
White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Packaging & Shipping

All goods are packed in protective paper cartons to prevent damage during transportation.

We offer shipping via TNT, FedEx, DHL, EMS and other carriers.

After shipment, we provide tracking numbers for monitoring delivery status and keep you updated on progress.

White AC 12.5KA Surge Protection Device SPD with MOV Technology and IEC61643-1 Standard
Frequently Asked Questions
Q1. What's the payment term?
We accept TT (Telegraphic Transfer), 30% deposit and 70% balance before shipment.
Q2. Would you accept to use our logo?
Yes, we offer OEM services for orders with sufficient quantity.
Q3. Do you accept customized orders?
Yes, we accept customized orders.
Q4. What's the delivery time?
Typically 25 days after payment confirmation, depending on order quantity.
Q5. Is sample available and free?
Samples are available but not free. Sample costs are refundable with subsequent orders.
