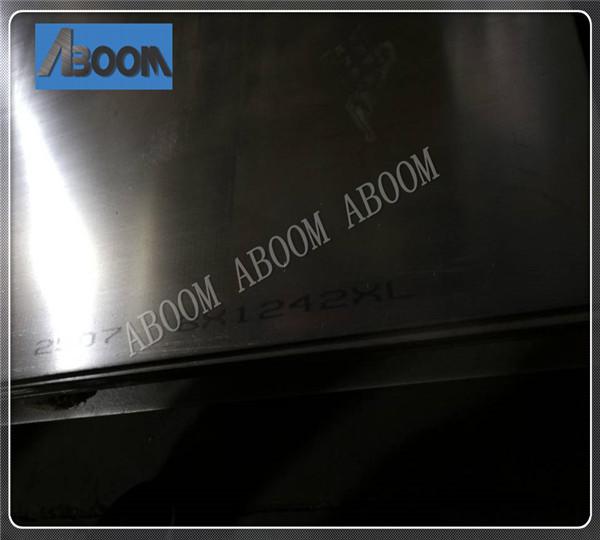

Incoloy A 286 Incoloy Alloy NS66286 ZbNCT25 Stainless Steel Plate Stock
Incoloy A 286 Incoloy Alloy NS66286 ZbNCT25 Stainless Steel Plate Stock
Incoloy A 286 Incoloy Alloy NS66286 ZbNCT25 Stainless Steel Plate Stock
Incoloy A 286 Incoloy Alloy NS66286 ZbNCT25 Stainless Steel Plate Stock
Specifications
Brand Name :
ABOOM
Model Number :
Incoloy A-286
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
200 TONS PER MONTH
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
Ni-base alloy steel
PRODUCT :
Incoloy A-286 (NS66286 / ZbNCT25) stainless steel plate
STANDARD :
ASTM B409
GRADE :
Incoloy A-286 / NS66286 / ZbNCT25
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Heat Treatment :
shall be supplied in the solution annealed/water quenched condition.
Surface Finish :
Descaled, White Pickled, and Passivated Condition
testing facility :
Accept third party testing such as SGS
Description

Incoloy A 286 Incoloy Alloy NS66286 ZbNCT25 Stainless Steel Plate Stock

Incoloy A-286 (NS66286 / ZbNCT25) stainless steel plate stock

Material grade: Incoloy A-286 nickel-based alloy
US grade: UNS NS66286

French grade: ZbNCT25

Incoloy A-286 nickel-based alloy overview:


Incoloy A-286 nickel-based alloy is Fe-25Ni-15Cr-based high temperature alloy, which is comprehensively strengthened by adding molybdenum, titanium, aluminum, vanadium and trace boron. Below 650 ℃, it has high yield strength, long-lasting, creep strength, and has good processing plasticity and satisfactory welding performance. It is suitable for manufacturing high-temperature bearing parts of aero-engines, such as turbine discs, press discs, rotor blades, and fasteners, which work under 650 ℃ for a long time.

The alloy can produce deformed products in various shapes, such as disks, forgings, plates, rods, wires and rings. Incoloy A-286 nickel-based alloy improves the purity of the alloy, limits the gas content, controls the content of low melting point elements, and adjusts the heat treatment system, so that the alloy's thermal strength and long-term use performance are improved.

Chemical composition of Incoloy A-286 (NS66286) nickel-based alloy: see Table-1:

Table-1 %

C≤ Si≤ Mn≤ P≤ S≤ Cr≥ Ni≥ Mo≥ Cu≤
0.08 1.00 1.00-2.00 0.030 0.020 13.5-16.0 24.0-27.0 1.0-1.5 -
Others N≤ Al≤ Ti≤ Fe≤ Co≤ V≤ W≤ B≤
- 0.04 1.75-2.30 Balance - - - 0.001-0.01

Note:The standards for hot-rolled and cold-rolled plate stipulate that ω (B) is 0.003% to 0.010%, ω (Mn) ≤2.00%, ω (P) ≤0.020%, and ω (S) ≤0.015%.
