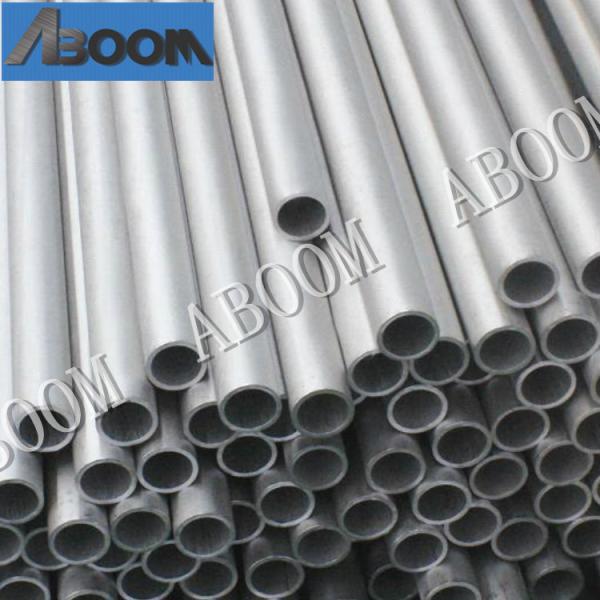

NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800
NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800
NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800
NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800
Specifications
Brand Name :
ABOOM
Model Number :
Incoloy 800
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
200 TONS PER MONTH
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
nickel based alloy
PRODUCT :
Incoloy Alloy Incoloy800 (NS1101 / N08800) corrosion-resistant alloy seamless pipe
STANDARD :
ASTM B407
GRADE :
Incoloy 800 / NS1101 / UNS N08800 / X2NiCrAlTi3220
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Heat Treatment :
shall be supplied in the solution annealed / water quenched condition.
Surface Finish :
Descaled, White Pickled, and Passivated Condition
testing facility :
Accept third party testing such as SGS
Description

NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800

Incoloy Alloy Incoloy800 (NS1101 / N08800) corrosion-resistant alloy seamless pipe

Material designation: Incoloy 800 nickel based alloy
US grade: N08800 / NS1101
German grade: X2NiCrAlTi3220

Incoloy 800 (NS1101 / N08800) nickel-based alloy applications:


Incoloy 800 (NS1101 / N08800) alloy chemical industry, nuclear generator, nitric acid cooler, acetic anhydride cracking tube, heat exchange equipment, heat exchange tube, etc.

Incoloy 800 (NS1101 / N08800) nickel-based alloy mechanical properties: see Table-1:

Table-1 %

Temp ℃ σЬ/ MPa σ0.2 / MPa δ5 /%
100 425 140 160
300 390 95 115
500 360 80 100
600 300 75 95

specification:


Outer diameter Φ6—762mm; wall thickness: 0.5-50mm, maximum length 18000mm
Special specifications are available upon negotiation.

Performance characteristics:


1. Good stress resistance, pitting resistance, crevice corrosion resistance and local corrosion resistance at room temperature

2. Excellent mechanical properties at room temperature

3.Good corrosion resistance under high temperature environment

4. High mechanical properties under high temperature environment

NS1101 / N08800 Incoloy Alloy Corrosion Resistant Alloy Seamless Pipe Incoloy 800
