410S / 516 Gr.70 Martensitic clad steel plates for Columns
410S / 516 Gr.70 Martensitic clad steel plates for Columns
410S / 516 Gr.70 Martensitic clad steel plates for Columns
410S / 516 Gr.70 Martensitic clad steel plates for Columns
410S / 516 Gr.70 Martensitic clad steel plates for Columns
410S / 516 Gr.70 Martensitic clad steel plates for Columns
Specifications
Brand Name :
Suntech or OEM
Model Number :
E0024
Certification :
EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Place of Origin :
P.R.China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
35000tons/Year
Delivery Time :
60 working days after received your payment
Packaging Details :
Seaworthy packing
Cladding Material :
SA240 410S
Base Material :
A516 Gr.70N
Size :
(4+14)*2400*5000mm
Production Code :
ASTM B264, ASME SB264
Edge Treatment :
Waterjet Cutting
Surface Treatment :
Auto Polished
Description

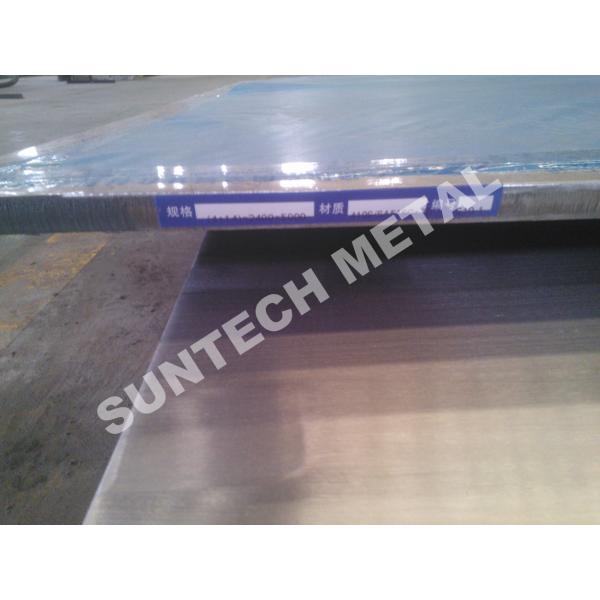

410S / 516 Gr.70 Martensitic clad steel plates for Columns

Product Description:

Cladding Metal SA240 410S Production Code ASTM B264, ASME SB264
Base Metal 516 Gr.70N Bonding Rate Level A
Size (4+14)*2400*5000mm Packing Plywood case packing

Explosion Cladding Feature:

-Clad plates provide an economical solution for chemical processing.

-Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond.

-At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet.

-The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.

Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.

Competitive Advantage:

1. Abundant experience

- More than one decade of abundant experience in non-ferrous metal cladding and production;

- Miscellaneous metals cover Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel;

- Produced according to ASTM, ASME, JIS, DIN, ISO other codes;

- Over 20 items of inventory or practical new-type patents.

2. Professional technical consulting service

- Generate technical specification to adopt in local market;

- Technical bid evaluation and clarification;

- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.;

- Technical consulting on material, welding, NDE, etc.;

- Non-conformance solution consulting;

- Others that might be requested by customer.

3. Independent inspection service

- Technical clarification with customer;

- Attend / organize pre-inspection meeting;

- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection;

- Final inspection on finished products;

- Packing inspection;

- Progress report and schedule expediting;

- Other inspection might be requested by customer.

4. Transportation advantage

- 296kms away from Shanghai seaport
