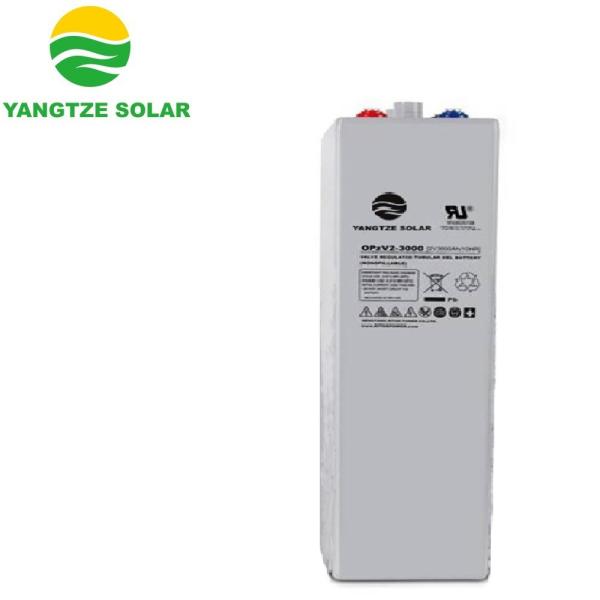

2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
Specifications
Brand Name :
Yangtze
Model Number :
OPZV-3000
Certification :
CE/TUV/ISO/ROHS/MSDS
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
10000 units/week
Delivery Time :
7-20 days
Packaging Details :
Pallet+Carton box
Sealed Type :
Sealed Storage Battery
Dimension :
576*212*772mm
Weight :
216Kgs
Capacity :
3000Ah
Usage :
Slolar Energy System, Telecom , UPS
Color :
Silver/Black/White
Terminal material :
copper
Voltage :
2V
Description

2V 3000Ah OPZV battery 576*212*772mm 216kgs tubular cells 30 years life span2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg

Key Features :

1. Service life up to 18-20 years in continuous float operation down to approx 80% capacity.

2. Completely sealing throughout the batteries life.

3. Gel electrolyte.

4. Easy to move and handle.

5. Minimum space required and room requirements are minimal e.g. no washing facilities needed, ventilation requirements are minimal.

6. Low gassing thanks to antimony-free alloy and internal oxygen recombination.

7. Easy install using cable connectors with insulated terminal covers.

8. Ready for immediate use without further commissioning work.

9. Can be supplied as a standard vertical installation or by special request, for a horizontal installation.

10. Very low self-discharge <50% of rated capacity in 2 years at 20 ℃ ambient temperature.

11. High cyclic ability over 600 cycles when discharged at 10 hour rate to an end voltage of 1.8Volt/cell at 20℃ .

12. Deep discharge protected, a load can be connected to the battery for up to 4 weeks.

13. No internal short circuits possible due to the gel structure.

14. No acid stratification, so noequalizing charge necessary.

2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg

1. Functional Parameter 5. Environment Temperature
Nominal Voltage 2V Discharge Temperature -40~60℃
Nominal Capacity @C10 to 1.8V/cell 3000Ah Charge Temperature -15~50℃
Designed Floating Life 20℃ (68° F) 20years Storage Temperature -15~40℃
2. Rated Capacity at 20℃ (68° F) 6. Inner Resistance & Max . Discharge Current
5 hour rate (513A, 1.75V/cell) 2565Ah Fully Charged battery at 20℃ (68° F) 0.16mΩ
3 hour rate (754A, 1.75V/cell) 2262Ah Max. Discharge Current 4000A (5s)
1 hour rate (1697A, 1.60V/cell) 1697Ah Short Circuit Current 12000A
3. Capacity affected by Temperature (10 hour rate) 7. Self-discharge at 20℃ (68° F)
40℃ (104° F) 102% Capacity after 3 month storage 94%
25℃ (77° F) 100% Capacity after 6 month storage 88%
0℃ (32° F) 90% Capacity after 9 month storage 82%
-15℃ (5° F) 70% Capacity after 12 month storage 76%
4. Dimension and Weight 8. Constant voltage charging at 20℃ (68° F)
Length 576mm Cyclic use 2.35~2.40V
Width 212mm Maximum charging current 600A
Height 772mm Temperature compensation -5mV/℃
Total Height 807mm Float use 2.25~2.29V
Reference Weight 232kg Temperature compensation -3mV/℃


2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg

♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery , OPzV and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , ISO,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah

2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg2V 3000Ah OPZV OPZS Battery Tubular Cells 216kg
