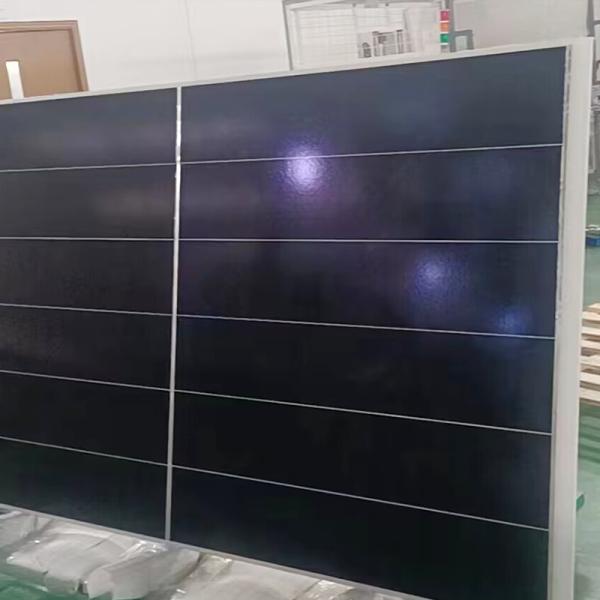

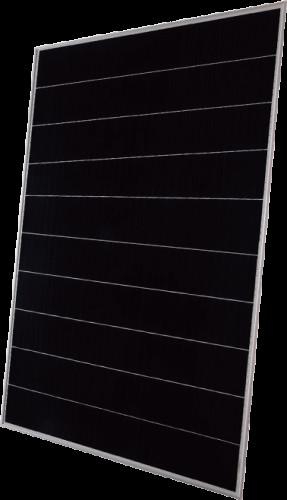

540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
Specifications
Brand Name :
Yangtze
Model Number :
YS540M-432
Certification :
CE/TUV/ISO/ROHS/INMETRO
Place of Origin :
China
MOQ :
30 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
20000 pieces/Week
Delivery Time :
7-20 days
Packaging Details :
Pallet+Carton Box
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68 Rated
Solar cell :
Half Cell 10BB
Glass :
3.2mm High Transmission Low Iron Tempered Glass
Backing Color :
White or Black or Transparent
OEM Order :
Acceptable
Class :
Grade A
Rated Power :
550W
Dimension :
2279*1134*35mm
Efficiency :
21.33%
Description

Product Description:

The Mono-facial Solar Panel is a single-sided solar panel designed for superior performance and durability. The panel is made with a Mono-crystalline cell type, Half Cut solar cells and an Anodized Aluminum Alloy frame for extended life and durability. The frame is designed in a Full Black color for a sleek and modern look. With its Mono-facial Solar Paneling, this Single-sided Sun Panel is perfect for a variety of applications. The Mono-facial Solar Panel offers superior performance and durability, making it an ideal choice for your energy needs.

Features:

  • Product Name: Mono-facial Solar Panel
  • Frame Color: Full Black
  • Solar Cell: Half Cut
  • Temperature Range: -40℃~+85℃
  • Frame Material: Anodized Aluminum Alloy
  • Features: Single-sided Sun Panel, Mono-facial Sun Panel, Mono-facial Sun Paneling

Applications:

Yangtze Mono-facial Solar Panels are the perfect choice for those looking for a reliable, single-sided sun panel. Manufactured and shipped from China with a minimum order of only 1 panel, these panels can be delivered to you in as little as 10-20 days. With a frame made of anodized aluminum alloy, these panels are designed to withstand temperatures ranging from -40℃ to +85℃. The half-cut solar cell is made of mono-crystalline for maximum efficiency.

Customization:

Customized Mono-facial Solar Panel

Brand Name: Yangtze

Place of Origin: China

Minimum Order Quantity: 1

Delivery Time: 10-20 days

Frame Color: Full Black

Temperature Range: -40℃~+85℃

Cell Type: Mono-crystalline

Junction Box: IP68

Product Name: Mono-facial Solar Panel

Our customized Mono-facial Solar Panel is perfect for single-sided sun paneling. It is constructed with mono-facial solar cell type, the frame color is full black, and the temperature range is -40℃~+85℃. The junction box is IP68 certified, making it safe and reliable.

Support and Services:

Mono-facial Solar Panel Technical Support and Service
  • Technical Support:
    • 24/7 telephone support
    • Online chat support
    • Email support
  • Service:
    • On-site installation and maintenence
    • Regular servicing and maintenance
    • Replacement parts

Packing and Shipping:

Packaging and Shipping for Mono-facial Solar Panel

To ensure that the Mono-facial Solar Panel will be in a perfect condition when it reaches the customer, the following packaging and shipping methods are used:

  • The Mono-facial Solar Panel is wrapped in bubble wrap to prevent any damage during shipping.
  • The Mono-facial Solar Panel is then put into a cardboard box with sufficient padding.
  • The box is then sealed with tape to ensure that the Mono-facial Solar Panel is secure during shipping.
  • The package is then shipped to the customer via a reliable shipping service.

FAQ:

Q: What is the brand name of Mono-facial Solar Panel?
A: The brand name of Mono-facial Solar Panel is Yangtze.
Q: Where is Mono-facial Solar Panel made?
A: Mono-facial Solar Panel is made in China.
Q: What is the minimum order quantity of Mono-facial Solar Panel?
A: The minimum order quantity of Mono-facial Solar Panel is 1.
Q: How long does it take to deliver Mono-facial Solar Panel?
A: It takes 10-20 days to deliver Mono-facial Solar Panel.
Q: What kind of warranty does Mono-facial Solar Panel have?
A: Mono-facial Solar Panel comes with a one-year warranty

540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v

540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v

Model Type
YS540M-432
YS550M-432
YS560M-432
Rated Maximum Power at STC
540W
550W
560W
Maximum Power Voltage (Vmp)
41.54V
42.13V
42.72V
Maximum Power Current (Imp)
12.99A
13.05A
13.10A
Open Circuit Voltage ( Voc)
49.9V
50.56V
51.22V
Short Circuit Current (Isc)
14.06A
14.14A
14.22A
Module Efficiency
>23.5%
>23.8%
>24.1%
Working Conditions&Working Conditions
Glass Thickness
3.2mm
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S

540 Watt Mono Facial N Type Solar Cell Panel Hjt Half Cut 24v
