Specifications
Brand Name :
Yangtze
Model Number :
YS450M-144
Certification :
CE/TUV/ISO/ROHS/INMETRO
Place of Origin :
China
MOQ :
30 pieces
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union,Credit Card
Supply Ability :
20000 pieces/Week
Delivery Time :
7-20 days
Packaging Details :
Pallet+Carton Box
Frame :
Anodized Aluminium Alloy
Junction Box :
IP68 Rated
Solar cell :
Half Cell 9BB
Glass :
3.2mm High Transmission Low Iron Tempered Glass
Backing Color :
White or Black or Transparent
OEM Order :
Acceptable
Class :
Grade A
Rated Power :
450W
Dimension :
2094*1038*35mm
Efficiency :
20.33%
Description

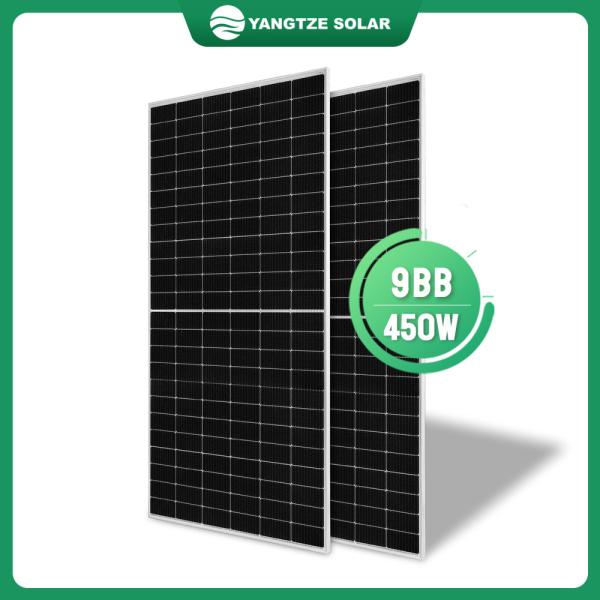

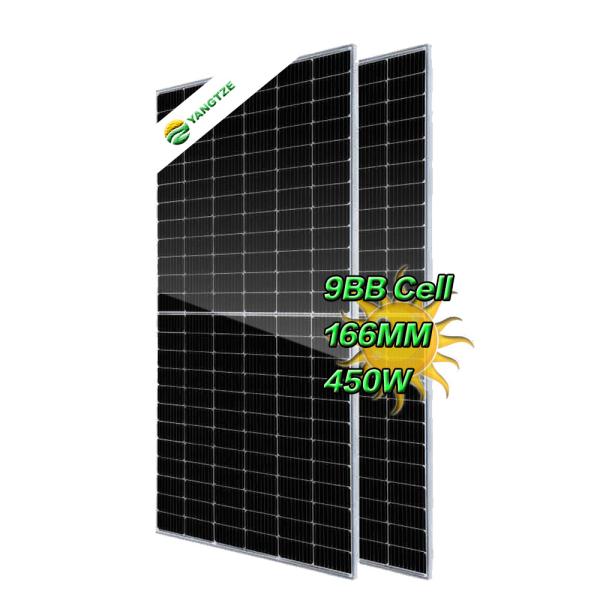

450W 20.33% Efficiency Mono-facial Solar Panel Withstand 5400 Pa Snow Load

Product Description:

Our Mono-facial Solar Panel features 25-year warranty and Half Cut Technology, making it the perfect choice for single-sided sun panelling. The cell size of the Mono-facial Solar Panel is 210*210mm with a temperature range of -40℃~+85℃. With its advanced mono-facial sun panelling technology, you can be sure to get the most out of your solar energy. Our Mono-facial Solar Panel is the perfect solution for any of your solar energy needs.

Features:

  • Product Name: Mono-facial Solar Panel
  • Frame Material: Anodized Aluminum Alloy
  • Cell Number: 132
  • Cell Size: 210*210mm
  • Cell Grade: A
  • Type: Mono-facial Sun Panel, Single-sided Solar Panel

Applications:

The Yangtze Mono-facial Sun Panel is designed to be single-sided, with a Mono-crystalline Grade A Solar Cell. It is capable of withstanding temperatures ranging from -40℃ to +85℃ and comes with a 25-year warranty. The frame is available in a full black color, and the minimum order quantity is 30 pieces. Delivery takes place within 5 to 10 days, and payment terms include T/T, L/C, and Credit Card. This Mono-facial Sun Panel is an ideal solution for both residential and commercial applications. It offers excellent power output and superior efficiency, making it a great choice for anyone looking for an energy-efficient alternative to traditional energy sources.

Customization:

We offer Mono Facial Solar Panel, which is a single-sided solar paneling for effective solar energy harnessing. Our Mono-facial Sun Panel is the perfect choice for single-sided solar panel requirements.

Key features of our Mono Facial Solar Panel include:

  • Brand Name: Yangtze
  • Place of Origin: China
  • Minimum Order Quantity: 30 pieces
  • Delivery Time: 5-10 days
  • Payment Terms: T/T,L/C,Credit Card
  • Temperature Range: -40℃~+85℃
  • Warranty: 25 Years
  • Cell Number: 144
  • Cell size: 166*166 mm

We are a trusted manufacturer and supplier of Mono Facial Solar Panel with 25 years of warranty. For more information, contact us now.

Support and Services:

Mono Facial Solar Panel offers the following technical support and services:

  • Free technical advice and support for products purchased from Mono Facial Solar Panel.
  • Regular maintenance and inspection of products for optimal performance.
  • Replacement of defective parts with new or refurbished parts.
  • Installation and setup services.
  • Warranty services for all products.
  • Remote technical support.
  • Online customer service.

Packing and Shipping:

Packaging and Shipping for Mono Facial Solar Panel:

The Mono Facial Solar Panel will be carefully packaged to ensure its safety during transportation. It will be packed in a cardboard box or wooden crate with protective foam to prevent damage during shipment. The box or crate will be labeled with the product name, weight, and shipping information.

The Mono Facial Solar Panel will be shipped via airfreight for domestic orders and sea freight for international orders. All shipments will be tracked and insured to guarantee safe delivery.

450W Commercial PV Mono Facial Solar Panel Sun Paneling Cell 5400Pa Snow Load

Model Type
YS450M-144
YS455M-144
YS460M-144
YS470M-144
YS480M-144
Rated Maximum Power at STC
450W
455W
460W
470W
480W
Maximum Power Voltage (Vmp)
41.5V
41.7V
41.9V
42.3V
42.7V
Maximum Power Current (Imp)
10.84A
10.91A
10.98A
11.11A
11.24A
Open Circuit Voltage ( Voc)
49.3V
49.5V
49.7V
50.1V
50.5V
Short Circuit Current (Isc)
11.60A
11.66A
11.70A
11.83A
11.95A
Module Efficiency
20.33%
20.56%
20.78%
21.23%
21.69%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
