10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-5050-RGBA
Certification :
SGS,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
need to negotiation
Payment Terms :
T/T,Western Union,，PayPal
Supply Ability :
150000 pcs per week
Delivery Time :
3-7 working days
Power Dissipation :
10W
Continuous Forward Current :
700mA
Lens :
Water Clear,Silicone,Molding
Product Description :
High Thermal Conductivity Ceramics
Input & Output :
color controlled by circuit
Name :
Ceramic LED Diodes
Description
10W 5050 4IN1 Ceramic High Power RGB Amber LED Diodes China Factory
High-performance 10W silicone 5050 LED diodes featuring RGBA (Red, Green, Blue, Amber) technology with 700mA forward current and 605nm amber wavelength for superior lighting applications.
Electrical & Optical Characteristics
Performance specifications measured at Ta=25°C:
Color Dominant Wavelength (nm) Forward Current (mA) Forward Voltage (V) Luminous Flux (lm)
Red 615-635 700 1.8-2.8 95-122
Green 515-535 700 2.8-3.8 210-260
Blue 450-465 700 2.8-3.8 35-51.7
Amber 585-605 700 1.8-2.8 50-67.2
Performance Charts

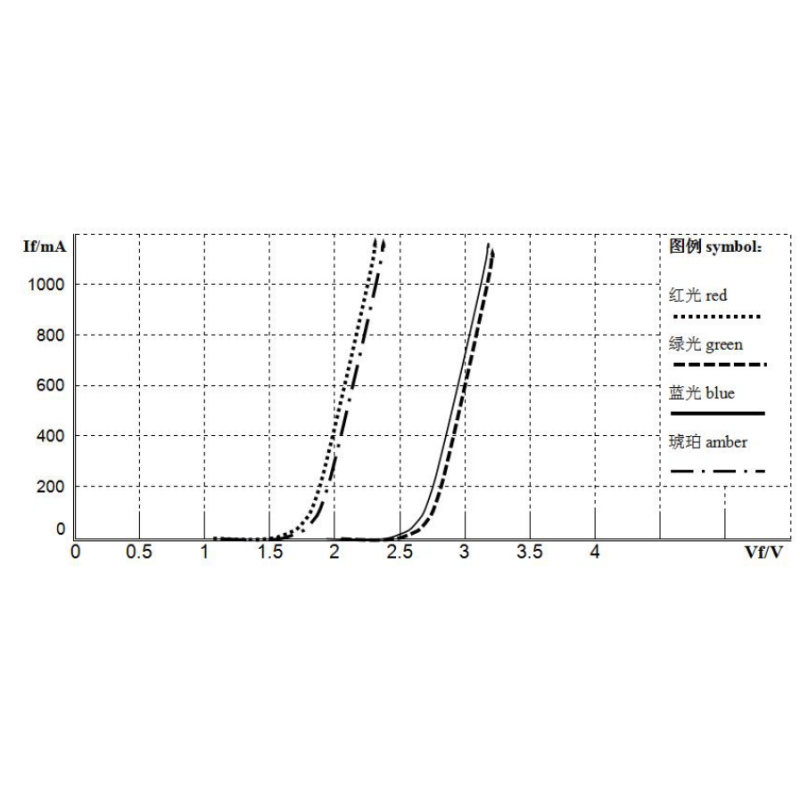

Current-Voltage Characteristics
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity

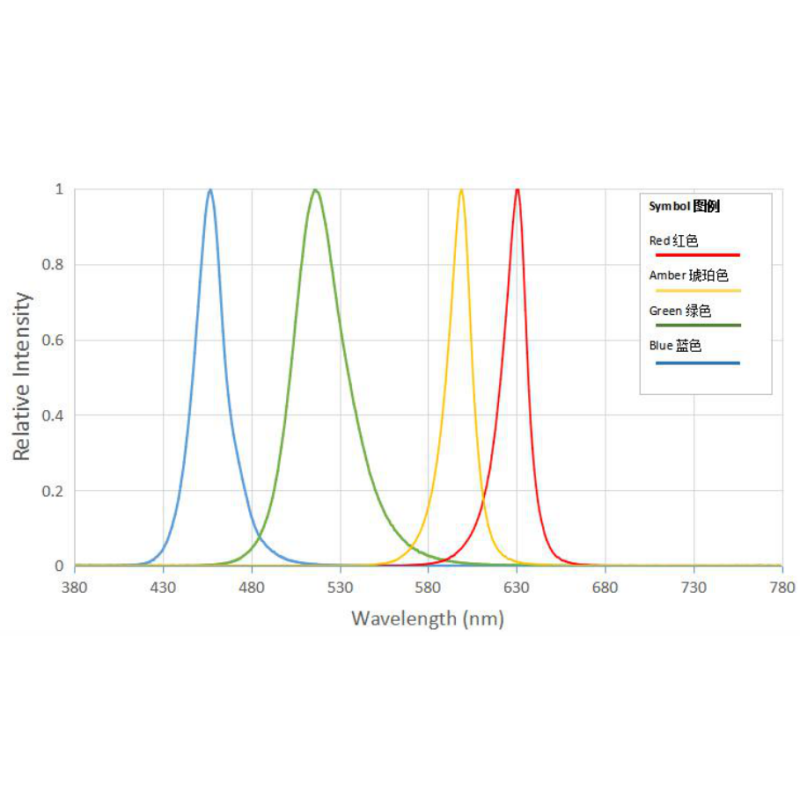

Spectral Distribution
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity

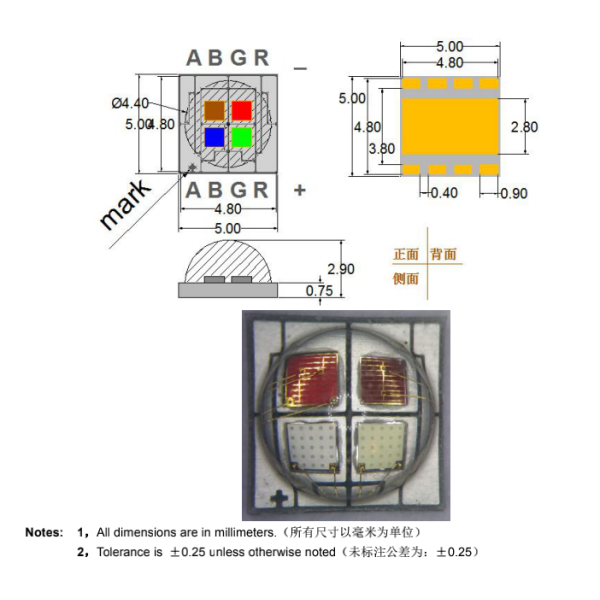

Product Dimensions & Design
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity

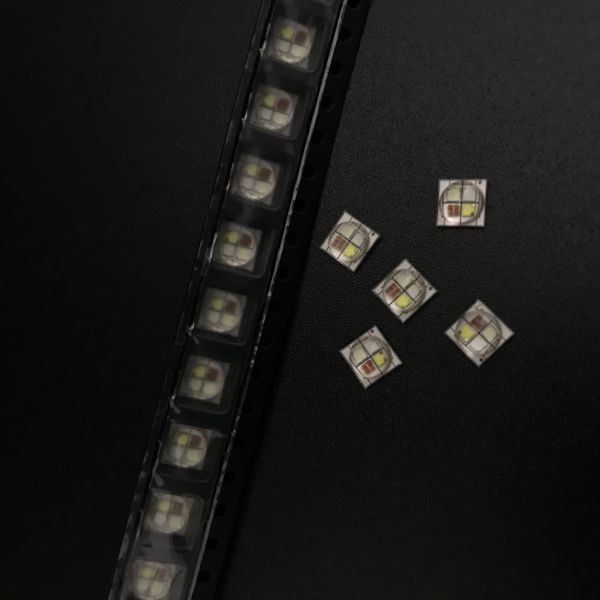

Packaging & Shipping
10W 5050 700mA Ceramic LED Diode High Power RGB Amber LED with High Thermal Conductivity
Handling & Installation Instructions
Important: Must use constant current driver for optimal performance and longevity.
  1. Storage: Store in dry cabinets at 25℃±3℃ with humidity between 40-60% to prevent moisture damage.
  2. Post-Unpacking Handling:
    • Components exposed to air after opening packaging must not exceed 72 hours
    • Unused products should be stored at 25℃±3℃ with 40-60% humidity
    • Recommended hand welding method as lenses are not heat-resistant
  3. Assembly Precautions: Avoid mechanical pressure and strong vibrations during cooling after soldering.
  4. Cooling Process: Fast cooling methods are strictly prohibited.
  5. PCB Requirements: Do not weld on deformed or irregular PCBs.
  6. Contaminant Avoidance: Protect from water, oil, and organic solvents.
  7. Thermal Management: Consider current requirements when operating at maximum temperatures.
  8. Product Specifications: Appearance and dimensions subject to change without notice.
  9. Electrostatic Protection: Use wrist straps or anti-static gloves; ensure all equipment and workstations are properly grounded.
