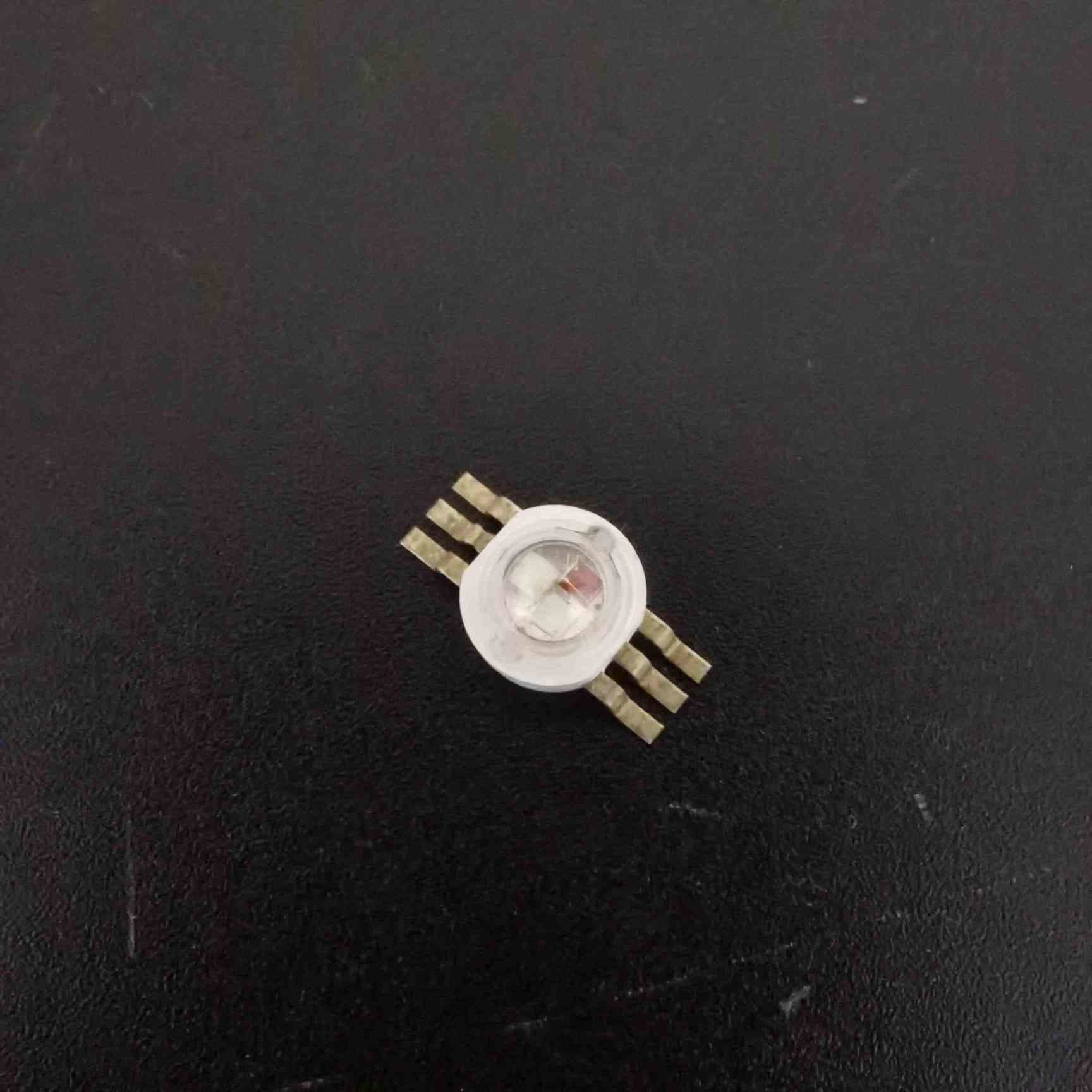

3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
Sunshineopto
Certification :
RoHS,CE,SGS
Model Number :
SP3WRGB
MOQ :
10
Price :
Need to negotiate
Packaging Details :
cartons
Delivery Time :
7-10 work days
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
1000pcs/ week
Product Name :
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
Led Size :
14.68x5.2mm
PCB Size :
diameter of 20mm
Voltage :
R 2.2-2.8V /G 3.0-3.6V/B 3.0-3.6V
Current :
R 400mA/G 350mA/B 350mA
Beam Angle :
120 degree
Description
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
Professional-grade RGB LED featuring star PCB design and integrated optical lens for superior lighting performance.
Quick details

The 3W RGB High Power LED Light Emitting Diode (LED) with a 120-degree beam angle and star design is a versatile and high-performance solution for dynamic and colorful lighting applications. This LED is engineered to provide bright, vivid colors with high efficiency, making it perfect for commercial, industrial, and entertainment lighting systems. Whether used in architectural lighting, event lighting, stage lighting, or decorative lighting, the 3W RGB LED ensures color accuracy, energy efficiency, and long-lasting durability.With its 120-degree beam angle and star design, the 3W RGB LED offers wide coverage, making it an ideal choice for large-scale lighting installations. This product is designed for customers in the lighting industry who need affordable, customizable, and high-quality LED lighting solutions. The RGB functionality allows for a wide spectrum of colors, providing flexibility in creating dynamic light effects.

Technical Specifications

Product Name 3W Colorful RGB High Power LED PCB Board
Model No. SP3WRGB
Power 3W
color Red, Green, Blue (RGB)
LED Diode Size 14.68×5.2mm
Beam Angle 120 Degree
Voltage R 2.2-2.8V / G 3.0-3.6V / B 3.0-3.6V
Current R 400mA / G 350mA / B 350mA
Wavelength R 620-630nm / G 520-530nm / B 460-470nm
Luminous Flux R 40-50LM / G 50-60LM / B 15-25LM
Parameter Symbol value Min. Typ. Max. Unit Test Condition
Luminous Intensity Φ/R
40 ~ 50 lm IF = 400mA
Φ/G
50 ~ 60 lm IF = 350mA
Φ/B
15 ~ 25 lm IF = 350mA
Viewing Angle 2θ1/2
115 120 125 deg IF = 400/350mA
Spectral Line Half-Width WLD/R
620 650 630 nm IF = 400mA
WLD/G
520 525 530 nm IF = 350mA
WLD/B
460 465 470 nm IF = 350mA
Forward Voltage VF/R
2.2 ~ 2.8 V IF = 400mA
VF/G
3 ~ 3.6 V IF = 350mA
VF/B
3 ~ 3.6 V IF = 350mA
Reverse Current IR
- - 20 μA VR = 5V
Forward Current IF R400/BG350


mA
Power Dissipation PD 3


W
Junction Temperature Tj 120


℃
Operating Temperature Topr -30 ~ +85


℃
Storage Temperature Tstg -40 ~ +120


℃
ESD Sensitivity ~ ±2,000V HBM


~
PCB Board Size Drawing
3W RGB High Power LED Light Emitting Diode with 120 Degree Beam Angle and Star Design
Shipping & Delivery Options
DHL/UPS/TNT/FEDEX 4-5 working days
EMS 10-15 working days
HK Post Air Mail Register 15-18 working days
Trade Terms FOB/EXW/CIF/CFR
Sample Availability YES
Standard Delivery Time 3-4 working days
Applications
  • General Illumination
  • Outdoor & Indoor Architectural Lighting
  • Decorative Lighting
  • Torch Lighting
  • Portable Lighting
  • Reading Lighting
  • Traffic Signaling
